Broadcom 1-Channel Isolation Amplifier, 8-Pin 5.5 V SO

RS 제품 번호:: 174-4175
제조사 부품 번호:: ACPL-C79A-500E
제조업체:: Broadcom

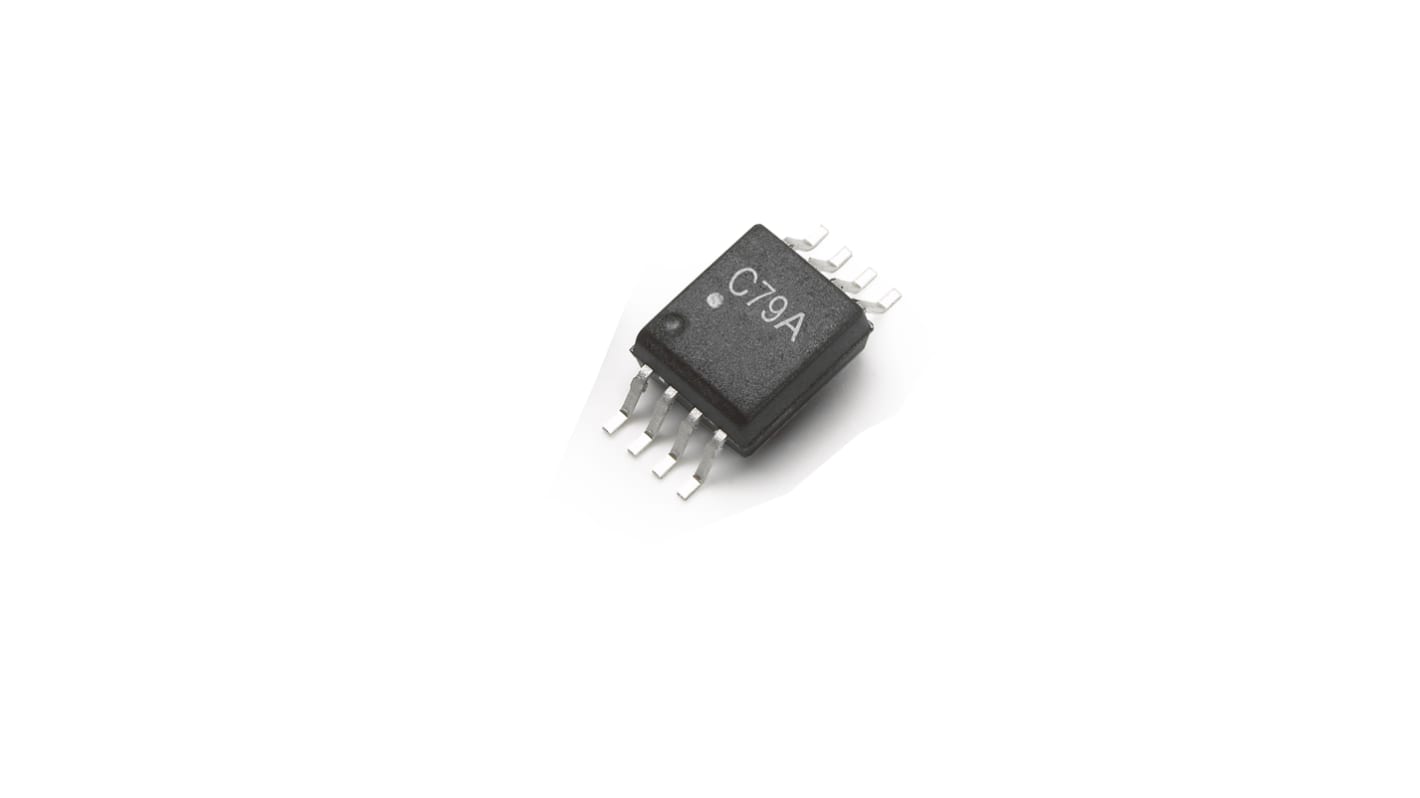

Broadcom 1-Channel Isolation Amplifier, 8-Pin 5.5 V SO

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 pack of 2 units)*

₩22,578.80

재고있음

366 개 단위 배송 준비 완료
추가로 2026년 2월 16일 부터 186 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	한팩당*
2 - 248	₩11,289.40	₩22,578.80
250 - 498	₩11,035.60	₩22,071.20
500 +	₩10,810.00	₩21,620.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 174-4175
제조사 부품 번호:: ACPL-C79A-500E
제조업체:: Broadcom

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Broadcom
	Product Type	Isolation Amplifier
	Maximum Supply Voltage	5.5V
	Minimum Supply Voltage	4.5V
	Number of Channels	1
	Mount Type	Surface
	Package Type	SO
	Pin Count	8
	Isolation Voltage	5000Vrms
	Minimum Operating Temperature	-40°C
	Isolation Type	Precision Miniature Isolation Amplifiers
	Vos - Input Offset Voltage	2 mV
	Maximum Operating Temperature	105°C
	Width	6.81 mm
	Length	5.85mm
	Series	ACPL-C79A
	Standards/Approvals	No
	Height	3.18mm
	Automotive Standard	No

	모두 선택
	브랜드 Broadcom
	Product Type Isolation Amplifier
	Maximum Supply Voltage 5.5V
	Minimum Supply Voltage 4.5V
	Number of Channels 1
	Mount Type Surface
	Package Type SO
	Pin Count 8
	Isolation Voltage 5000Vrms
	Minimum Operating Temperature -40°C
	Isolation Type Precision Miniature Isolation Amplifiers
	Vos - Input Offset Voltage 2 mV
	Maximum Operating Temperature 105°C
	Width 6.81 mm
	Length 5.85mm
	Series ACPL-C79A
	Standards/Approvals No
	Height 3.18mm
	Automotive Standard No

Datasheet

The Broadcom ACPL-C79A isolation amplifiers were designed for current sensing and voltage sensing in electronic power converters in applications including motor drives and renewable energy systems. In a typical motor drive implementation, current flows through an external resistor and the resulting analog voltage drop is sensed by the isolation amplifier. A differential output voltage that is proportional to the current is created on the other side of the optical isolation barrier.

0.5% High Gain Accuracy (ACPL-C79B only)

–50 ppm/°C Low Gain Drift

0.6 mV Input Offset Voltage

0.05% Excellent Linearity

60 dB SNR

200 kHz Wide Bandwidth

3 V to 5.5 V Wide Supply Range for Output Side

–40°C to +105°C Operating Temperature Range

Advanced Sigma-Delta A/D Converter Technology

Fully Differential Isolation Amplifier

15 kV/μs Common-Mode Transient Immunity

Compact, Auto-Insert able Stretched SO-8 Package

Broadcom 1-Channel Isolation Amplifier, 8-Pin 5.5 V SO
