TFBS4711-TR3 Vishay, Infrared Transceiver ±24° IrDA, 900 nm 115.2 kbps, 1 m Range, Surface Mount 3 mm 6 mm 1.9 mm
- RS 제품 번호:
- 230-8358P
- 제조사 부품 번호:
- TFBS4711-TR3
- 제조업체:
- Vishay

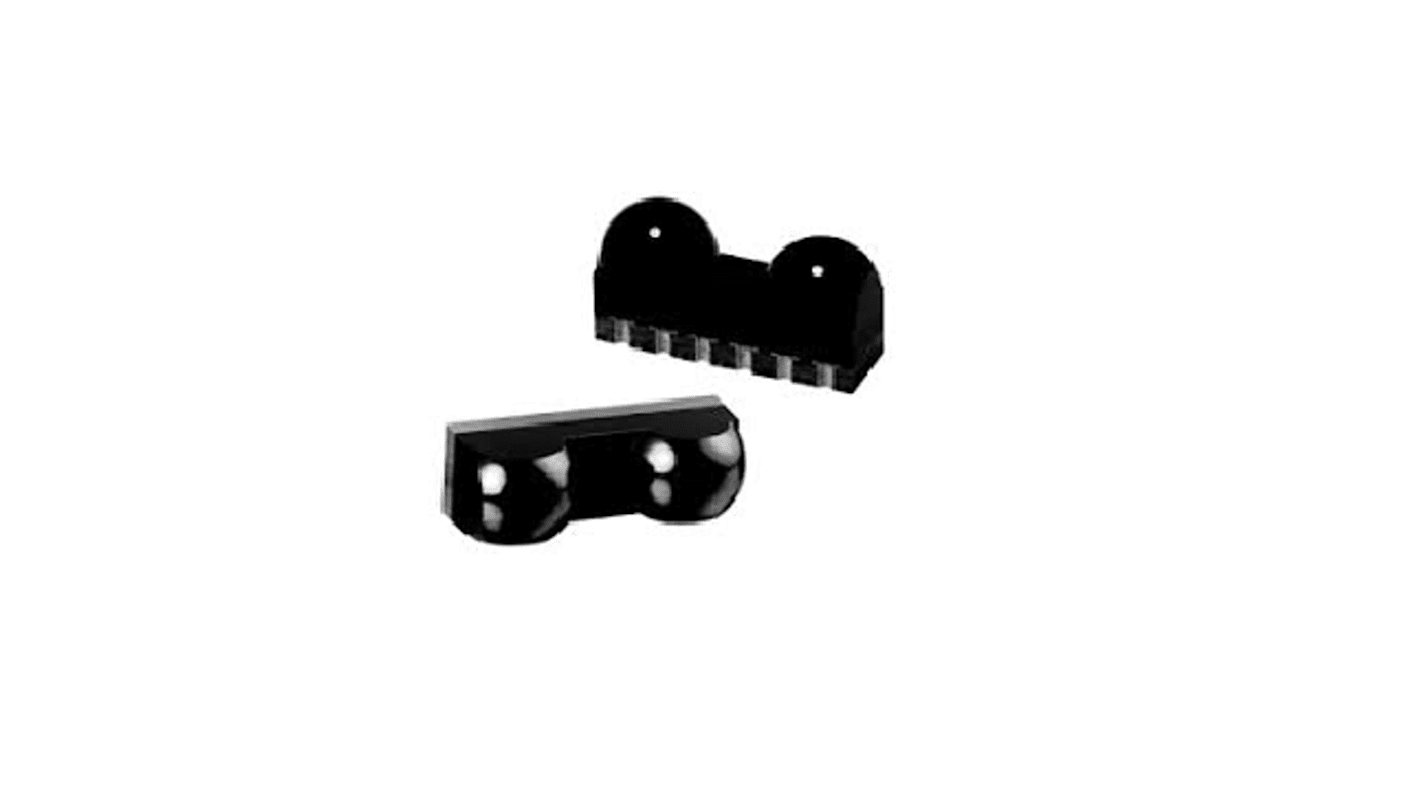

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal 50 units (supplied on a continuous strip)*
₩305,030.00
마지막 RS 재고
- 최종적인 3,480 개 unit(s)이 배송 준비 됨
수량 | 한팩당 |
|---|---|
| 50 - 98 | ₩6,100.60 |
| 100 - 248 | ₩5,987.80 |
| 250 - 998 | ₩5,875.00 |
| 1000 + | ₩5,771.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 230-8358P
- 제조사 부품 번호:
- TFBS4711-TR3
- 제조업체:
- Vishay
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Vishay | |
| Maximum Transmission Distance | 1m | |
| Product Type | Infrared Transceiver | |
| Emitter Peak Wavelength | 900nm | |
| Maximum Data Receiving Rate | 115.2kbps | |
| Packaging | Tape & Reel | |
| Mount Type | Surface Mount | |
| Number of Pins | 6 | |
| Minimum Supply Voltage | -0.5V | |
| Maximum Supply Voltage | 6V | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 85°C | |
| Length | 6mm | |
| Width | 1.9 mm | |
| Height | 3mm | |
| Standards/Approvals | RoHS | |
| Emitter Angle of Half Intensity | ±24° | |
| IrDA Compliance | IrDA | |
| Automotive Standard | No | |
| Supply Current | 0.07mA | |
| 모두 선택 | ||
|---|---|---|
브랜드 Vishay | ||
Maximum Transmission Distance 1m | ||
Product Type Infrared Transceiver | ||
Emitter Peak Wavelength 900nm | ||
Maximum Data Receiving Rate 115.2kbps | ||
Packaging Tape & Reel | ||
Mount Type Surface Mount | ||
Number of Pins 6 | ||
Minimum Supply Voltage -0.5V | ||
Maximum Supply Voltage 6V | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 85°C | ||
Length 6mm | ||
Width 1.9 mm | ||
Height 3mm | ||
Standards/Approvals RoHS | ||
Emitter Angle of Half Intensity ±24° | ||
IrDA Compliance IrDA | ||
Automotive Standard No | ||
Supply Current 0.07mA | ||
The Vishay serial infrared transceiver supports IrDA data rates up to 115.2 Kbit/s. The transceiver module consists of a PIN photodiode, an infrared emitter (IRED), and a low-power CMOS control IC to provide a total front-end solution in a single package. The device is designed for the low power IrDA standard with an extended range on-axis up to 1 m. The RXD output pulse width is independent of the optical input pulse width and stays always at a fixed pulse width thus making the device optimum for standard endecs.
Qualified for lead (Pb)-free and Sn/Pb processing (MSL4)
It is compliant to RoHS directives
