Vishay, Infrared Transceiver 15 ° IrDA, 886 nm 115 kbps, 50 cm Range 115 kbps, Surface Mount 1.6 mm 6.8 mm 2.8 mm
- RS 제품 번호:
- 230-8355
- 제조사 부품 번호:
- TFBS4652-TT1
- 제조업체:
- Vishay

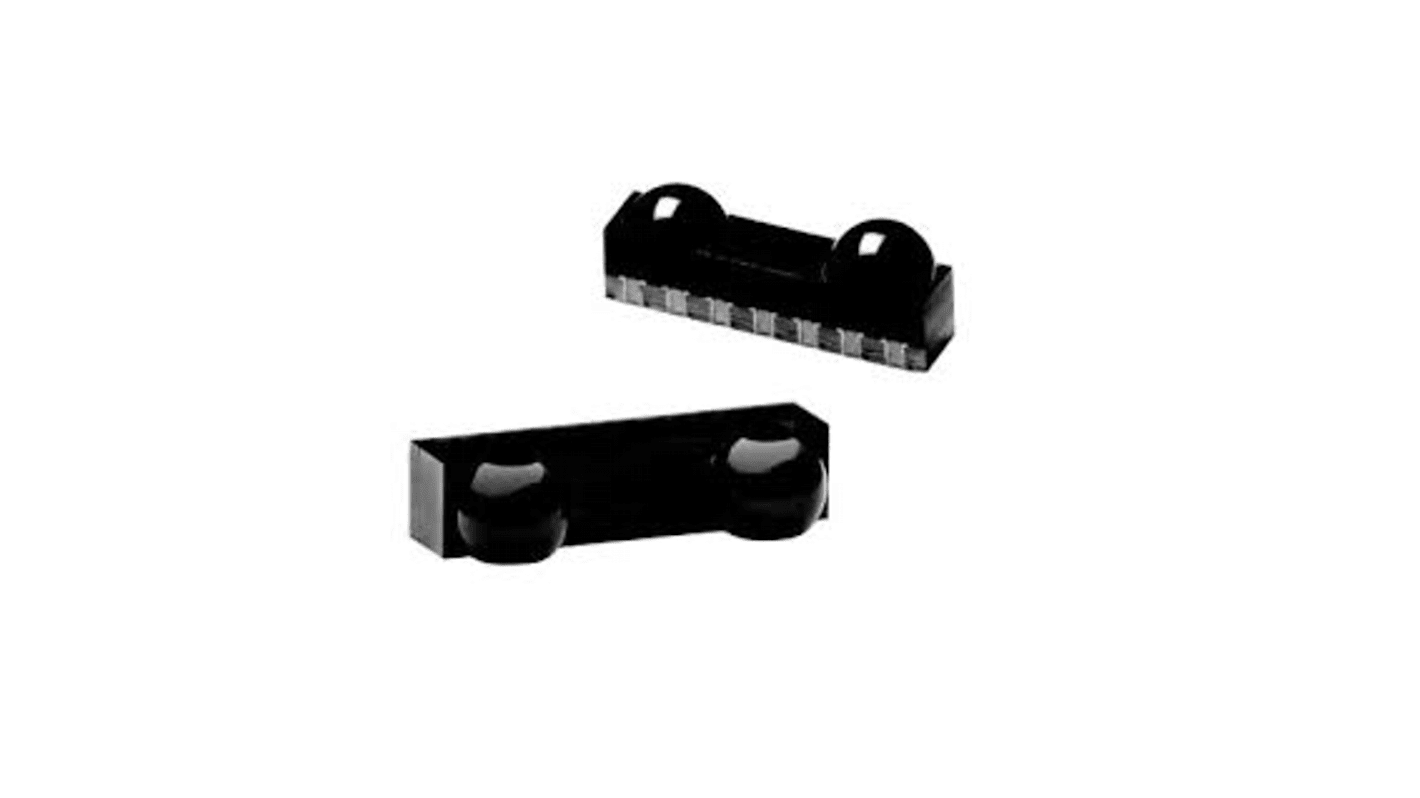

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 reel of 1000 units)*
₩3,989,360.00
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 | 릴당* |
|---|---|---|
| 1000 - 4000 | ₩3,989.36 | ₩3,988,420.00 |
| 5000 + | ₩3,908.52 | ₩3,908,708.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 230-8355
- 제조사 부품 번호:
- TFBS4652-TT1
- 제조업체:
- Vishay
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Vishay | |
| Maximum Transmission Distance | 50cm | |
| Product Type | Infrared Transceiver | |
| Emitter Peak Wavelength | 886nm | |
| Packaging | Tape & Reel | |
| Maximum Data Receiving Rate | 115kbps | |
| Mount Type | Surface Mount | |
| Number of Pins | 7 | |
| Minimum Supply Voltage | -0.5V | |
| Maximum Supply Voltage | 6V | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Length | 6.8mm | |
| Height | 1.6mm | |
| Width | 2.8 mm | |
| Emitter Angle of Half Intensity | 15 ° | |
| Series | TFBS4652 | |
| Automotive Standard | No | |
| Maximum Data Transmission Rate | 115kbps | |
| Supply Current | 0.08mA | |
| IrDA Compliance | IrDA | |
| 모두 선택 | ||
|---|---|---|
브랜드 Vishay | ||
Maximum Transmission Distance 50cm | ||
Product Type Infrared Transceiver | ||
Emitter Peak Wavelength 886nm | ||
Packaging Tape & Reel | ||
Maximum Data Receiving Rate 115kbps | ||
Mount Type Surface Mount | ||
Number of Pins 7 | ||
Minimum Supply Voltage -0.5V | ||
Maximum Supply Voltage 6V | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Length 6.8mm | ||
Height 1.6mm | ||
Width 2.8 mm | ||
Emitter Angle of Half Intensity 15 ° | ||
Series TFBS4652 | ||
Automotive Standard No | ||
Maximum Data Transmission Rate 115kbps | ||
Supply Current 0.08mA | ||
IrDA Compliance IrDA | ||
The Vishay infrared transceiver is one of the smallest IrDA compliant transceivers available. It supports data rates up to 115 Kbit/s. The transceiver consists of a PIN photodiode, infrared emitter, and control IC in a single package. It has low current consumption of 75 μA idle at 3.6 V.
It is adjustable to logic I/O voltage swing from 1.5 V to 5.5 V
It is compliant to RoHS directive and lead free
