OPB100Z Optek, Infrared Transceiver 25 °, 880 nm, 36 in Range 0.34 mm 0.8 mm 0.32mm

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 IR Transceivers 열람하기
대량 구매 할인 기용 가능
View bulk pricing options

Subtotal (1 Bag of 78 units)*

₩1,266,384.60

Add to Basket
수량 선택 또는 입력
재고있음
  • 390 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량
한팩당
Per Bag*
78 - 78₩16,235.70₩1,266,415.80
156 - 234₩15,912.00₩1,241,091.15
312 +₩15,592.20₩1,216,267.65

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
173-0306
제조사 부품 번호:
OPB100Z
제조업체:
Optek
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Optek

Product Type

Infrared Transceiver

Maximum Transmission Distance

36in

Emitter Peak Wavelength

880nm

Packaging

24 in Wire Leads

Number of Pins

4

Package Type

Low Profile

Maximum Supply Voltage

1.7V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

80°C

Length

0.8mm

Height

0.34mm

Standards/Approvals

RoHS

Width

0.32mm

Emitter Angle of Half Intensity

25 °

Supply Current

100mA

Automotive Standard

No

Series

OPB100Z

COO (Country of Origin):
MX

OPB100 Series Optical Emitter and Sensor Pairs

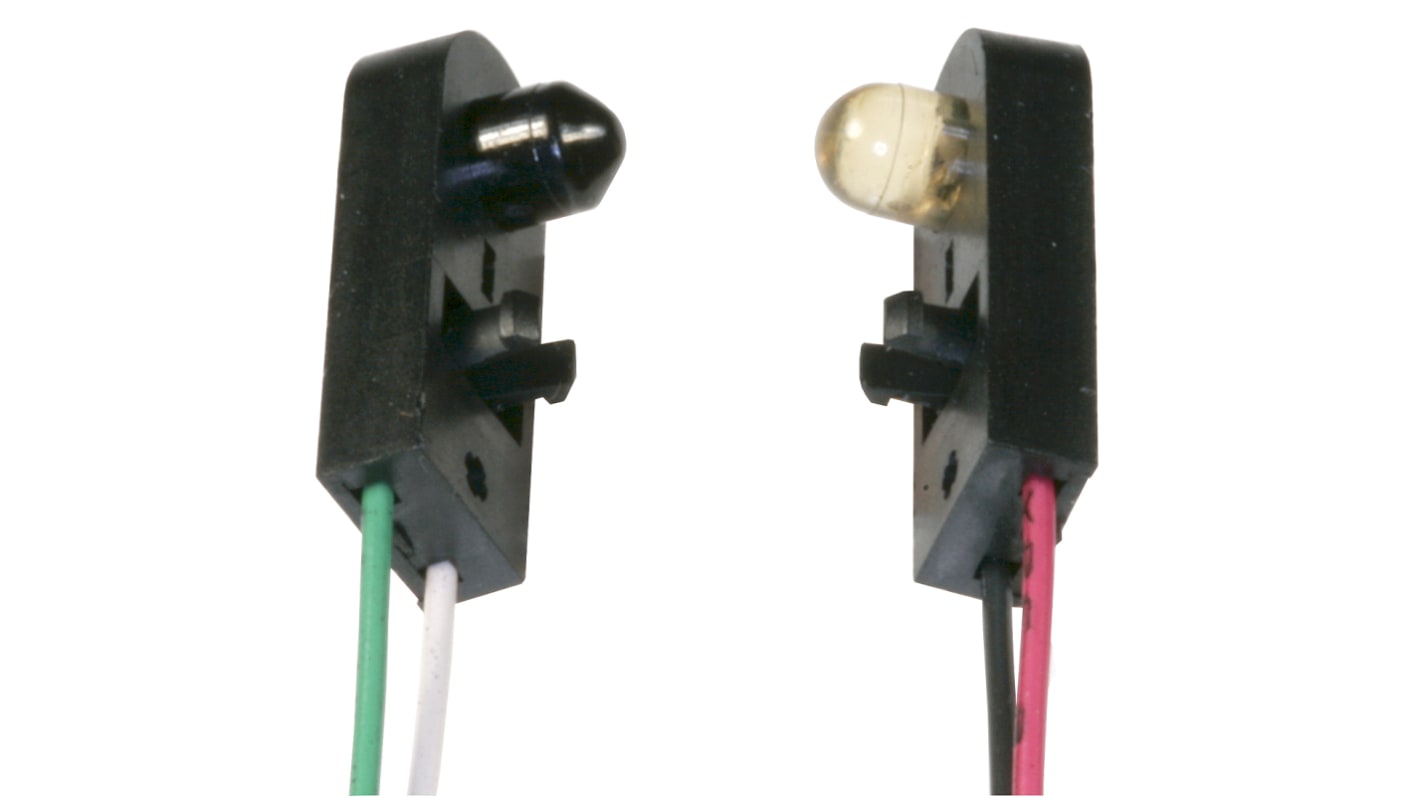

The OPB100 series, from Optek Technology, consist of optical emitters and sensors. The IR LED and the phototransistor come in separate plastic housings and can be purchased individually or together (OPB100Z). Their snap-in package design enables easy installation without any need for additional mounting hardware.

The emitter and sensor do not require precise alignment due to no aperture. They are designed for general switching and low speed data communication applications, for example; non-contact reflective objects, non-contact interruptive sensing, assembly line automation, machine automation and machine safety.

OPB100-EZ: IR LED

OPB100-SZ: Phototransistor

OPB100Z: Contains both OPB100-EZ and OPB100-SZ

Infrared (IR) Transceivers, Optek
