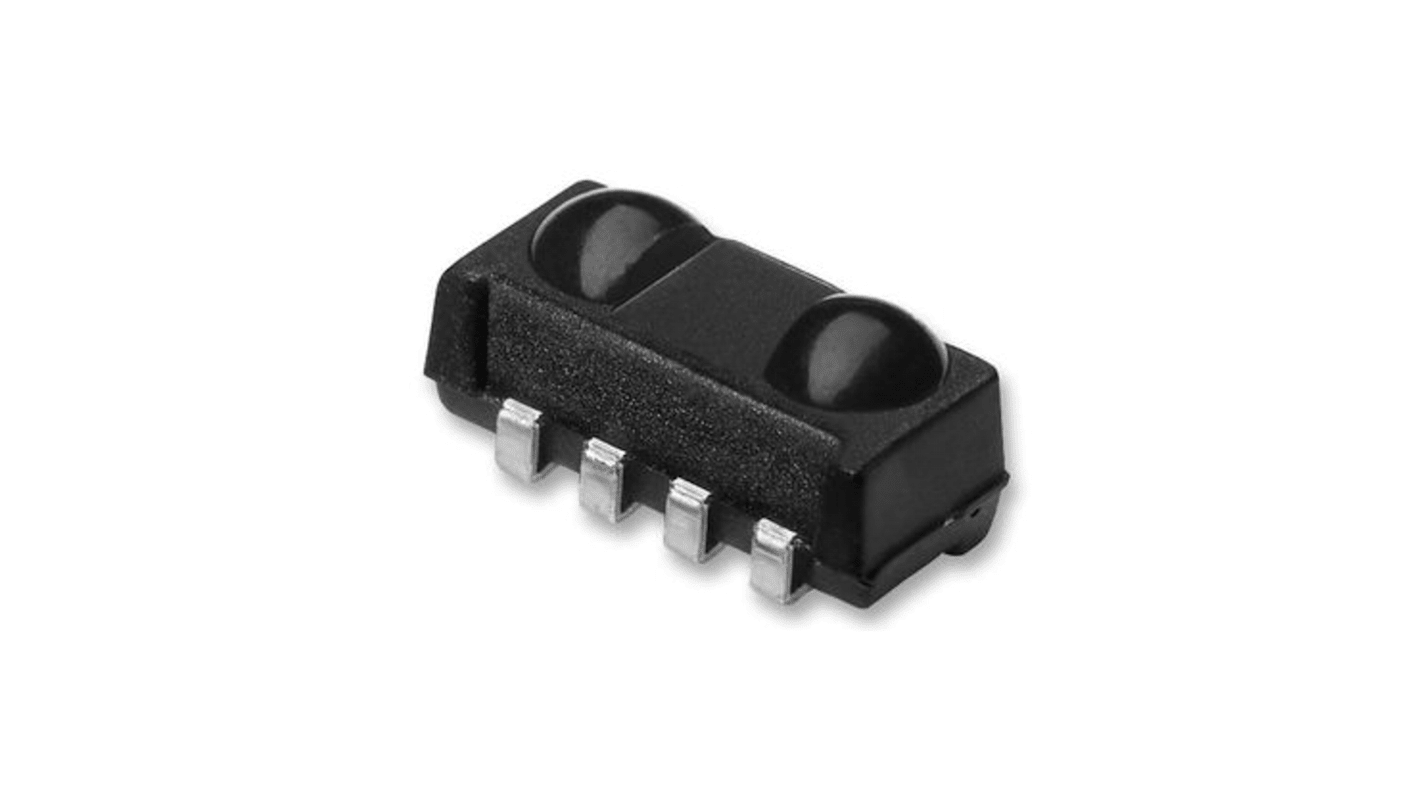

Vishay TSOP75238TR, 38kHz IR Receiver, 950nm 45 deg, 24m Range, 2.5 V - 5.5V, SMT, 6.8 x 3.0 x 3.2mm
- RS 제품 번호:
- 180-8017
- 제조사 부품 번호:
- TSOP75238TR
- 제조업체:
- Vishay
일시 품절-다음 입고 날짜는 30/12/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당가격(10개가 1팩안에)
₩1,598.982
수량 | 한팩당 | 한팩당* |
10 - 570 | ₩1,598.982 | ₩15,996.723 |
580 - 1140 | ₩1,564.484 | ₩15,644.843 |
1150 + | ₩1,531.711 | ₩15,308.488 |
*다른 단위에 대한 가격 표시 |
- RS 제품 번호:
- 180-8017
- 제조사 부품 번호:
- TSOP75238TR
- 제조업체:
- Vishay
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- PH
제품 세부 사항
The Vishay TSOP75 series are miniaturized SMD IR receiver module for infrared remote control systems. Two pin diode and a preamplifier are assembled on lead frame, the epoxy package contains an IR filter. The demodulated output signal can be directly connected to a microprocessor for decoding and the device are optimized to suppress almost all spurious pulses energy saving lamps like CFLs.
Very low supply current
Photo detector and preamplifier in one package
Internal filter for PCM frequency
Photo detector and preamplifier in one package
Internal filter for PCM frequency
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
---|---|
Carrier Frequency | 38kHz |
Maximum Transmission Distance | 24m |
Angle of Half Transmission Distance | 45 deg |
Wavelength of Peak Sensitivity | 950nm |
Daylight Filter Type | Epoxy Package |
Mounting Type | Surface Mount |
Dimensions | 6.8 x 3.0 x 3.2mm |
Maximum Supply Voltage | 5.5V |
Minimum Supply Voltage | 2.5V |
