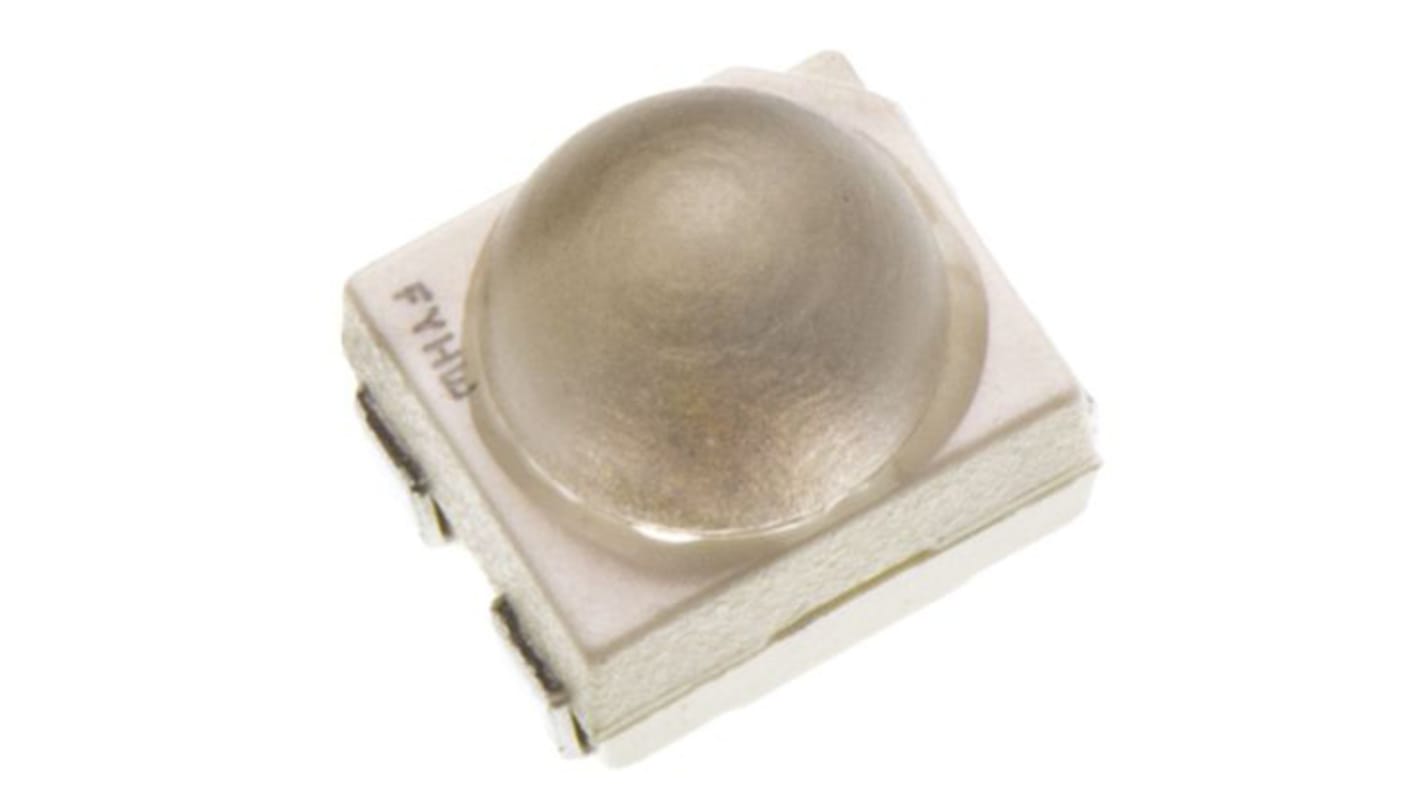

ams OSRAM SFH 4259 860 nm IR LED PLCC 2 Surface Mount package
- RS 제품 번호:
- 912-8302
- 제조사 부품 번호:
- SFH 4259
- 제조업체:
- ams OSRAM
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
사용할 수 없음
RS는 더 이상 이 제품을 입고하지 않습니다.
- RS 제품 번호:
- 912-8302
- 제조사 부품 번호:
- SFH 4259
- 제조업체:
- ams OSRAM
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | ams OSRAM | |
| Peak Wavelength | 860nm | |
| Product Type | IR LED | |
| Package Type | PLCC 2 | |
| Radiant Flux | 70mW | |
| Packaging | Tape & Reel | |
| Radiant Intensity | 55mW/sr | |
| Mount Type | Surface Mount | |
| Angle of Half Intensity | 25° | |
| Number of LEDs | 1 | |
| Number of Pins | 4 | |
| Lens Shape | Dome | |
| Series | SFH 4259 | |
| Standards/Approvals | IEC 60825-1 and IEC 62471 | |
| Maximum Supply Voltage | 2.4V | |
| Automotive Standard | AEC-Q100 Rev C | |
| 모두 선택 | ||
|---|---|---|
브랜드 ams OSRAM | ||
Peak Wavelength 860nm | ||
Product Type IR LED | ||
Package Type PLCC 2 | ||
Radiant Flux 70mW | ||
Packaging Tape & Reel | ||
Radiant Intensity 55mW/sr | ||
Mount Type Surface Mount | ||
Angle of Half Intensity 25° | ||
Number of LEDs 1 | ||
Number of Pins 4 | ||
Lens Shape Dome | ||
Series SFH 4259 | ||
Standards/Approvals IEC 60825-1 and IEC 62471 | ||
Maximum Supply Voltage 2.4V | ||
Automotive Standard AEC-Q100 Rev C | ||
OSRAM Power TOPLED Series IR LEDs - 850/860nm
The Power TOPLED family, from OSRAM Opto Semiconductors, are surface mount (SMT) Infrared (IR) emitting LEDs. They are available in both flat top and dome lens types. The Power TOPLED family are high power IR LEDs with short switching times. Suitable applications include; IR illumination for cameras (CCTV), IR data transmission and sensor technology.
Features of the Power TOPLED IR LEDs:
Surface mount (SMT)
PLCC-4 package
Dimensions: 3 x 3.4 mm
Variety of lens types: flat top and dome
Wavelength: 850nm or 860nm
