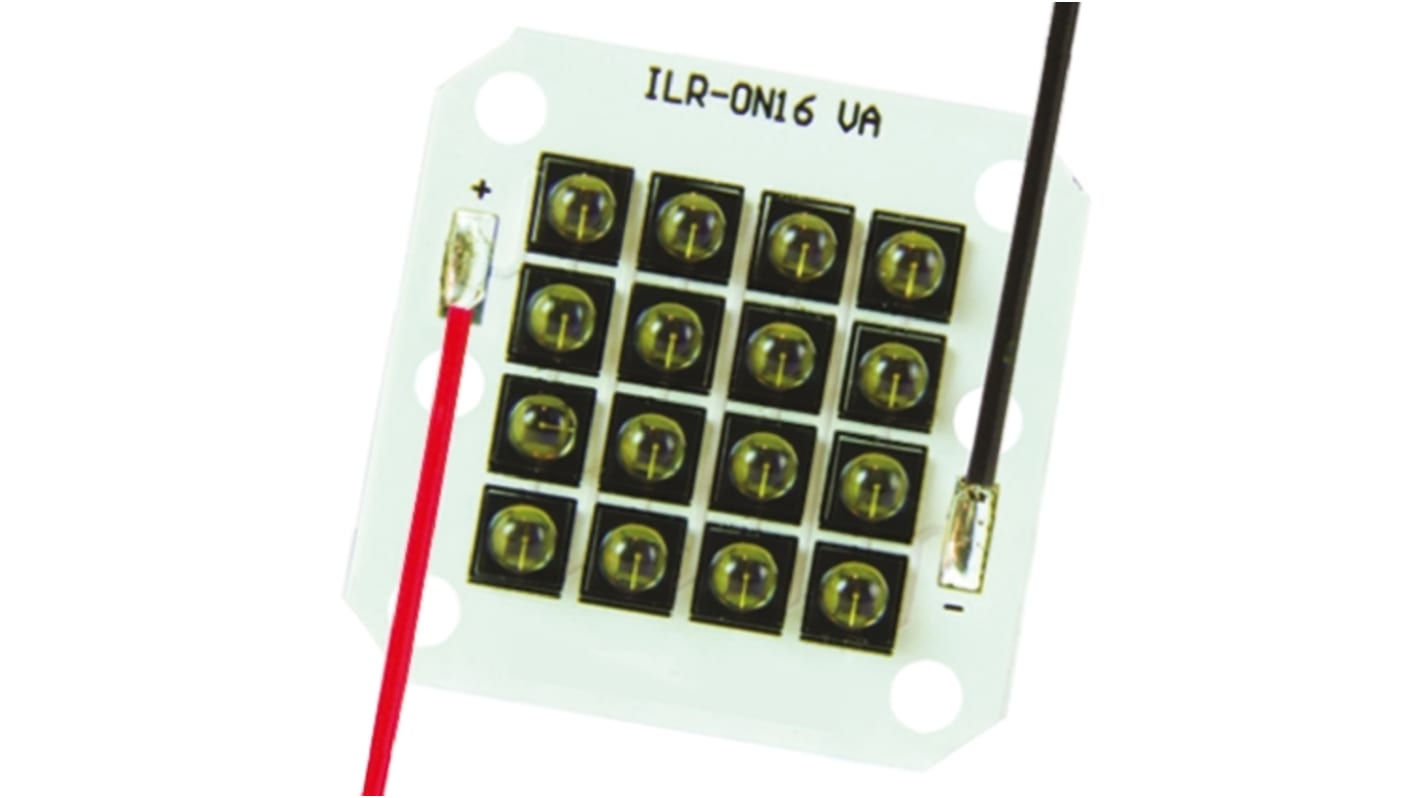

ILR-IO16-85NL-SC201-WIR200. Intelligent LED Solutions OSLON Black PowerCluster 940 nm IR Cluster LED Lamp PCB Surface

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 IR LEDs 열람하기

Subtotal (1 unit)*

₩223,494.40

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2026년 4월 15일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩223,494.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
773-2912
제조사 부품 번호:
ILR-IO16-85NL-SC201-WIR200.
제조업체:
Intelligent LED Solutions
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Intelligent LED Solutions

Product Type

IR Cluster LED Lamp

Peak Wavelength

940nm

Package Type

PCB

Radiant Intensity

9600mW

Mount Type

Surface

Angle of Half Intensity

75°

Number of LEDs

16

Number of Pins

2

Lens Shape

Dome

Series

OSLON Black PowerCluster

Standards/Approvals

CE

Maximum Supply Voltage

51.2V

Automotive Standard

No

PowerCluster IR LED Arrays - IR OSLON Black 16


The Oslon 16 PowerCluster IR series of infrared LED arrays, from Intelligent LED solutions, feature 16 Osram IR Oslon Black IR LEDs. Powerful and compact, PowerCluster IR LED arrays are built on aluminium substrates for optimal thermal management and come pre-wired with 200mm wires as standard. Oslon 9 PowerCluster IR LED arrays are ideal for a wide range of applications including: surveillance systems, IR illumination for cameras, machine vision, night vision light and driver assistance systems.

Oslon 16 PowerCluster IR LED arrays contain 16 Osram IR Oslon Black series LEDs

Current range: 100 to 1,000mA

Lifetime: Up to 100,000 hours to 70% of original brightness

Mounting holes for M3 screws allow easy installation

PowerCluster size (L x W x H): 30x30x4mm

Pre-wired with 200mm connecting wires

PowerClusters can be linked together to produce longer chains

See datasheet for suitable heat sinks, constant current LED drivers and thermal interface material

Intelligent LED Solutions (ILS) IR LED Arrays


Warning

PowerCluster IR LED arrays will overheat in operation if not attached to a suitable heat sink, over heating can cause failure or irreparable damage.
Do not operate PowerCluster LED arrays with a power supply with unlimited current. Connection to constant voltage power supplies that are not current limited may cause the PowerCluster LED array to consume current above the specified maximum and cause failure or irreparable damage.

Caution

Depending on the mode of operation, these devices emit highly concentrated non visible infrared light which can be hazardous to the human eye.
