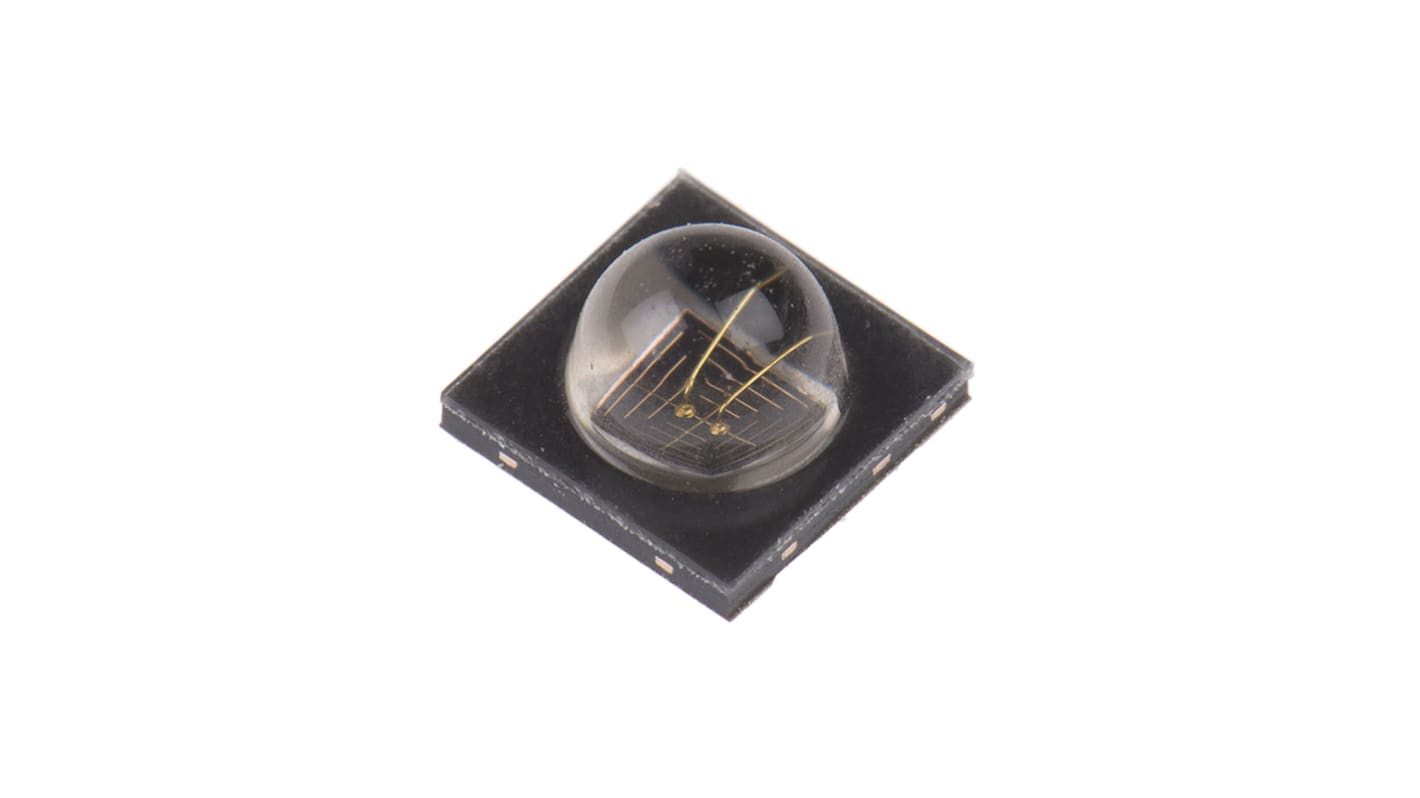

VSMY98545 Vishay, Surflight 850nm High Power IR Emitting Diode, SMD package
- RS 제품 번호:
- 165-6277
- 제조사 부품 번호:
- VSMY98545
- 제조업체:
- Vishay
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 reel of 600 units)*
₩2,364,288.00
일시적 품절
- 2026년 3월 26일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 릴당* |
|---|---|---|
| 600 - 600 | ₩3,940.48 | ₩2,364,513.60 |
| 1200 - 1800 | ₩3,861.52 | ₩2,317,137.60 |
| 2400 + | ₩3,746.84 | ₩2,247,652.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 165-6277
- 제조사 부품 번호:
- VSMY98545
- 제조업체:
- Vishay
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Vishay | |
| Peak Wavelength | 850nm | |
| Radiant Flux | 660mW | |
| Radiant Intensity | 1600mW/sr | |
| Mounting Type | Surface Mount | |
| Angle of Half Intensity | ±45° | |
| Number of LEDs | 1 | |
| Number of Pins | 3 | |
| Dimensions | 3.85 x 3.85 x 2.24mm | |
| Lens Shape | Dome | |
| Series | Surflight | |
| 모두 선택 | ||
|---|---|---|
브랜드 Vishay | ||
Peak Wavelength 850nm | ||
Radiant Flux 660mW | ||
Radiant Intensity 1600mW/sr | ||
Mounting Type Surface Mount | ||
Angle of Half Intensity ±45° | ||
Number of LEDs 1 | ||
Number of Pins 3 | ||
Dimensions 3.85 x 3.85 x 2.24mm | ||
Lens Shape Dome | ||
Series Surflight | ||
- COO (Country of Origin):
- CN
Vishay VSMY98545 Series IR Emitting Diodes
The VSMY98545 series, from Vishay Semiconductors, are high power IR emitting diodes. These surface mount (SMT) devices has a dome shaped moulded lens containing a 42 mil chip.
Suitable applications for the VSMY98545 series include; machine vision, camera illumination (3D gaming) and IR illumination for CMOS cameras.
Suitable applications for the VSMY98545 series include; machine vision, camera illumination (3D gaming) and IR illumination for CMOS cameras.
Features of the VSMY98545 series:
Dimensions: 3.85 x 3.85 x 2.24 mm
Peak wavelength: 850nm
High reliability
High radiant power
Beam angle: 90°
Dimensions: 3.85 x 3.85 x 2.24 mm
Peak wavelength: 850nm
High reliability
High radiant power
Beam angle: 90°
SurfLight™ Technology
SurfLight™ series, from Vishay Semiconductors, consists of high power Infrared (IR) emitters. Their SurfLight™ technology enables the majority of the light and power to be emitted directly through the top of the chip. Standard IR emitters send their light in all directions.
SurfLight™ technology therefore offers a higher intensity output of light. A higher intensity can reduce the number of emitters required for a design. This series also offers high speed with a high pulse current operation.
The reliable SurfLight™ IR LEDs are ideal for applications such as IR data transmission or communication, 3D TV glasses synchronisation, automotive, industrial and IR illumination for CCTV cameras.
SurfLight™ technology therefore offers a higher intensity output of light. A higher intensity can reduce the number of emitters required for a design. This series also offers high speed with a high pulse current operation.
The reliable SurfLight™ IR LEDs are ideal for applications such as IR data transmission or communication, 3D TV glasses synchronisation, automotive, industrial and IR illumination for CCTV cameras.
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
Infrared (IR) Light Emitters, Vishay
