Vishay 940 nm IR LED PLCC 2 Surface Mount package

RS 제품 번호:: 165-2969
제조사 부품 번호:: VSMB3940X01-GS08
제조업체:: Vishay

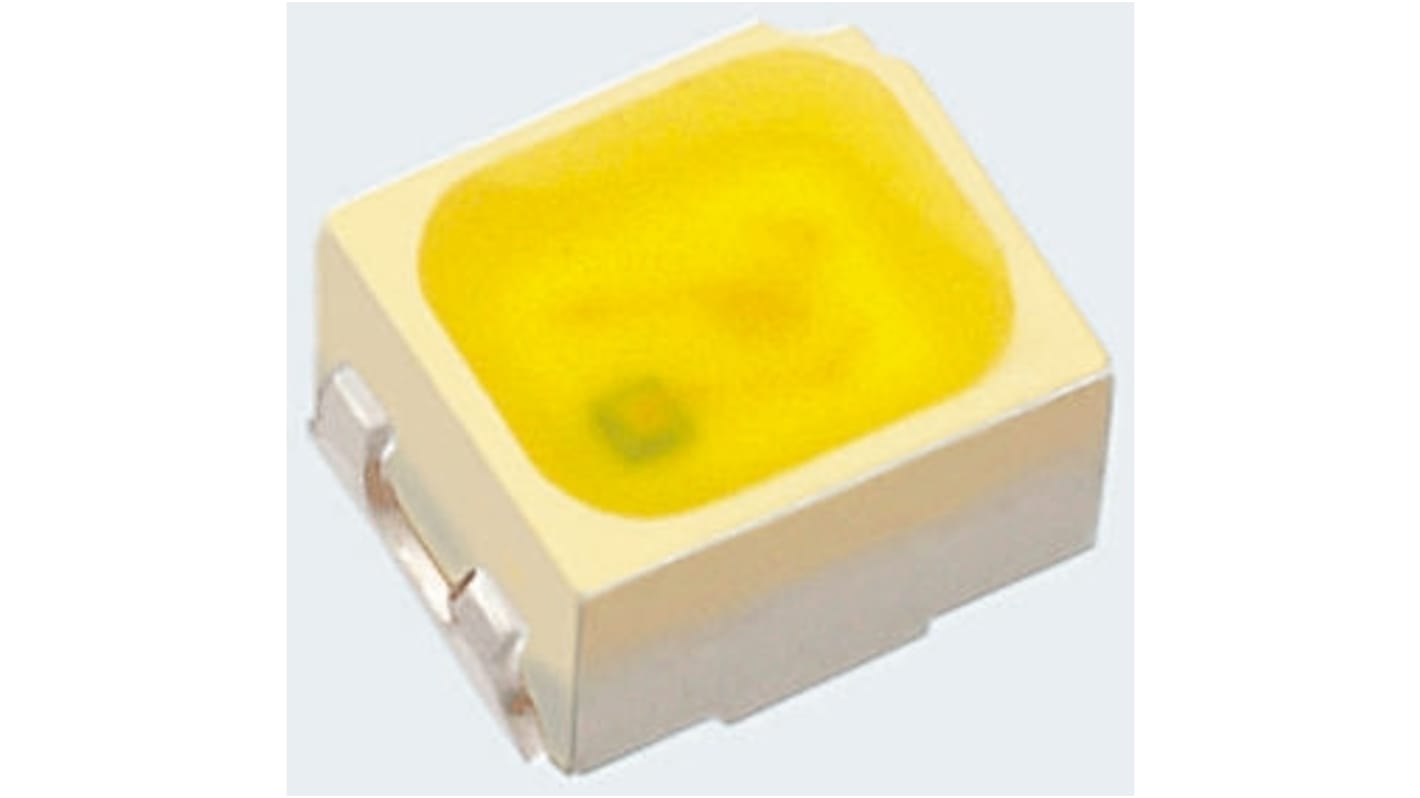

Vishay 940 nm IR LED PLCC 2 Surface Mount package

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

현재 비가용

RS는 이 제품을 더 이상 판매하지 않습니다.

RS 제품 번호:: 165-2969
제조사 부품 번호:: VSMB3940X01-GS08
제조업체:: Vishay

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Vishay
	Peak Wavelength	940nm
	Product Type	IR LED
	Package Type	PLCC 2
	Radiant Flux	40mW
	Packaging	Tape & Reel
	Radiant Intensity	13mW/sr
	Mount Type	Surface Mount
	Angle of Half Intensity	60°
	Number of LEDs	1
	Number of Pins	2
	Lens Shape	Round
	LED Material	GaAlAs
	Standards/Approvals	RoHS, Halogen Free, AEC-Q101, J-STD-020
	Maximum Supply Voltage	5V
	Automotive Standard	AEC-Q101

	모두 선택
	브랜드 Vishay
	Peak Wavelength 940nm
	Product Type IR LED
	Package Type PLCC 2
	Radiant Flux 40mW
	Packaging Tape & Reel
	Radiant Intensity 13mW/sr
	Mount Type Surface Mount
	Angle of Half Intensity 60°
	Number of LEDs 1
	Number of Pins 2
	Lens Shape Round
	LED Material GaAlAs
	Standards/Approvals RoHS, Halogen Free, AEC-Q101, J-STD-020
	Maximum Supply Voltage 5V
	Automotive Standard AEC-Q101

Datasheet

Vishay VSMB3940 Series IR Emitting Diodes

The VSMB3940 series, Vishay Semiconductors, are high speed Infrared (IR) emitting diodes. They have a surface mount (SMT) PLCC-2 package which uses double hetero (DH) technology. The VSMB3940 is Ideal for applications such as IrDA compatible data transmission, miniature light barriers, photointerrupters, optical switch, shaft encoders and control and drive circuits.

Features of the VSMB3940 IR LEDs:

PLCC-2 package

Dimensions: 3.5 x 2.8 x 1.75 mm

Peak wavelength: 940nm

High reliability

High radiant power

Beam angle: 120°

Low forward voltage
