ILR-IO12-94SL-SC201-WIR200. Intelligent LED Solutions ILR-IO12 940 nm IR LED Surface Mount package

모든 IR LEDs 열람하기
현재 비가용
죄송합니다. 언제 재입고될지 모릅니다.
RS 제품 번호:
150-1927
Distrelec 제품 번호:
302-04-820
제조사 부품 번호:
ILR-IO12-94SL-SC201-WIR200.
제조업체:
Intelligent LED Solutions
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Intelligent LED Solutions

Peak Wavelength

940nm

Product Type

IR LED

Mount Type

Surface Mount

Angle of Half Intensity

45°

Number of LEDs

12

Number of Pins

2

Lens Shape

Rectangular

Series

ILR-IO12

Maximum Supply Voltage

33V

COO (Country of Origin):
GB

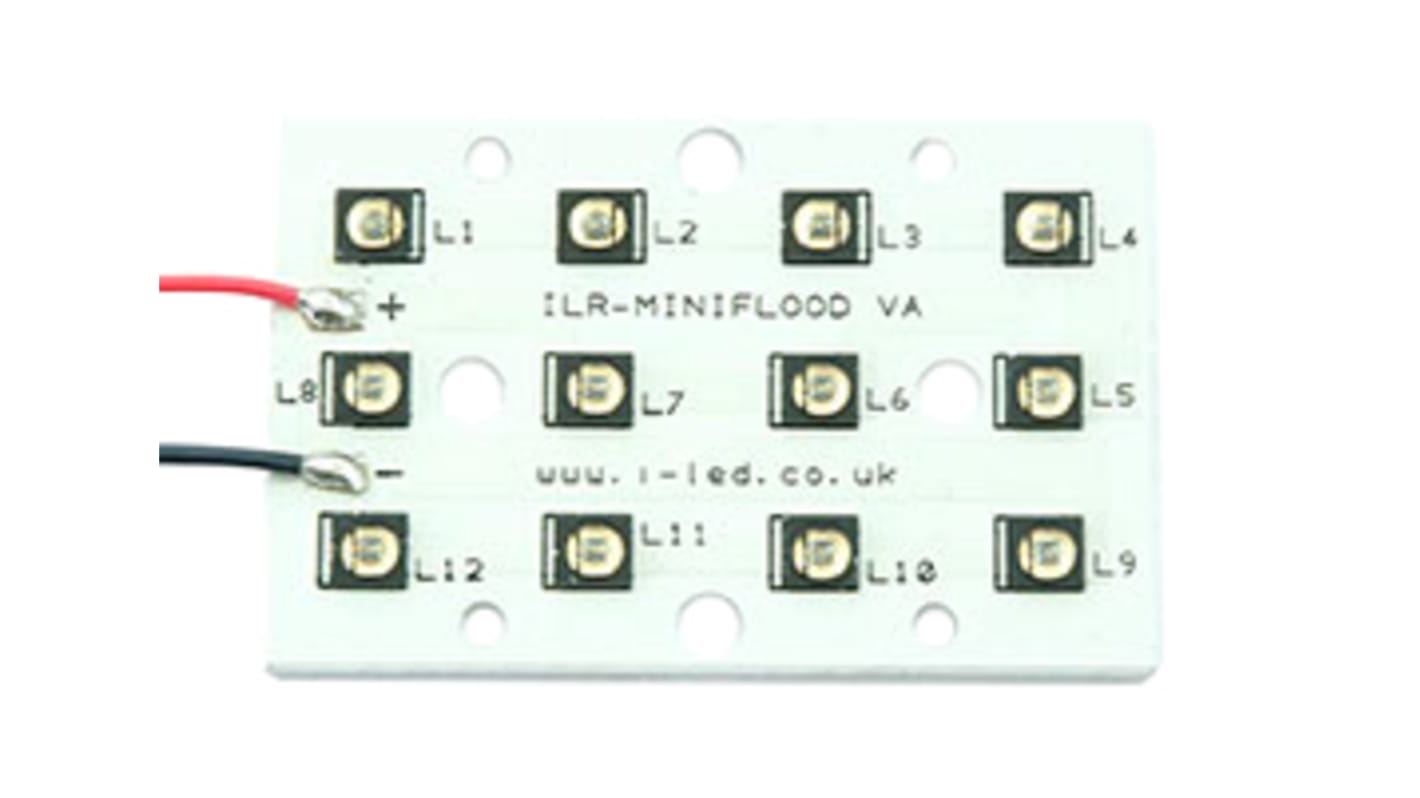

At the heart of each MiniFlood are 12 OSRAM IR OSLON® Black Series LED, which is today’s smallest infrared LED with more than one watt of optical power. The small package with an integrated lens allows superior and compact arrangements of very high power density. MiniFloods are compact, powerful LED light sources built on aluminium substrates for optimal thermal management. Available with 200mm wires as standard.

Up to 100,000 hour lifetime to 70% of original brightness

Mounting holes using M3 screws allows easy installation

Secondary Lenses can be fitted

Suitable Heat Sinks available

Matching Power Supply available

MiniFloods can be linked together to produce longer chains

Current range 100 to 1,000mA - can be pulsed up to 5 Amps
