Microchip 16-Channel I/O Expander SPI QFN 28, MCP23S17T-E/ML

RS 제품 번호:: 177-3082
Distrelec 제품 번호:: 304-38-534
제조사 부품 번호:: MCP23S17T-E/ML
제조업체:: Microchip

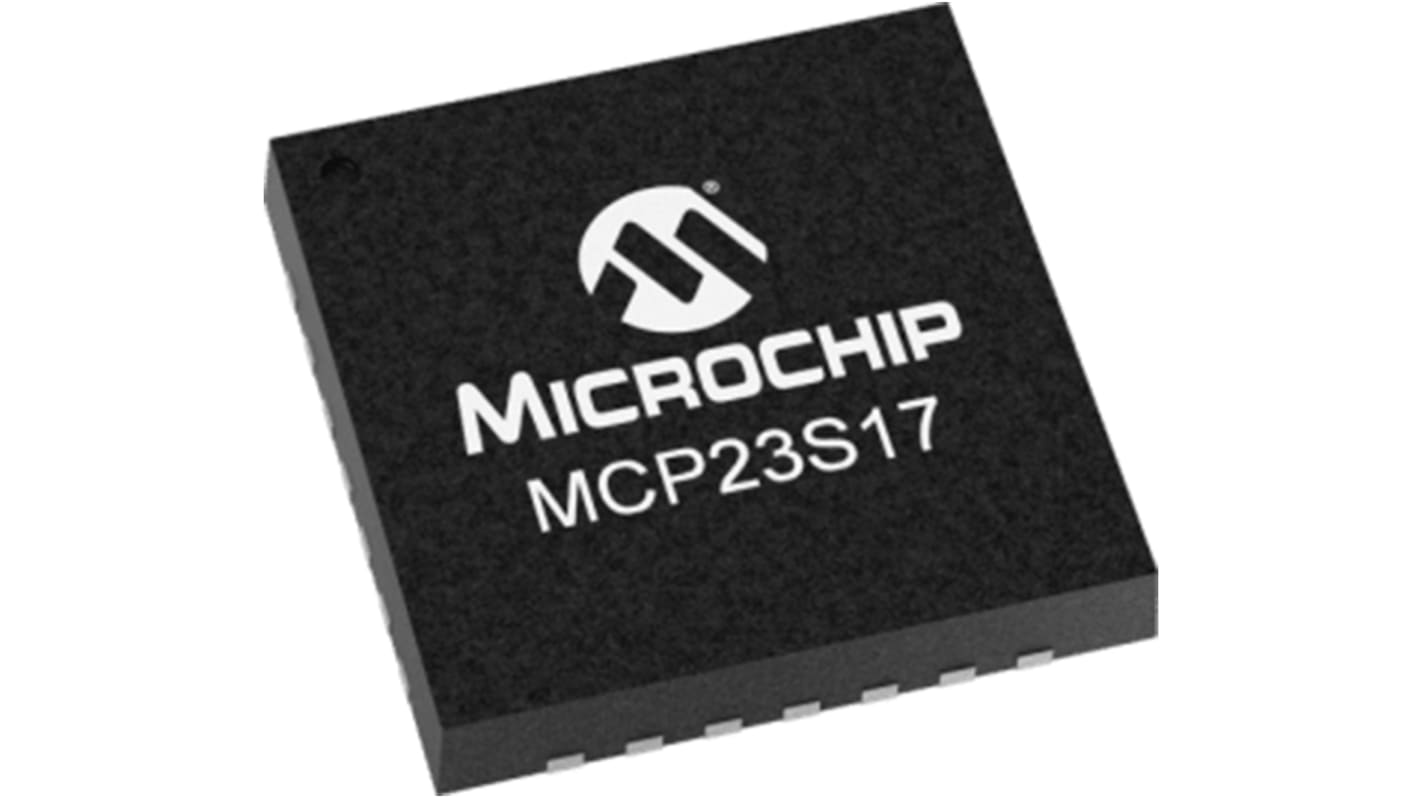

Microchip 16-Channel I/O Expander SPI QFN 28, MCP23S17T-E/ML

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

Subtotal (1 pack of 5 units)*

₩14,927.20

재고있음

1,380 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	한팩당*
5 +	₩2,985.44	₩14,927.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 177-3082
Distrelec 제품 번호:: 304-38-534
제조사 부품 번호:: MCP23S17T-E/ML
제조업체:: Microchip

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Microchip
	Product Type	I/O Expander
	Number of I/O Channels	16
	Package Type	QFN
	Clock Frequency	10MHz
	Interface Type	SPI
	Mount Type	Surface
	Maximum Supply Voltage	5.5V
	Minimum Supply Voltage	1.8V
	Pin Count	28
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	125°C
	Width	6 mm
	Length	6mm
	Standards/Approvals	No
	Series	MCP23S17
	Height	1mm
	Automotive Standard	No

	모두 선택
	브랜드 Microchip
	Product Type I/O Expander
	Number of I/O Channels 16
	Package Type QFN
	Clock Frequency 10MHz
	Interface Type SPI
	Mount Type Surface
	Maximum Supply Voltage 5.5V
	Minimum Supply Voltage 1.8V
	Pin Count 28
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 125°C
	Width 6 mm
	Length 6mm
	Standards/Approvals No
	Series MCP23S17
	Height 1mm
	Automotive Standard No

Datasheet

The MCP23017/MCP23S17 (MCP23X17) device family provides 16-bit, general purpose parallel I/O expansion for I2C bus or SPI applications. The two devices differ only in the serial interface.MCP23017 – I2C interface MCP23S17 – SPI interface

The MCP23X17 consists of multiple 8-bit configuration registers for input, output and polarity selection. The system master can enable the I/Os as either inputs or outputs by writing the I/O configuration bits (IODIRA/B). The data for each input or output is kept in the corresponding input or output register. The polarity of the Input Port register can be inverted with the Polarity Inversion register. All registers can be read by the system master.

16-bit input/output port expander with interrupt output

Cascadable for up to 8 devices on one bus

25mA sink/source capability per I/O

Supports up to 10MHz SPI™ clock speeds

Microchip 16-Channel I/O Expander SPI QFN 28, MCP23S17T-E/ML
