CAMDENBOSS CIM Series 9-Contact Female Interface Module, Screw Connector, DIN Rail, 500mA
- RS 제품 번호:
- 760-8822
- 제조사 부품 번호:
- CIM/RJ45
- 제조업체:
- CAMDENBOSS
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩57,603.00
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩57,603.00 |
| 10 - 49 | ₩55,653.00 |
| 50 + | ₩54,034.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 760-8822
- 제조사 부품 번호:
- CIM/RJ45
- 제조업체:
- CAMDENBOSS
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | CAMDENBOSS | |
| Gender | Female | |
| Product Type | Interface Module | |
| Wire Size | 12, 30AWG | |
| Current | 500mA | |
| Orientation | Straight | |
| Number of Contacts | 9 | |
| Connector Type | Screw | |
| Mount Type | DIN Rail | |
| Test Proof Voltage | 125V dc | |
| Voltage | 125V dc | |
| Cable CSA | 0.2, 4mm² | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Depth | 45mm | |
| Standards/Approvals | CE, RoHS compliance | |
| Width | 83mm | |
| Length | 34mm | |
| Series | CIM | |
| 모두 선택 | ||
|---|---|---|
브랜드 CAMDENBOSS | ||
Gender Female | ||
Product Type Interface Module | ||
Wire Size 12, 30AWG | ||
Current 500mA | ||
Orientation Straight | ||
Number of Contacts 9 | ||
Connector Type Screw | ||
Mount Type DIN Rail | ||
Test Proof Voltage 125V dc | ||
Voltage 125V dc | ||
Cable CSA 0.2, 4mm² | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Depth 45mm | ||
Standards/Approvals CE, RoHS compliance | ||
Width 83mm | ||
Length 34mm | ||
Series CIM | ||
- COO (Country of Origin):
- GB

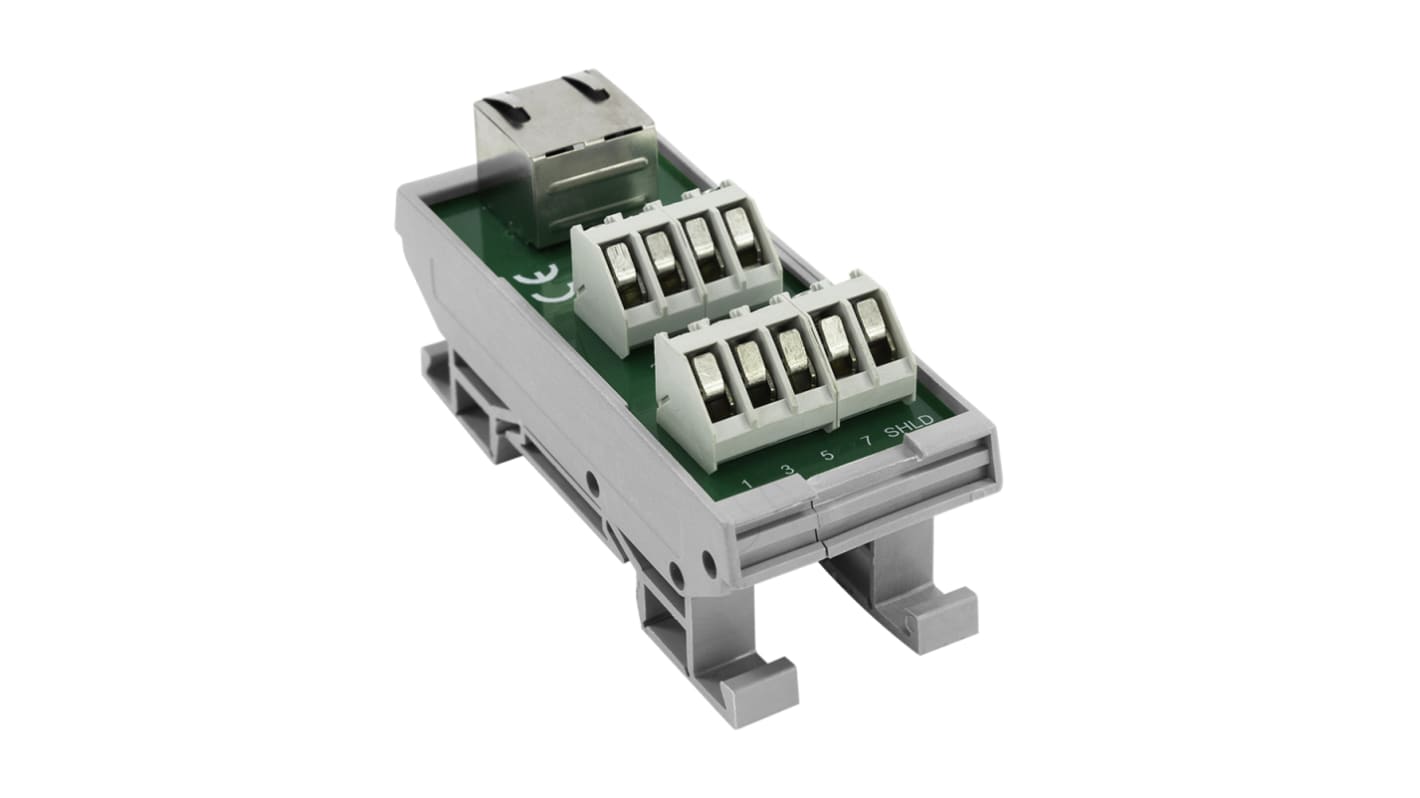

RJ45 Interface Module
The CIM/RJ45 is a female single RJ45 (8P8C) type socket to screw terminals interface module. The terminals are marked 1 to 8 (+ shield) with a separate shield connection.
Features and Benefits:
45° terminals for easy access
Screw terminal interface
Cable entry - 0.2 to 4 mm² (30-12 AWG)
M3 terminal screw
6mm strip length
Weight 38g
Base material is plastic
Rating 125 V dc 500mA
Applications:
The RJ45 DIN mounting interface module is suitable for 35 mm DIN rail mounting.
