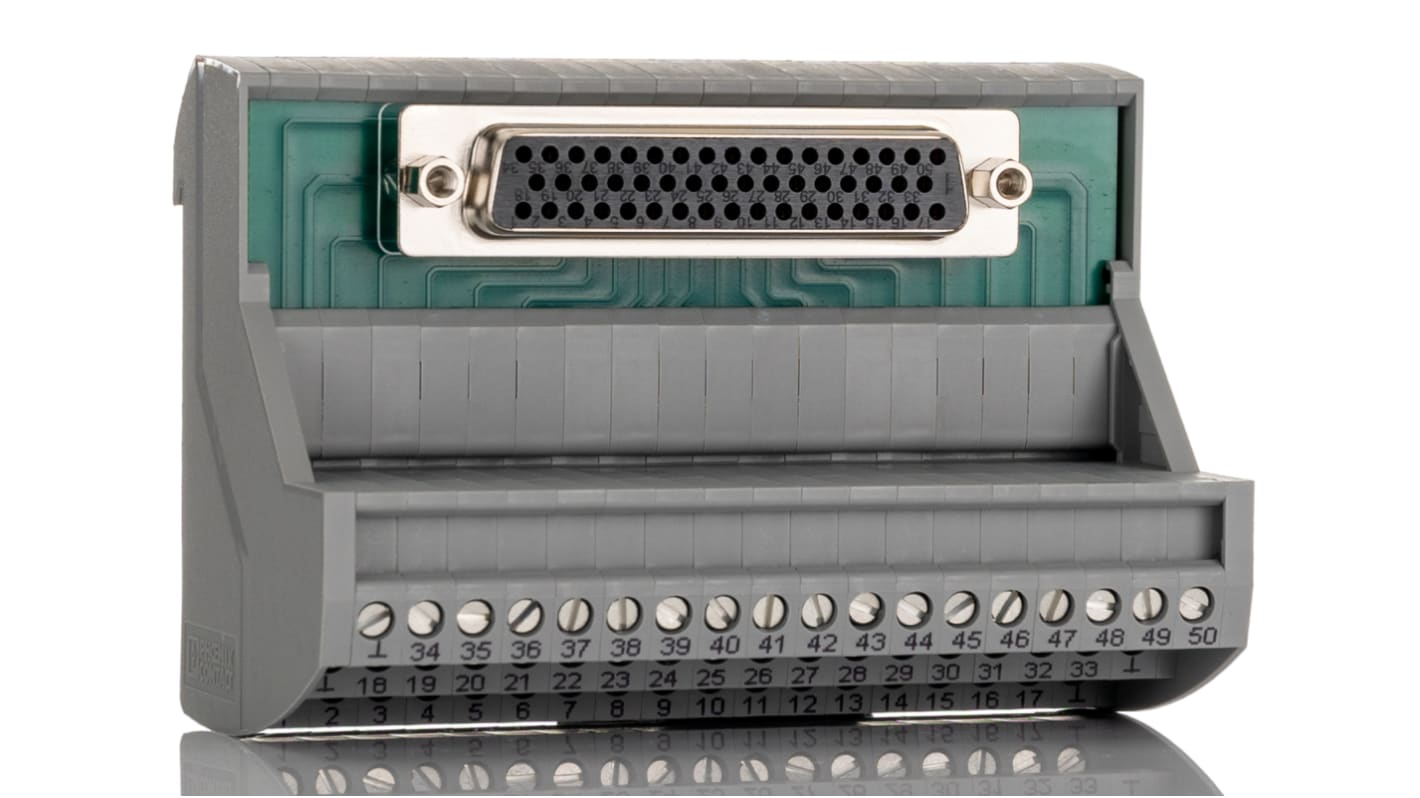

Phoenix Contact 50-Contact Female Interface Module, D-sub Connector, DIN Rail, 2A
- RS 제품 번호:
- 667-0087
- Distrelec 제품 번호:
- 304-01-197
- 제조사 부품 번호:
- 2315201
- 제조업체:
- Phoenix Contact
Subtotal (1 unit)*
₩164,650.40
재고있음
- 2 개 단위 배송 준비 완료
- 추가로 2026년 1월 14일 부터 12 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩164,650.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 667-0087
- Distrelec 제품 번호:
- 304-01-197
- 제조사 부품 번호:
- 2315201
- 제조업체:
- Phoenix Contact
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Phoenix Contact | |
| Gender | Female | |
| Wire Size | 24 → 12 AWG | |
| Number of Contacts | 50 | |
| Connector Type | D-sub | |
| Body Orientation | Straight | |
| Mounting Type | DIN Rail | |
| Voltage Rating | 25 V ac, 60 V dc | |
| Current Rating | 2A | |
| Cable CSA | 4mm² | |
| Dimensions | 98.2 x 62 x 69mm | |
| Depth | 69mm | |
| Length | 98.2mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +50°C | |
| Width | 62mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Phoenix Contact | ||
Gender Female | ||
Wire Size 24 → 12 AWG | ||
Number of Contacts 50 | ||
Connector Type D-sub | ||
Body Orientation Straight | ||
Mounting Type DIN Rail | ||
Voltage Rating 25 V ac, 60 V dc | ||
Current Rating 2A | ||
Cable CSA 4mm² | ||
Dimensions 98.2 x 62 x 69mm | ||
Depth 69mm | ||
Length 98.2mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +50°C | ||
Width 62mm | ||
- COO (Country of Origin):
- US
Phoenix Contact Interface Module, DIN Rail Mounting, 24 to 12AWG - VIP-3/SC/D50SUB/F - 2315201
Exchange information across electrical systems using this interface module from Phoenix Contact. Its plug-and-play design ensures quick conversion of signals between different forms, saving you the hassle of running multiple cables. The terminals are designed to accommodate cable sizes of 24 to 12AWG for flexibility of wiring.
There's a robust D-SUB socket strip with 50 contacts, so you can rest assured you'll have enough room for multiple conductors. As the unit has been tested to withstand 500 insertion and withdrawal cycles, you can happily attach and remove your conductors without wearing them out.
Mounting this module is a breeze – simply snap it onto a DIN rail in the position that best suits your application. Thanks to its sturdy PA housing, you can trust that you're shielded from electrical hazards during use. You'll typically find units like this one in building automation and aviation engineering machinery.
There's a robust D-SUB socket strip with 50 contacts, so you can rest assured you'll have enough room for multiple conductors. As the unit has been tested to withstand 500 insertion and withdrawal cycles, you can happily attach and remove your conductors without wearing them out.
Mounting this module is a breeze – simply snap it onto a DIN rail in the position that best suits your application. Thanks to its sturdy PA housing, you can trust that you're shielded from electrical hazards during use. You'll typically find units like this one in building automation and aviation engineering machinery.
Features & Benefits
• Flammability rating of UL 94-V0 indicates that burning stops in 10 seconds in case of fire
• Screw terminations keep a tight hold on cables
• Functional insulation ensures the internal components are electrically isolated, preventing shocks
• IP20 rating tells you it's touch-proof and dust-resistant
• Screw terminations keep a tight hold on cables
• Functional insulation ensures the internal components are electrically isolated, preventing shocks
• IP20 rating tells you it's touch-proof and dust-resistant
