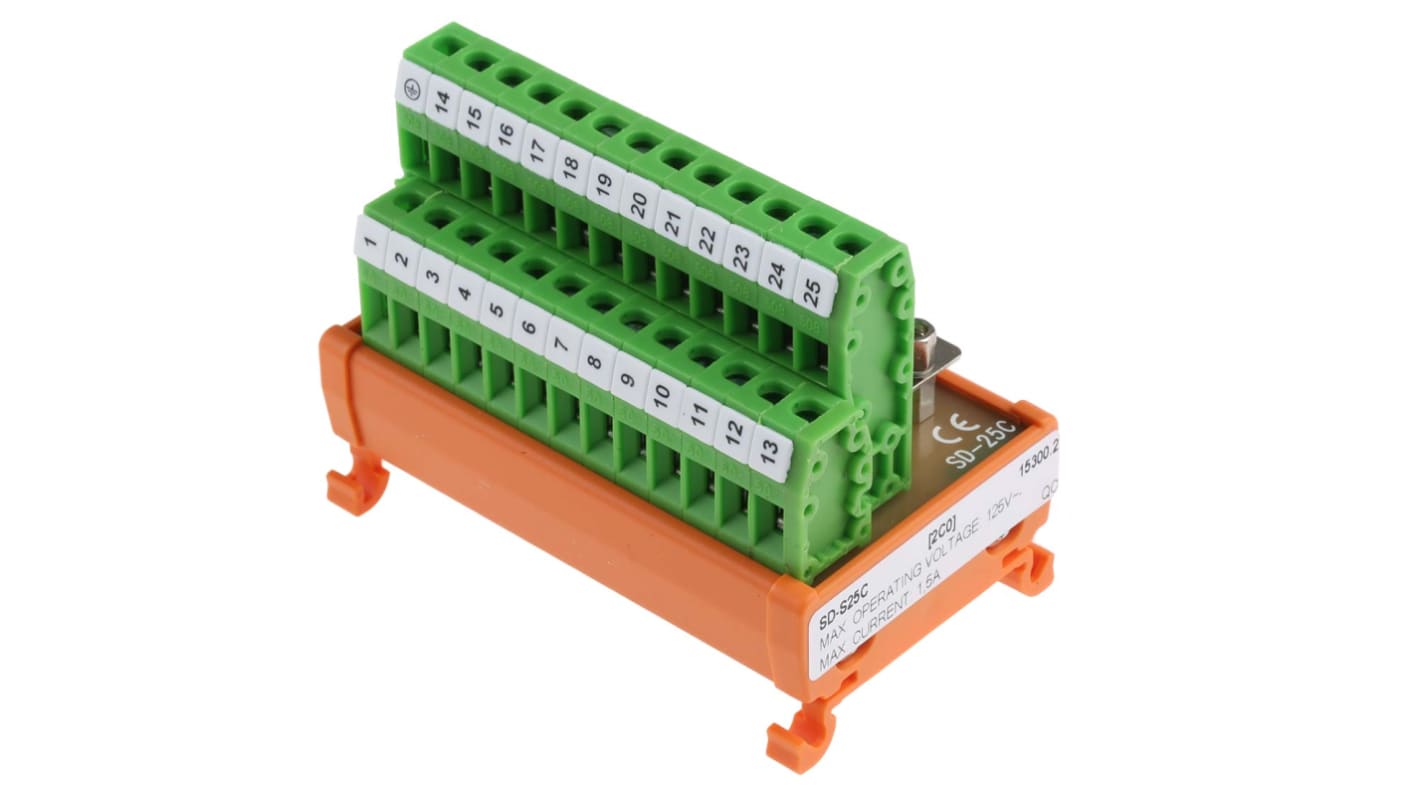

RS PRO 25-Contact Male Interface Module, D-Sub Connector, DIN Rail, 1.5A
- RS 제품 번호:
- 665-9702
- 제조업체:
- RS PRO
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩105,430.40
재고있음
- 11 개 단위 배송 준비 완료
- 추가로 2026년 3월 04일 부터 44 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩105,430.40 |
| 5 + | ₩86,762.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 665-9702
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Gender | Male | |
| Product Type | Interface Module | |
| Wire Size | 22/14 AWG | |
| Current | 1.5A | |
| Orientation | Straight | |
| Number of Contacts | 25 | |
| Connector Type | D-Sub | |
| Mount Type | DIN Rail | |
| Test Proof Voltage | 0.6kV | |
| Voltage | 125 V ac/dc | |
| Cable CSA | 0.2 to 2.5 mm² | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | No | |
| Depth | 47mm | |
| Width | 61 mm | |
| Length | 78mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Gender Male | ||
Product Type Interface Module | ||
Wire Size 22/14 AWG | ||
Current 1.5A | ||
Orientation Straight | ||
Number of Contacts 25 | ||
Connector Type D-Sub | ||
Mount Type DIN Rail | ||
Test Proof Voltage 0.6kV | ||
Voltage 125 V ac/dc | ||
Cable CSA 0.2 to 2.5 mm² | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals No | ||
Depth 47mm | ||
Width 61 mm | ||
Length 78mm | ||
RS PRO, 25 Pole D-sub Connector, Male Interface Module, DIN Rail Mount
This RS PRO D-sub male interface module is ideal for all your wiring needs. It comes fitted with a D-subminiature plug with 25 contacts, a DIN rail mounting plate, as well as screw clamp terminals.
This interface module operates between temperatures of -20°C and +50°C. Its DIN rail TS35 mount makes mounting electrical components onto it safe and straightforward. It can accommodate wires from 0.2 to 2.5 mm² (AWG 22 to 14). You simply snap or slide the components into place on the rail for a neat and well-organised layout, saving you time. Plus, the DIN rail mount conveniently allows you to bring together internal and external wiring circuits, which is especially useful in settings where space is limited.
Interface modules like this one are an essential part of wiring applications in tool rooms, as well as factories and manufacturing plants.
Features and Benefits
• D-Sub connector
• Male
• 25 Contacts
• Interface module
• Length of 78 mm
• Height of 61 mm
• Depth of 47 mm
• Voltage of 125 V AC / DC
• US wire size from 22 to 14 AWG
• Cable CSA 0.2 to 2.5 mm²
• DIN rail mount
• Test proof voltage of 0.6 kV
• Current rating of 1.5 A
• Operating temperature range of -20°C to +50°C
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
