RS PRO 20-Contact Male Interface Module, Flat Ribbon Cable Connector, DIN Rail, 1A

모든 Interface Modules 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩73,771.20

Add to Basket
수량 선택 또는 입력
재고있음
  • 270 개 단위 배송 준비 완료
  • 추가로 2026년 2월 12일 부터 174 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 4₩73,771.20
5 +₩60,705.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
665-9664
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Gender

Male

Product Type

Interface Module

Wire Size

22/14 AWG

Current

1A

Orientation

Straight

Number of Contacts

20

Connector Type

Flat Ribbon Cable

Mount Type

DIN Rail

Test Proof Voltage

0.67kV

Voltage

125 V ac/dc

Minimum Operating Temperature

-20°C

Cable CSA

0.2 to 2.5 mm²

Maximum Operating Temperature

50°C

Depth

47mm

Width

61 mm

Standards/Approvals

No

Length

63mm

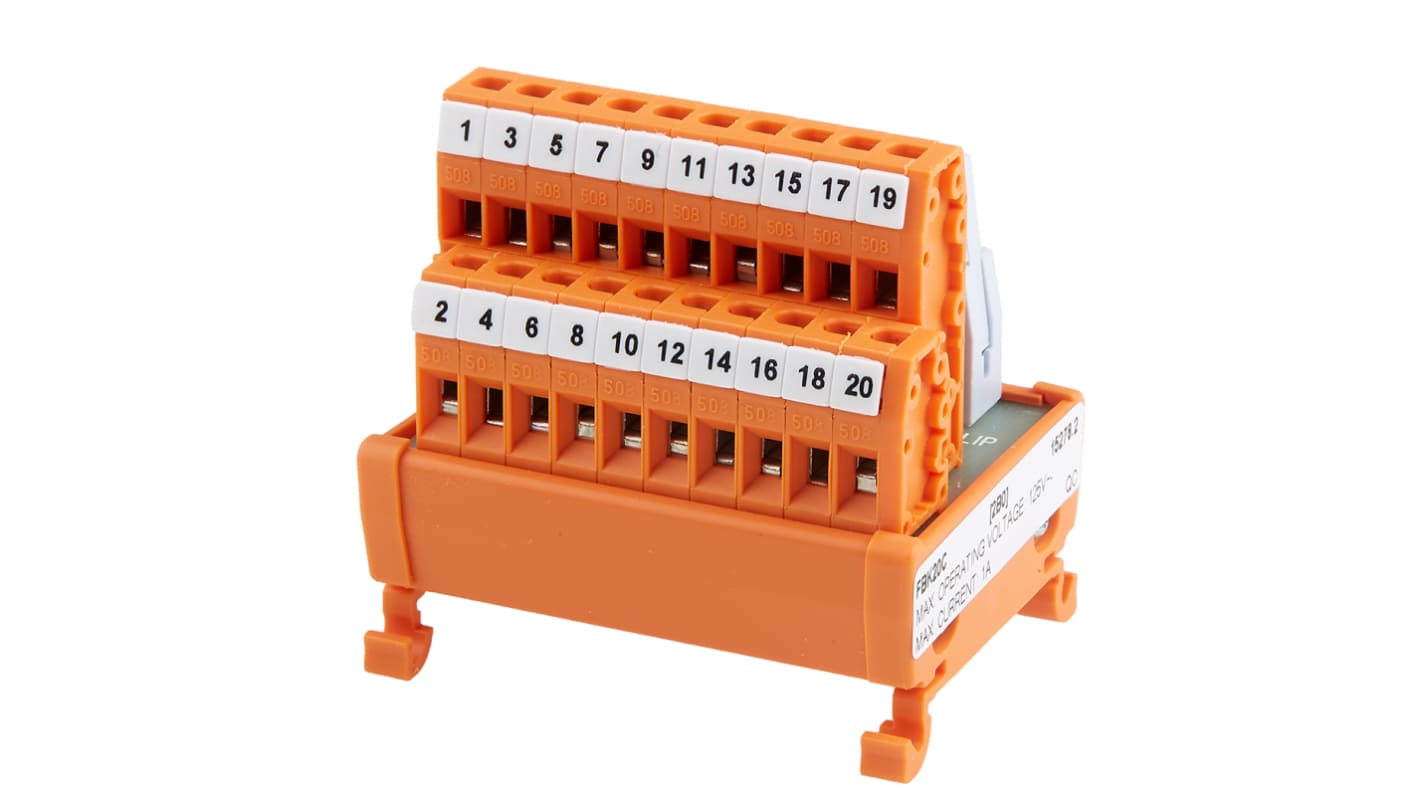

RS PRO, 20 Pole Flat Ribbon Cable Connector, Male Interface Module, DIN Rail Mount


This RS PRO flat ribbon cable connector keeps your installation time short and your maintenance low. The connector is compact and has clear terminal labels that make assembling your electronic devices easy. Particularly suitable as an alternative to a pure wire approach, this type of connector is used to optimise your wiring.

It has a DIN (Deutsches Institut für Normung, or the German Institute of Standardisation) rail mount design and a male interface module plug with 20 contacts. This supports your flat ribbon cable connection from 14 AWG to 22 AWG. It keeps your connection secure through its screw-clamp, as well as a 7 mm insulating strip.

You can eject your cables easily too, thanks to its simple ejector mechanism. It’s designed for cables with a cross-sectional area of 0.2 mm² to 2.5 mm² and is frequently found in factories and manufacturing plants, where its reliable ’plug and play’ interface suits industrial control systems.

Features and Benefits


• Male interface module DIN (Deutsches Institut für Normung, or the German Institute of Standardisation) rail mount

• Flat ribbon cable

• Current rating of 1 A

• Voltage rating of 125 V (AC/DC)

• 20 contacts

• American Wire Gauge of 14 AWG to 22 AWG

• Suitable for cables with a cross-sectional area of 0.2 mm² to 2.5 mm²

• Measures 63 mm x 61 mm x 47 mm

• Operating temperature range of -20°C to +50°C

RS PRO


RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
