Connective Peripherals USB Type B to Female to Terminal Block Interface Adapter
- RS 제품 번호:
- 521-045
- 제조사 부품 번호:
- CP-CANFD-1P-ISO
- 제조업체:
- Connective Peripherals
Subtotal (1 unit)*
₩282,225.60
재고있음
- 2 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩282,225.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 521-045
- 제조사 부품 번호:
- CP-CANFD-1P-ISO
- 제조업체:
- Connective Peripherals
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Connective Peripherals | |
| Product Type | Interface Adapter | |
| Connector Type A | USB Type B | |
| Connector Gender A | Female | |
| Connector Type B | Terminal Block | |
| Standards/Approvals | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Connective Peripherals | ||
Product Type Interface Adapter | ||
Connector Type A USB Type B | ||
Connector Gender A Female | ||
Connector Type B Terminal Block | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- TW

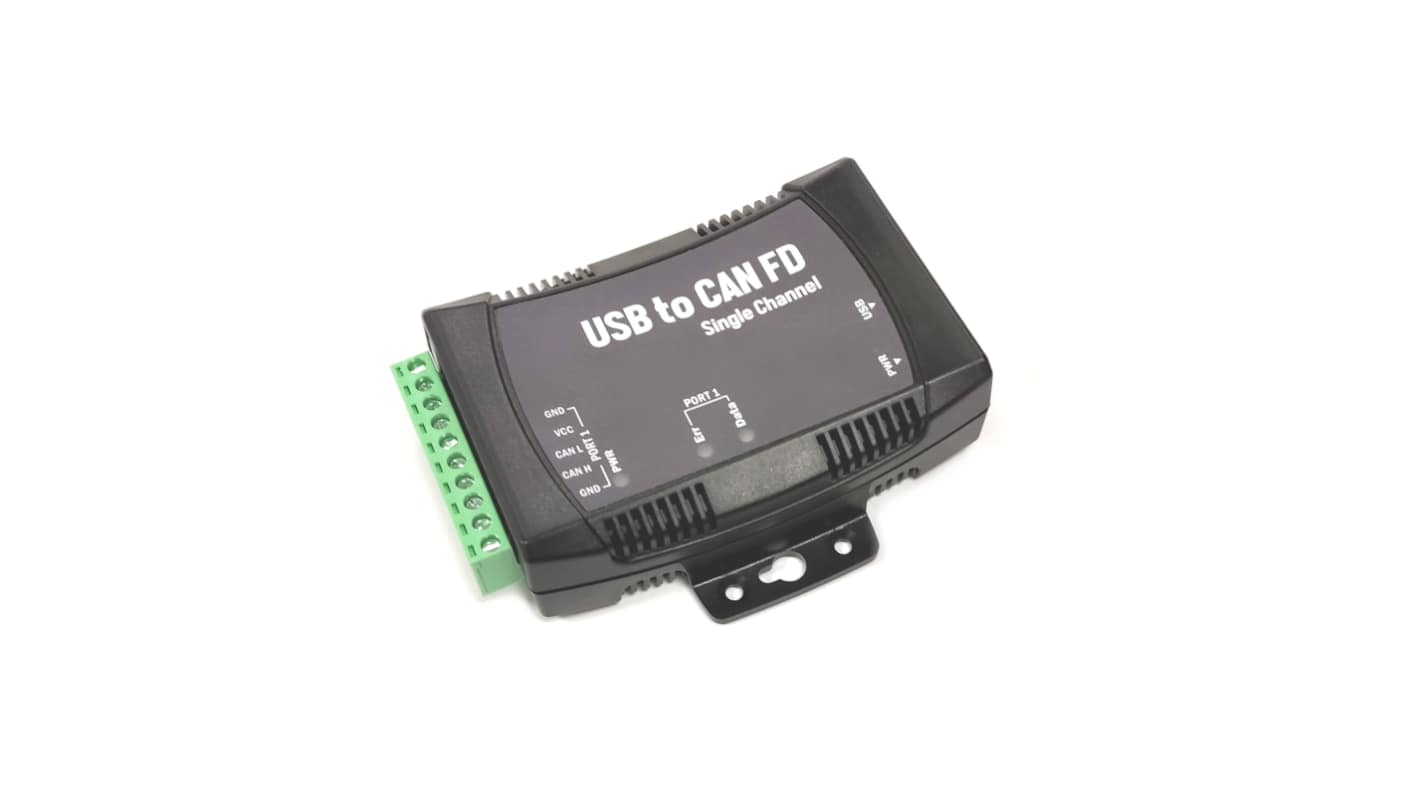

The Connective Peripherals adapter is an industrial-grade device that adds high-speed CAN FD interfaces to PCs or notebooks via a USB connection. It provides a 10-pin terminal block connector for connecting to CAN/CAN FD interfaces. It complies with CAN specifications ISO 11898-1 for CAN/CAN FD and meets the requirements of the ISO11898-2:2016 high-speed CAN specification.
1 port
CAN Bus speed up to 1 Mbps
CAN FD data rate up to 8 Mbps
Galvanic isolation up to 5700 Vrms
