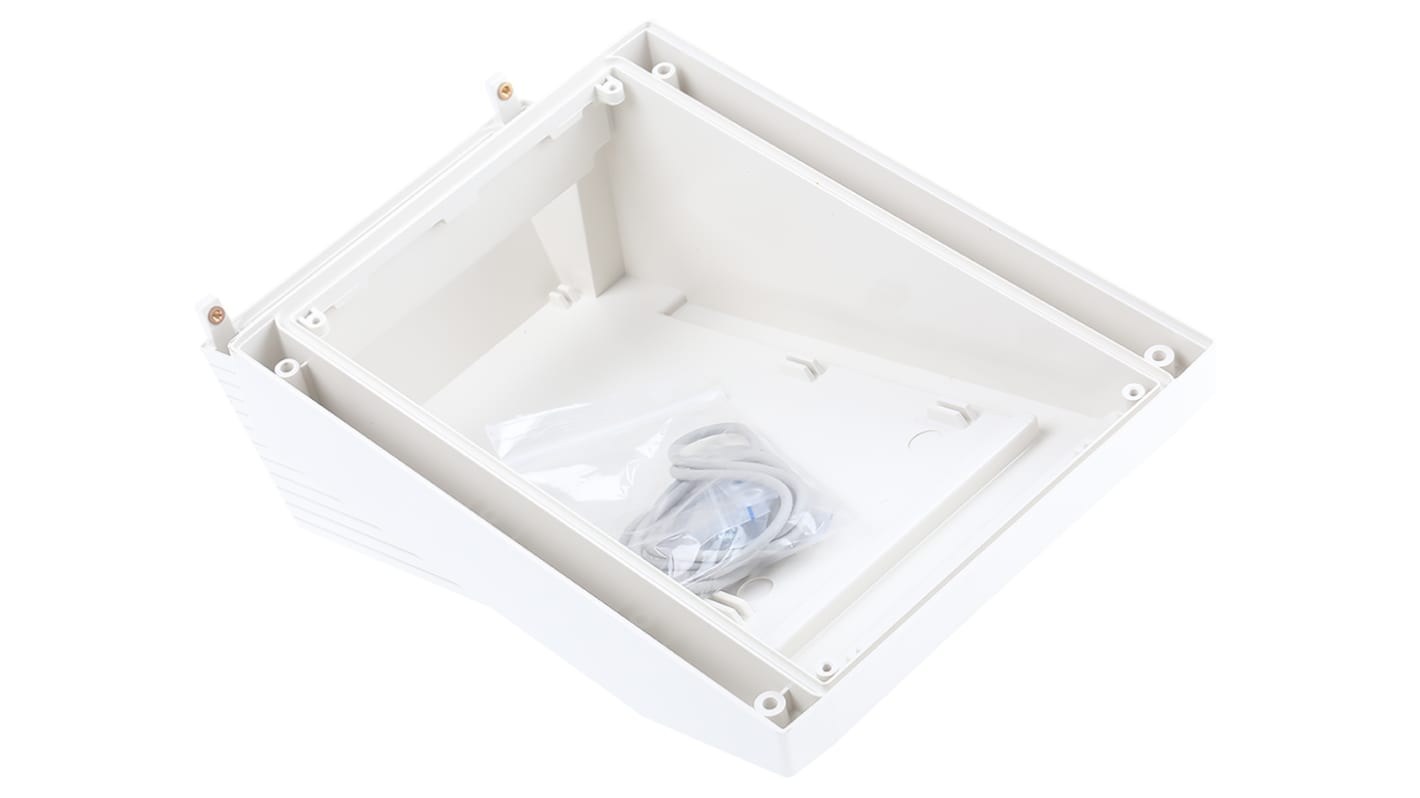

DATEC terminal housing, type M

These housings are designed for mounting a printed circuit board in Euro format 100 x 160 mm. The front control panel is tilted by 20° and can optionally be provided with a front plate or a hood. The use of a hood with a front plate is also possible. It can also be used as a table or wall housing (wall mounting bracket).
The type H and type S aluminium front plates are available for use with a hood. There is also a mounting plate for installing the most common swipe readers and a wall bracket for wall mounting of the Datec terminal housing. The necessary screws are also included in the delivery.

Flat Lid (B 40 16 417)

to cover up the terminal compartment

Flat Cover (B 40 16 617)

provides IP54 protection, maximum dimension of keypad 195.1 x 129.2 mm

Front Panel S (B 41 16 106)

matt anodised, aluminium, 217.4 x 165.4 x 2 mm
Discontinued

Front Panel H (B 41 16 116)

matt anodised, aluminium, 209 x 128 x 2 mm
Discontinued

Support Plate (B 41 16 136)

designed for mounting types of card readers/scanners to the one-piece lid with slot
Discontinued

Wall Bracket (B 41 16 147)

galvanised sheet steel, secured by 2 screws in the terminal compartment

Note

The housing does not come with a lid, accessories must be purchased separately.

모두 선택	제품 정보	값
	브랜드	OKW
	Body Material	ABS
	External Length	272 mm
	External Width	168 mm
	External Height	101 mm
	External Dimensions	272 x 168 x 101mm
	Colour	White
	IP Rating	IP65
	Series	Datec

	모두 선택
	브랜드 OKW
	Body Material ABS
	External Length 272 mm
	External Width 168 mm
	External Height 101 mm
	External Dimensions 272 x 168 x 101mm
	Colour White
	IP Rating IP65
	Series Datec

OKW Datec White ABS Instrument Case, 272 x 168 x 101mm
