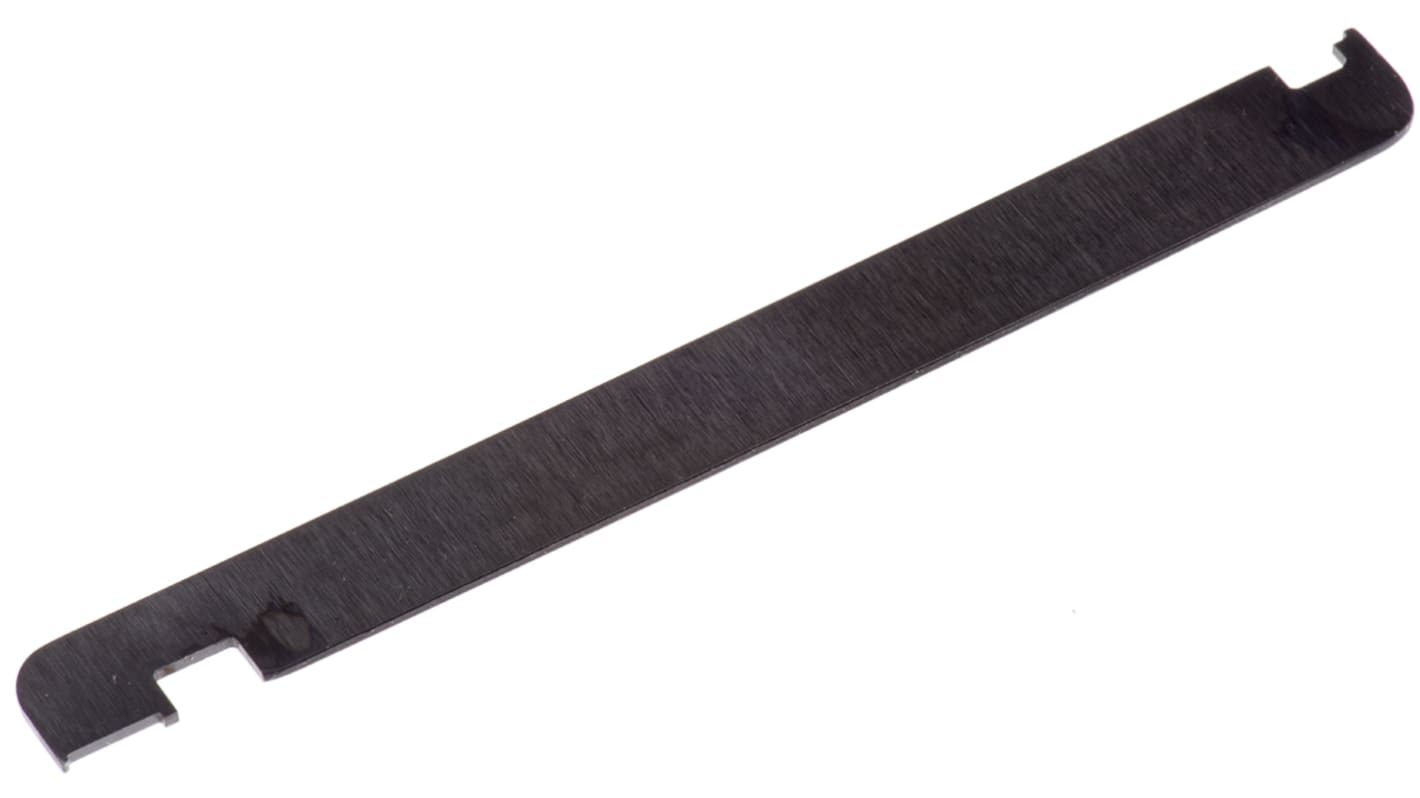

Molex Crimp Extraction Tool, HANDTOOL Series, Crimp Contact, Extraction Tool Contact
- RS 제품 번호:
- 360-6897
- Distrelec 제품 번호:
- 303-64-811
- 제조사 부품 번호:
- 69008-0003
- 제조업체:
- Molex
Subtotal (1 unit)*
₩81,978.00
재고있음
- 11 개 단위 배송 준비 완료
- 추가로 2026년 6월 19일 부터 10 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩81,978.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 360-6897
- Distrelec 제품 번호:
- 303-64-811
- 제조사 부품 번호:
- 69008-0003
- 제조업체:
- Molex
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Molex | |
| Contact Type | Crimp | |
| Product Type | Crimp Extraction Tool | |
| Sub Type | Extraction Tool | |
| Series | HANDTOOL | |
| For Use With | C-Grid III Terminals | |
| Standards/Approvals | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Molex | ||
Contact Type Crimp | ||
Product Type Crimp Extraction Tool | ||
Sub Type Extraction Tool | ||
Series HANDTOOL | ||
For Use With C-Grid III Terminals | ||
Standards/Approvals No | ||
제외
Molex C-Grid III Crimp Terminals - 90119 Series
C-Grid III 90119 series female crimp terminals for use in C-Grid III 90156, 90123, 90142, 90143 and 90160 series crimp housings. These C-Grid III crimp receptacles terminals have a box design and a uniform locking system that enables them to be used inside different housing styles. The contacts are made from phosphor bronze with a choice of gold or tin plating and suitable for use with wire size ranges of 24-22 AWG or 28-26 AWG.
For suitable crimp tools see stock number 781-2728 for 24-22 AWG terminals and 781-2737 for 28-26 AWG terminals. An extraction tool (stock number 360-6897) and an insertion tool (stock number 360-6881) are also available.
Features:
• Current Rating: 3A max
• Working Voltage: 350 Vac/dc max
• Contact Plating: Selective Gold over Nickel or Tin over Nickel
• Insulation Material Headers: 15% Glass-filled Polyester (PBT)
• Housing: Polyphenylene Oxide
• Header Pin Size: 0.64 square mm
• Recommended PCB Hole Diameter: 1mm
Application:
• Consumer Electronics
• Commercial Vehicles
2.54mm Molex C-Grid III Range
