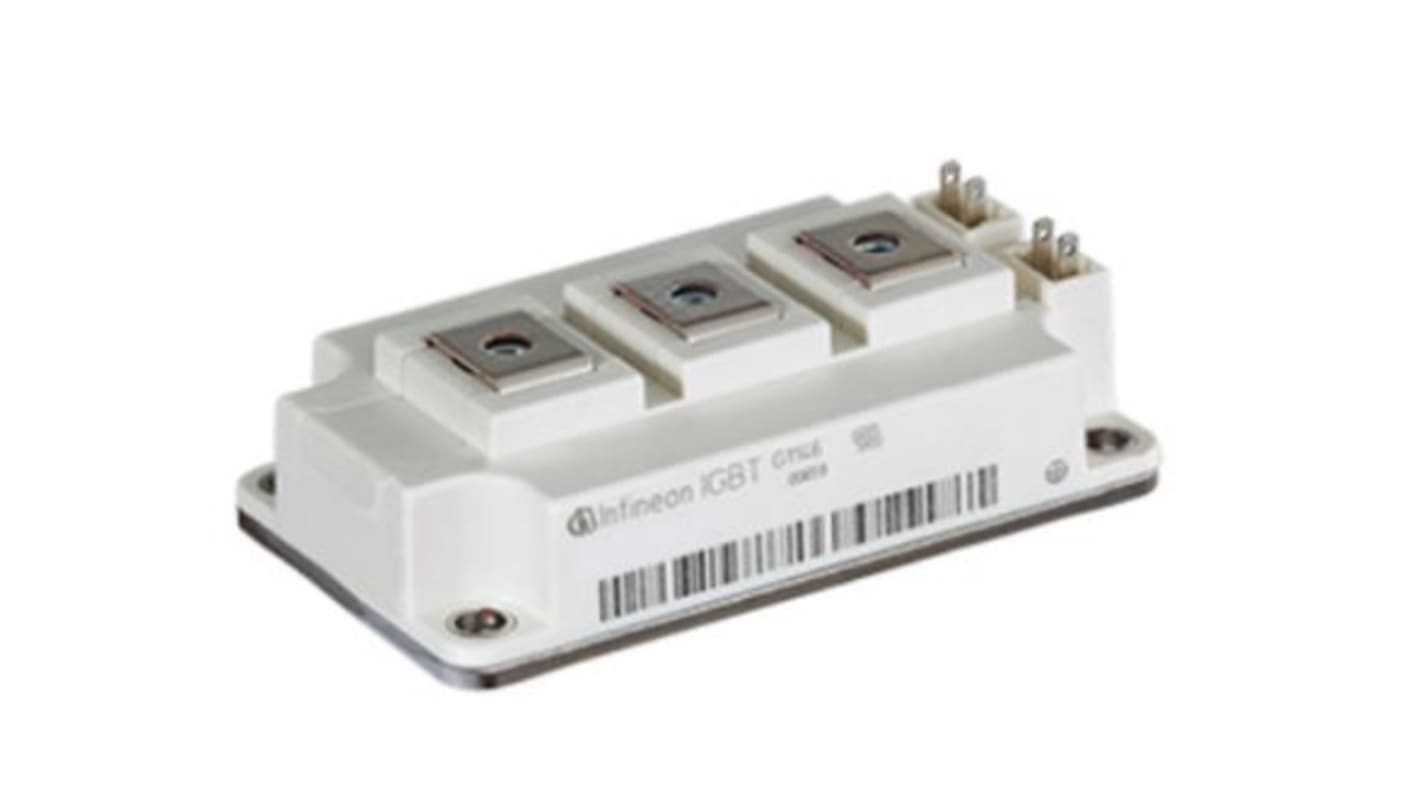

Infineon FF400R17KE4HOSA1, Type N-Channel IGBT Module, 400 A 1700 V, 7-Pin, Through Hole
- RS 제품 번호:
- 218-4335
- 제조사 부품 번호:
- FF400R17KE4HOSA1
- 제조업체:
- Infineon
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩313,884.80
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 |
|---|---|
| 1 - 2 | ₩313,884.80 |
| 3 - 4 | ₩306,045.20 |
| 5 + | ₩299,935.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 218-4335
- 제조사 부품 번호:
- FF400R17KE4HOSA1
- 제조업체:
- Infineon
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Infineon | |
| Maximum Continuous Collector Current Ic | 400A | |
| Product Type | IGBT Module | |
| Maximum Collector Emitter Voltage Vceo | 1700V | |
| Number of Transistors | 2 | |
| Mount Type | Through Hole | |
| Channel Type | Type N | |
| Pin Count | 7 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.45V | |
| Maximum Gate Emitter Voltage VGEO | 20 V | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | No | |
| Series | FF400R17KE4 | |
| Length | 106.4mm | |
| Width | 61.4 mm | |
| Height | 30.9mm | |
| Automotive Standard | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Infineon | ||
Maximum Continuous Collector Current Ic 400A | ||
Product Type IGBT Module | ||
Maximum Collector Emitter Voltage Vceo 1700V | ||
Number of Transistors 2 | ||
Mount Type Through Hole | ||
Channel Type Type N | ||
Pin Count 7 | ||
Minimum Operating Temperature -40°C | ||
Maximum Collector Emitter Saturation Voltage VceSAT 2.45V | ||
Maximum Gate Emitter Voltage VGEO 20 V | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals No | ||
Series FF400R17KE4 | ||
Length 106.4mm | ||
Width 61.4 mm | ||
Height 30.9mm | ||
Automotive Standard No | ||
The Infineon half-bridge IGBT module with fast TRENCHSTOP IGBT4 and emitter controlled diode. It has collector emitter voltage of 1700 V and collector current of 400 A. It is mainly used in motor control and drives, UPS system and power converter and inverter of wind turbines.
Highest power density
Flexibility
Optimal electrical performance
High creepage and clearance distances
Highest reliability
