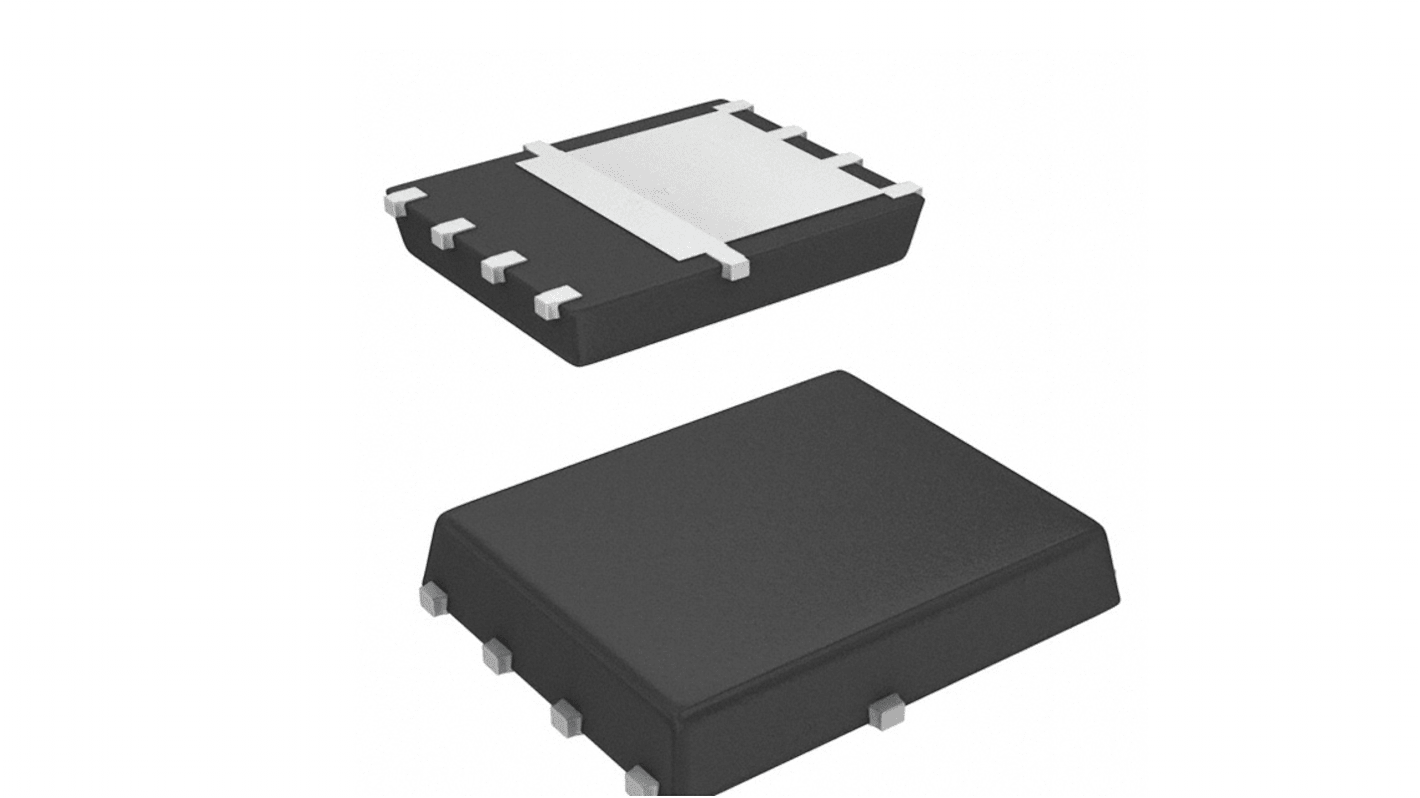

Vishay SI7489DP-T1-E3, Type P-Channel IGBT, 8-Pin PowerPAK SO-8, Surface

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 IGBTs 열람하기
대량 구매 할인 기용 가능
View bulk pricing options

Subtotal (1 pack of 5 units)*

₩24,180.00

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2026년 7월 20일 부터 135 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량
한팩당
한팩당*
5 - 745₩4,836.00₩24,180.00
750 - 1495₩4,720.00₩23,600.00
1500 +₩4,640.00₩23,200.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

포장 옵션
RS 제품 번호:
180-7802
제조사 부품 번호:
SI7489DP-T1-E3
제조업체:
Vishay
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Vishay

Product Type

IGBT

Maximum Power Dissipation Pd

83W

Package Type

PowerPAK SO-8

Mount Type

Surface

Channel Type

Type P

Pin Count

8

Minimum Operating Temperature

-55°C

Maximum Gate Emitter Voltage VGEO

50 V

Maximum Operating Temperature

150°C

Standards/Approvals

IEC 61249-2-21

Length

6.25mm

Height

1.12mm

Energy Rating

61mJ

Automotive Standard

No

COO (Country of Origin):
CN

Vishay MOSFET


The Vishay surface mount P-channel SO-8 MOSFET is a new age product with a drain-source voltage of 100V and a maximum gate-source voltage of 20V. It has a drain-source resistance of 41mohms at a gate-source voltage of 10V. It has a maximum power dissipation of 83W and continuous drain current of 28A. It has a minimum and a maximum driving voltage of 4.5V and 10V respectively. This product has been optimized for lower switching and conduction losses. The MOSFET offers excellent efficiency along with a long and productive life without compromising performance or functionality.

Features and Benefits


• Halogen free

• New low thermal resistance PowerPAK package with low 1.07mm profile

• Operating temperature ranges between -55°C and 150°C

• PWM optimised

• TrenchFET power MOSFET

Applications


• Half-bridge motor drives

• High voltage non-synchronous buck converters

• Load switches

Certifications


• ANSI/ESD S20.20:2014

• BS EN 61340-5-1:2007

• IEC 61249-2-21
