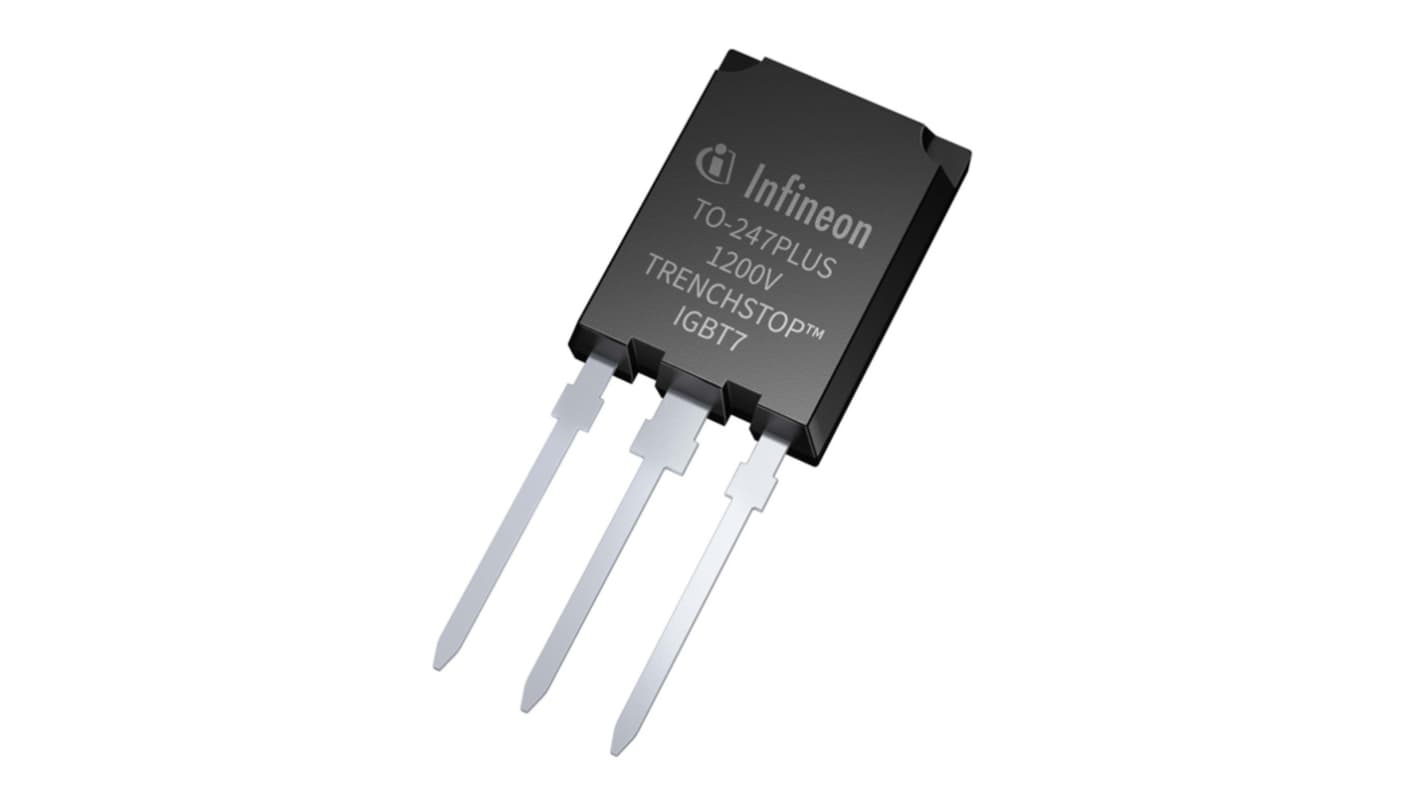

Infineon IKQ120N120CS7XKSA1, Type N-Channel IGBT 1200 V, 3-Pin PG-TO-247-3-PLUS-N, Through Hole
- RS 제품 번호:
- 284-987
- 제조사 부품 번호:
- IKQ120N120CS7XKSA1
- 제조업체:
- Infineon
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
현재 비가용
죄송합니다. 언제 재입고될지 모릅니다.
- RS 제품 번호:
- 284-987
- 제조사 부품 번호:
- IKQ120N120CS7XKSA1
- 제조업체:
- Infineon
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Infineon | |
| Product Type | IGBT | |
| Maximum Collector Emitter Voltage Vceo | 1200V | |
| Maximum Power Dissipation Pd | 1kW | |
| Package Type | PG-TO-247-3-PLUS-N | |
| Mount Type | Through Hole | |
| Channel Type | Type N | |
| Pin Count | 3 | |
| Maximum Gate Emitter Voltage VGEO | ±20 V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | No | |
| Width | 15.9 mm | |
| Length | 20.1mm | |
| Height | 5.1mm | |
| Automotive Standard | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Infineon | ||
Product Type IGBT | ||
Maximum Collector Emitter Voltage Vceo 1200V | ||
Maximum Power Dissipation Pd 1kW | ||
Package Type PG-TO-247-3-PLUS-N | ||
Mount Type Through Hole | ||
Channel Type Type N | ||
Pin Count 3 | ||
Maximum Gate Emitter Voltage VGEO ±20 V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals No | ||
Width 15.9 mm | ||
Length 20.1mm | ||
Height 5.1mm | ||
Automotive Standard No | ||
The Infineon IGBT is a high performance 1200V TRENCHSTOP IGBT 7 technology product designed for robust operation in demanding applications. Engineered with short circuit ruggedness, this IGBT ensures exceptional reliability under fault conditions, making it Ideal for industrial drives, solar inverters, and power supplies. Its optimised thermal management and low saturation voltage facilitate efficient performance, even when subjected to heavy load conditions. The integrated fast recovery diode complements its performance, further enhancing its suitability for hard switching topologies. With a focus on efficiency and durability, this product is a cornerstone for high performance power electronics.
Short circuit rugged technology ensures safe operation
Optimized for hard switching applications
Low saturation voltage enhances efficiency
Robust thermal management for reliability
High pulsed collector current for dynamic loading
Integrated soft recovery diode improves switching
Meets JEDEC industrial standards for quality
Comprehensive product spectrum with PSpice models
