Subtotal (1 unit)*
₩1,872,390.00
재고있음
- 3 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩1,872,390.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 196-3703
- Distrelec 제품 번호:
- 302-61-799
- 제조사 부품 번호:
- 6GT28012BA10
- 제조업체:
- Siemens
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Siemens | |
| Device Type | RFID Reader | |
| Maximum Frequency | 13.56MHz | |
| IP Rating | IP67 | |
| Maximum Operating Temperature | 70°C | |
| Length | 75mm | |
| Depth | 41mm | |
| Standards/Approvals | UL | |
| Width | 75mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Siemens | ||
Device Type RFID Reader | ||
Maximum Frequency 13.56MHz | ||
IP Rating IP67 | ||
Maximum Operating Temperature 70°C | ||
Length 75mm | ||
Depth 41mm | ||
Standards/Approvals UL | ||
Width 75mm | ||
- COO (Country of Origin):
- DE

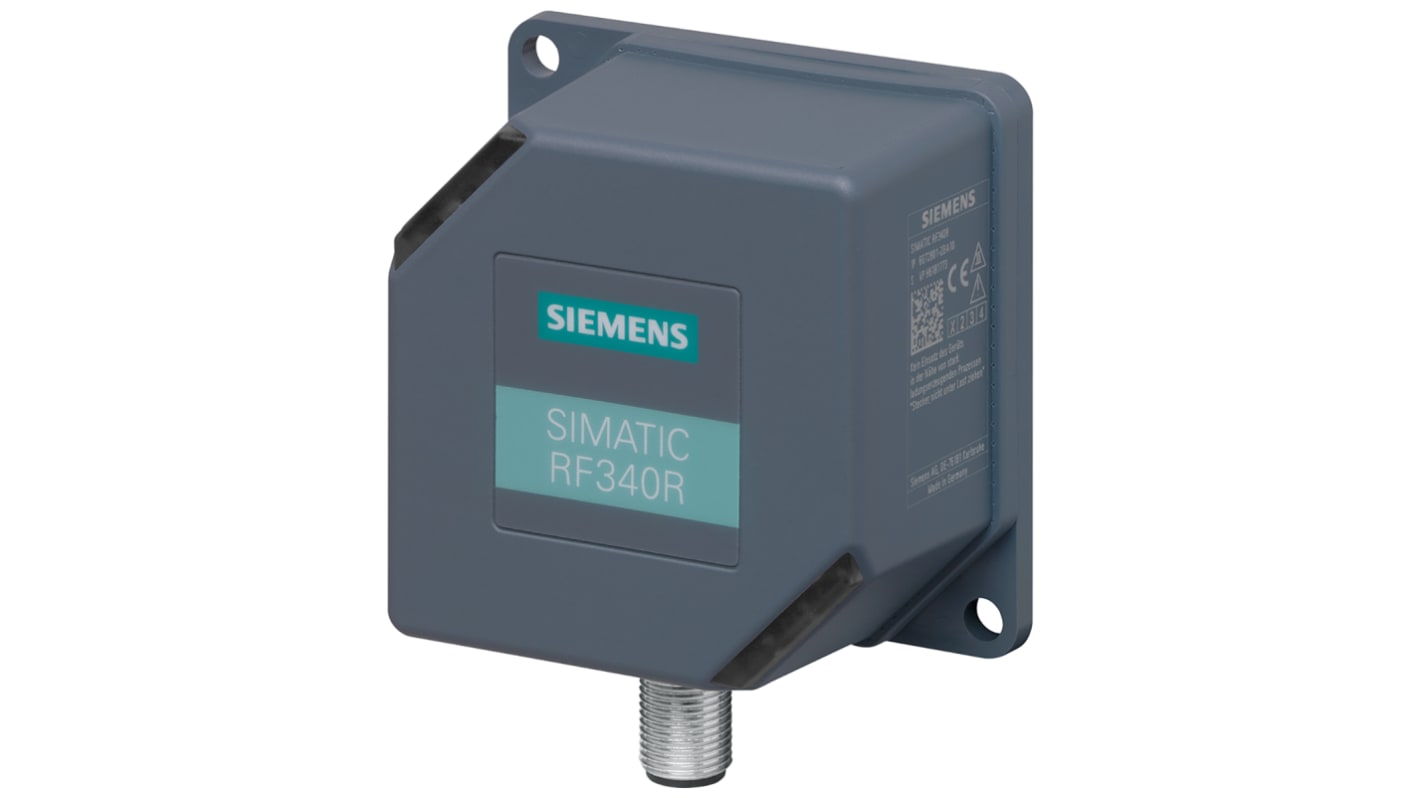

Siemens Bar Code Reader, 140mm Reading Distance, 24V DC Supply Voltage - 6GT28012BA10
This bar code reader serves as an RFID reader designed for seamless integration into industrial applications. It features a robust construction with dimensions of 75 x 75 x 41 mm, enabling efficient operation in demanding environments. With a reading distance of up to 140mm and a maximum operating temperature of +70°C, it is well-suited for various automation tasks.
Features & Benefits
• Capable of reading at a distance of 140mm for flexible use
• Incorporates a reliable RS422 data interface for efficient connectivity
• Features an M12 connection for secure and easy installation
• Low current consumption of 0.06A at 24V DC for energy efficiency
• Compact dimensions enhance installation versatility in tight spaces
Applications
• Utilised with SIMATIC RF300 for automation tasks
• Suitable for connection to communication modules in industrial environments
• Exceptional performance with ISO 15693 and MOBY E transponders
• Ideal for high-temperature requiring robust reading capabilities
What is the significance of the M12 connection type in this device?
The M12 connection type ensures a secure and robust link, essential for industrial applications where vibrations and movement may occur. This design choice enhances the reliability of data transmission during operations.
How does the temperature range impact the usability of this reader?
Its operational temperature range of -25°C to +70°C allows versatility, making it suitable for both cold storage and high-temperature environments, ensuring consistent performance regardless of the conditions.
What kind of data transfer rates can be expected with the RS422 interface?
The RS422 interface supports a maximum serial data transfer rate of 115.2 kbit/s, providing fast and efficient communication with connected devices, enhancing overall system performance.
