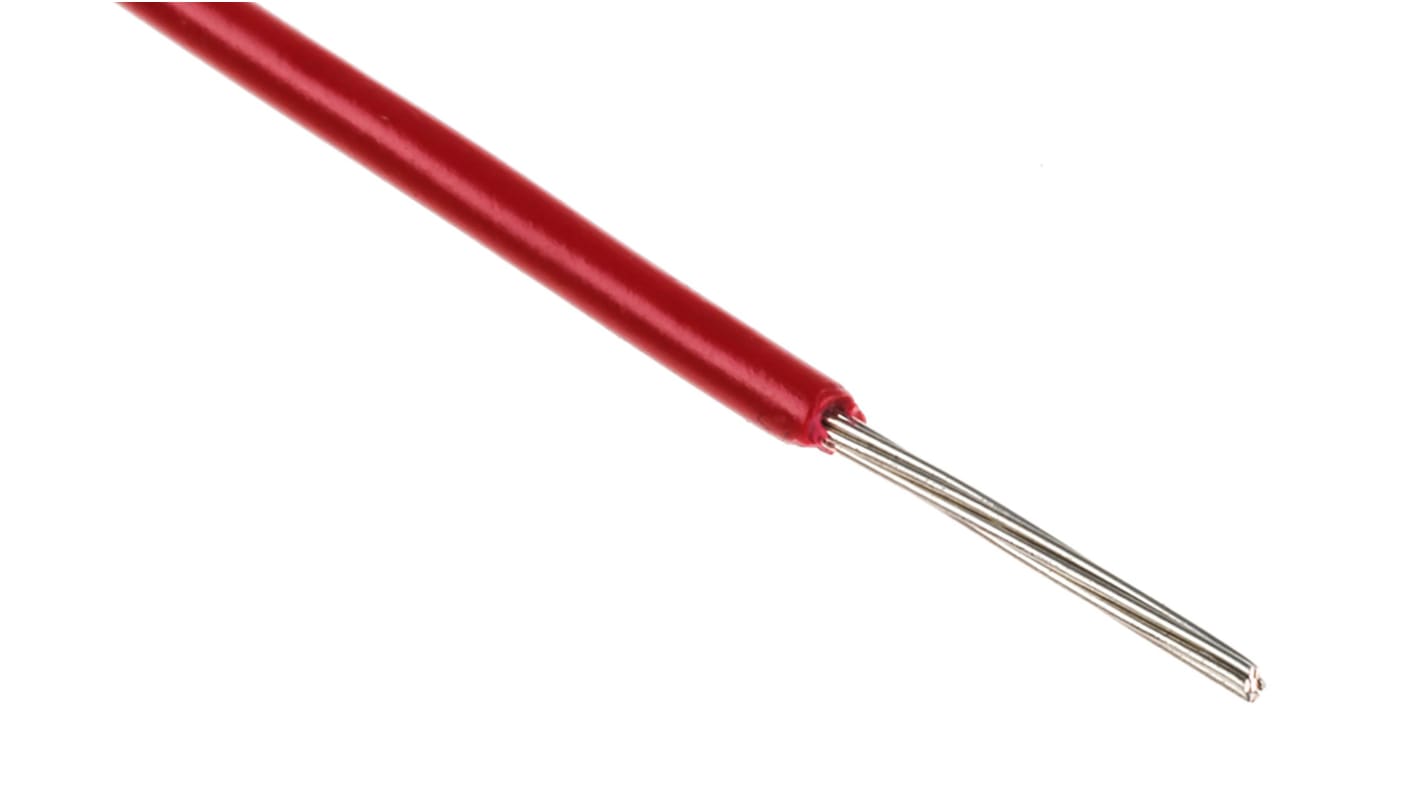

Alpha Wire Hook-up Wire PVC Series Red 0.35 mm² Hook Up Wire, 22 AWG, 7/0.25 mm, 305m, PVC Insulation, 3051 RD001
- RS 제품 번호:
- 842-5319
- Distrelec 제품 번호:
- 301-04-393
- 제조사 부품 번호:
- 3051 RD001
- 제조업체:
- Alpha Wire
대량 구매 할인 기용 가능
Subtotal (1 reel of 305 metres)*
₩287,320.40
재고있음
- 추가로 2026년 1월 19일 부터 26 개 단위 배송
- 추가로 2026년 2월 03일 부터 8 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
릴당 | 릴당 | 미터당* |
|---|---|---|
| 1 - 49 | ₩287,320.40 | ₩941.88 |
| 50 + | ₩277,262.40 | ₩909.92 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 842-5319
- Distrelec 제품 번호:
- 301-04-393
- 제조사 부품 번호:
- 3051 RD001
- 제조업체:
- Alpha Wire
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Alpha Wire | |
| Cross Sectional Area | 0.35 mm² | |
| Sheath Colour | Red | |
| American Wire Gauge | 22 AWG | |
| Cable Shape | Wire/Single Core | |
| Core Strands | 7/0.25 mm | |
| Length | 305m | |
| Insulation Material | PVC | |
| Voltage Rating | 300 V | |
| Outer Diameter | 1.57mm | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -40°C | |
| Conductor Material | Tinned Copper | |
| Cable Type | Harsh Environment | |
| Wire Style | UL1007 | |
| Standards Met | UL Listed | |
| Fire Behaviour | Flame Retardant | |
| Series | Hook-up Wire PVC | |
| Insulation Wall Thickness | 0.41mm | |
| Shield Type | Unshielded | |
| Size of Strands | 0.25 mm | |
| Number of Strands | 7 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Alpha Wire | ||
Cross Sectional Area 0.35 mm² | ||
Sheath Colour Red | ||
American Wire Gauge 22 AWG | ||
Cable Shape Wire/Single Core | ||
Core Strands 7/0.25 mm | ||
Length 305m | ||
Insulation Material PVC | ||
Voltage Rating 300 V | ||
Outer Diameter 1.57mm | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -40°C | ||
Conductor Material Tinned Copper | ||
Cable Type Harsh Environment | ||
Wire Style UL1007 | ||
Standards Met UL Listed | ||
Fire Behaviour Flame Retardant | ||
Series Hook-up Wire PVC | ||
Insulation Wall Thickness 0.41mm | ||
Shield Type Unshielded | ||
Size of Strands 0.25 mm | ||
Number of Strands 7 | ||
- COO (Country of Origin):
- MX
Belden Alpha Wire Red Hook-Up Wire, 1.57mm OD, 300 V - Hook Up Wire Series - 3051
Need a tough wiring solution for your critical applications? This harsh-environment wire from Belden Alpha Wire delivers reliable power to prevent unnecessary downtime. Hardwearing PVC insulates the 22AWG hook-up cable and protects the core from abrasive and chemical damage. It's also fire-resistant for improved safety in dangerous settings. You can use this cable with Alpha Wire FIT heat-shrink tubing (839-5472) to seal terminations and make it more durable.
Features & Benefits
• Red cable jacket for easy identification when used in network installations
• Wide operating temperature range between -40°C to +105°C for use in harsh environments
• Wide operating temperature range between -40°C to +105°C for use in harsh environments
Applications
• Electronic circuits
• Control panels
• Telecommunications systems
• Business equipment
• Computer installations
• Control panels
• Telecommunications systems
• Business equipment
• Computer installations
What conductors does this wire have?
This 3051 hook-up wire uses tinned copper conductors. This allows excellent conductivity of electrical signals and ensures that the wires do not corrode easily.
