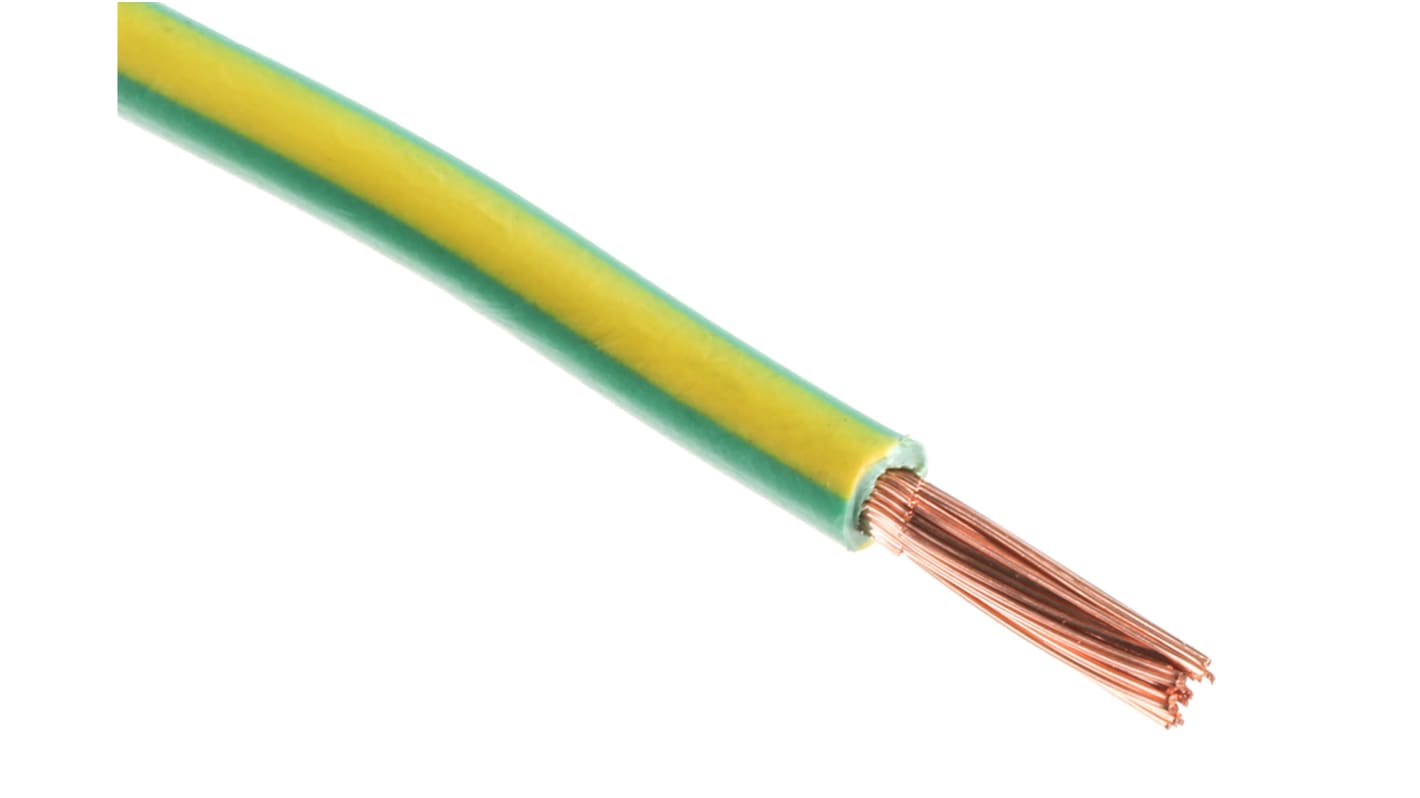

RS PRO H07V2-K Series Green, Yellow 4 mm² Hook Up Wire, 12 AWG, 52, 100 m, Polyvinyl Chloride

모든 Hook Up Wire 열람하기
대량 구매 할인 기용 가능
View bulk pricing options

Subtotal (1 reel of 100 metres)*

₩276,900.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 137 개 단위 배송 준비 완료
  • 추가로 2026년 8월 06일 부터 60 개 단위 배송
  • 추가로 2026년 9월 03일 부터 30 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

릴당
릴당
미터당*
1 - 9₩276,900.00₩2,769.00
10 - 49₩272,044.50₩2,720.25
50 +₩223,918.50₩2,238.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
811-1445
Distrelec 제품 번호:
303-91-231
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Cross Sectional Area

4mm²

Product Type

Hook Up Wire

Jacket Colour

Green, Yellow

American Wire Gauge

12AWG

Core Strands

52

Cable Length

100m

Outside Diameter

4.3mm

Voltage

1kV

Conductor Material

Annealed Copper

Minimum Operating Temperature

-15°C

Sub Type

Tri-Rated

Cable Type

Tri-Rated

Standards/Approvals

CSA C22.2 Type TEW, UK BS 6231, UL 1015

Jacket Material

Polyvinyl Chloride

Series

H07V2-K

COO (Country of Origin):
GB

RS PRO Tri-Rated Switchgear Cable


Tri-Rated Cable gets its name from the fact that it meets the specifications of three different standard-setting bodies. Those designations are:

  • The British Standard Institute (BSI)

  • Underwriters Laboratories (UL)

  • Canadian Standards Association (CSA)

    • Tri-Rated Cable, known as BS6231 Cable, Panel Wire or Switchgear Cable is commonly used in instrumentation panels, motor control centres and motor starters applications.

    We are proudly introducing our own branded RS PRO Tri-Rated Switchgear Cable Class 5 flexible, high-temperature flame retardant Cable. Our Cable is made of flexible copper and encased with PVC (heat resistant polyvinyl chloride) insulation. The advantage of using this type of Cable is that it allows many different approvals to be met from a single Cable type, thereby simplifying purchasing, stockholding, and production. The Switchgear provides Maximum Operating Temperature of up to +90°C (105°C for 15,000 hours).

    Features and Benefits


  • Fine-wire strand made of annealed copper wire presenting high-temperature flame retardant

  • Three approvals making this Switchgear versatile Cable to be used in commercial and non-commercial applications

  • The BS6231 has the maximum operating temperature of +90°C (105° for 15,000 hours), 60°C for oil resistance

  • Meets BS6231 (UK), CSA TEW (Canada) and UL style 1015, 1028 or 1283 according to cable size (USA)

  • Reel of 100 m with insulation wall thickness of 0.8 mm

    • Applications


    This Tri-Rated Switchgear Cable is widely used in power applications, but also in everyday electrical applications like:

  • Electrical Cabinets

  • Switch Control in power Switchgear

  • Relay and instrumentation panels of power Switchgear

  • Internal Connectors in rectifier equipment

  • Motor starters and Controllers

  • Small electrical installations

  • Panel Building

    • Why RS PRO?


    RS PRO is our family brand to go-to and brings you a wide range for high-quality and high-value products to support your project. Trusted by engineers all over the world, every part of every RS PRO product is always rigorously tested against demanding industry standards. We are only giving the RS PRO seal of approval if we are confident of their exceptional quality, which means you can be convinced too.

    Note

    The number of strands used in the construction of the conductors may vary. The figures quoted are nominal. Cables marginally exceed maximum diameter in BS6231 to meet UL/CSA.
