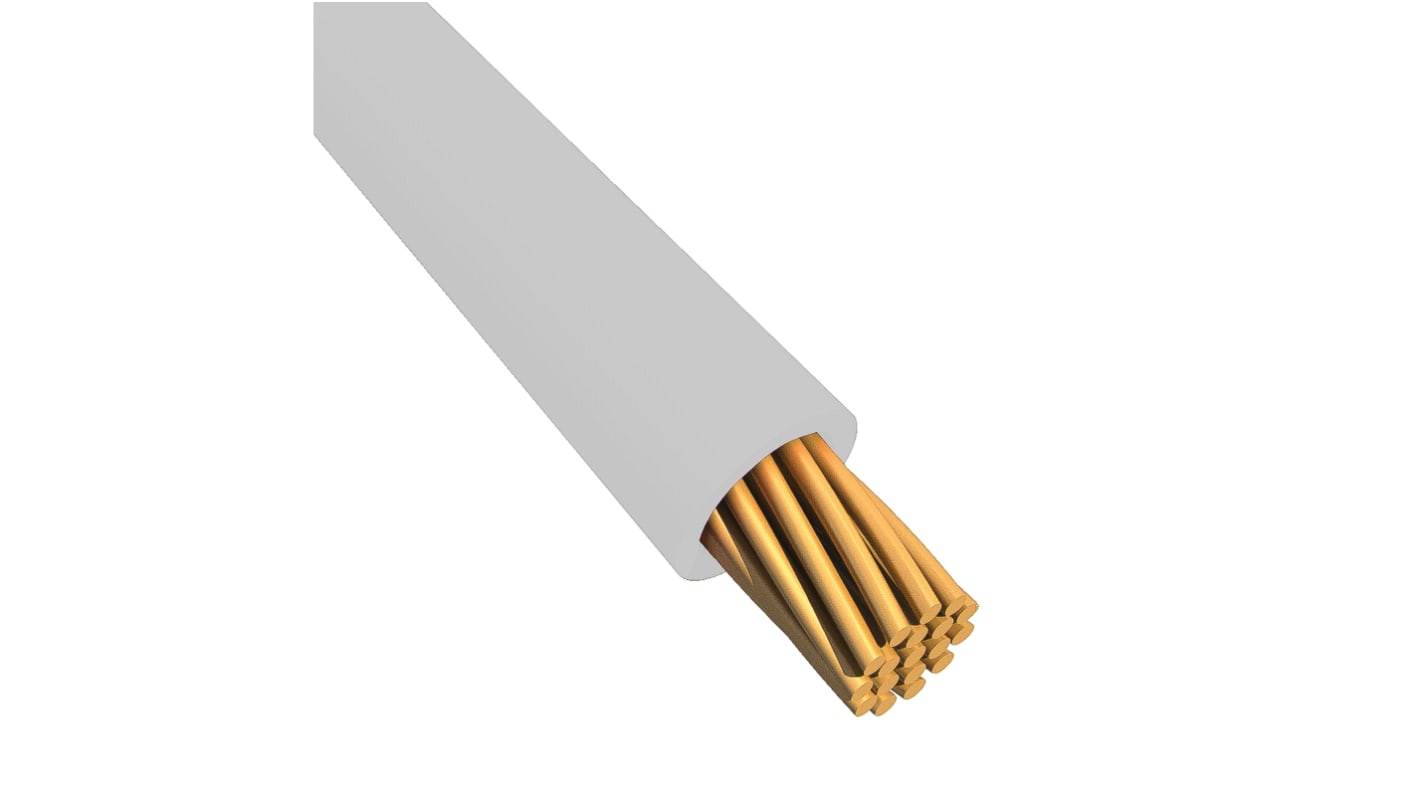

Alpha Wire Ecogen Ecowire Series White 0.2 mm² Hook Up Wire, 24 AWG, 7/0.20 mm, 305m, MPPE Insulation, 6712 WH001
- RS 제품 번호:
- 741-8032
- Distrelec 제품 번호:
- 304-01-650
- 제조사 부품 번호:
- 6712 WH001
- 제조업체:
- Alpha Wire
대량 구매 할인 기용 가능
Subtotal (1 reel of 305 metres)*
₩415,818.40
재고있음
- 추가로 2025년 12월 29일 부터 21 개 단위 배송
- 추가로 2026년 1월 06일 부터 3 개 단위 배송
- 추가로 2026년 1월 13일 부터 12 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
릴당 | 릴당 | 미터당* |
|---|---|---|
| 1 - 49 | ₩415,818.40 | ₩1,363.00 |
| 50 + | ₩395,025.60 | ₩1,295.32 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 741-8032
- Distrelec 제품 번호:
- 304-01-650
- 제조사 부품 번호:
- 6712 WH001
- 제조업체:
- Alpha Wire
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Alpha Wire | |
| Cross Sectional Area | 0.2 mm² | |
| Sheath Colour | White | |
| Cable Shape | Single Core | |
| American Wire Gauge | 24 AWG | |
| Core Strands | 7/0.20 mm | |
| Length | 305m | |
| Insulation Material | MPPE | |
| Voltage Rating | 600 V | |
| Outer Diameter | 1.09mm | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -40°C | |
| Conductor Material | Tinned Copper | |
| Wire Style | UL11028 | |
| Standards Met | CE, CSA, UL | |
| Cable Type | EcoCable | |
| Tri-rated | No | |
| Series | Ecogen Ecowire | |
| Hook Up Wire Type | High Temperature | |
| Insulation Wall Thickness | 0.3mm | |
| Shield Type | Unshielded | |
| Number of Strands | 7 | |
| Size of Strands | 0.2 mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Alpha Wire | ||
Cross Sectional Area 0.2 mm² | ||
Sheath Colour White | ||
Cable Shape Single Core | ||
American Wire Gauge 24 AWG | ||
Core Strands 7/0.20 mm | ||
Length 305m | ||
Insulation Material MPPE | ||
Voltage Rating 600 V | ||
Outer Diameter 1.09mm | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -40°C | ||
Conductor Material Tinned Copper | ||
Wire Style UL11028 | ||
Standards Met CE, CSA, UL | ||
Cable Type EcoCable | ||
Tri-rated No | ||
Series Ecogen Ecowire | ||
Hook Up Wire Type High Temperature | ||
Insulation Wall Thickness 0.3mm | ||
Shield Type Unshielded | ||
Number of Strands 7 | ||
Size of Strands 0.2 mm | ||
Belden Ecogen Ecowire Series Hook Up Wire, 0.2mm² Cross Sectional Area, 600V Voltage Rating - 6712 WH001
This high temperature hook up wire is designed for electrical connections and automation applications. With a cross-sectional area of 0.2 mm², this single-core cable features a white MPPE insulation, ensuring robust performance across various environments. The wire maintains operable temperatures ranging from -40 °C to +105 °C and is crafted from tinned copper.
Features & Benefits
• Unshielded design reduces weight and enhances flexibility
• Rated at 600V for safe electrical performance
• MPPE insulated wire ensures durability in harsh conditions
• Conductor made from tinned copper for excellent conductivity
• Complies with UL11028, guaranteeing high industry standards
• 7 strands of 0.2mm provide enhanced softness for easier handling
• Rated at 600V for safe electrical performance
• MPPE insulated wire ensures durability in harsh conditions
• Conductor made from tinned copper for excellent conductivity
• Complies with UL11028, guaranteeing high industry standards
• 7 strands of 0.2mm provide enhanced softness for easier handling
Applications
• Used for wiring in automation and control systems
• Suitable for interior wiring in electrical panels
• Employed in mechanical requiring high temperature resistance
• Ideal for connecting sensors in various electronic devices
• Suitable for interior wiring in electrical panels
• Employed in mechanical requiring high temperature resistance
• Ideal for connecting sensors in various electronic devices
What is the maximum temperature this wire can withstand?
The wire can operate efficiently within a temperature range of -40 °C to +105 °C, making it suitable for both high and low temperature applications.
How does the wire's construction benefit installation?
The unshielded single-core cable design offers improved flexibility, allowing for easier routing and installation in tight spaces or complex assemblies.
What are the implications of the wire being RoHS compliant?
RoHS compliance means that the wire is manufactured without certain hazardous substances, ensuring environmental safety and compliance with regulations in electrical and electronic equipment.
Can this wire be used in outdoor applications?
While primarily designed for indoor use, it can be used in outdoor applications if adequately protected from direct exposure to environmental elements. Always consider additional insulation if necessary.
EcoWire ™
