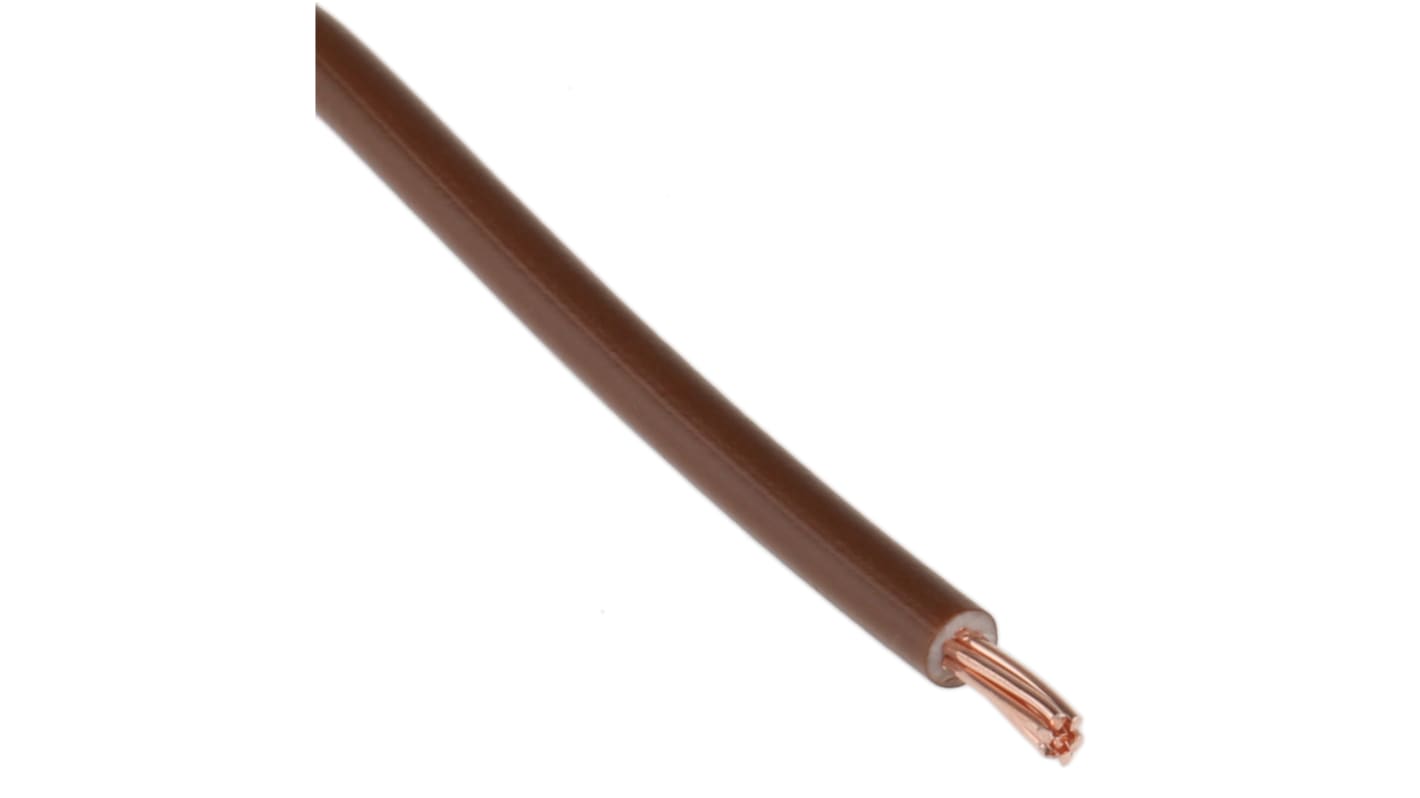

Prysmian 6491X Series Brown 2.5 mm² Hook Up Wire, 7 x 0.67 mm, 670 μm core strands, 100 m, Polyvinyl Chloride, 20145178
- RS 제품 번호:
- 618-9812
- 제조사 부품 번호:
- 20145178
- 제조업체:
- Prysmian
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 reel of 100 units)*
₩205,100.00
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
릴당 | 릴당 | 한팩당* |
|---|---|---|
| 1 - 4 | ₩205,100.00 | ₩2,052.00 |
| 5 + | ₩168,800.00 | ₩1,688.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 618-9812
- 제조사 부품 번호:
- 20145178
- 제조업체:
- Prysmian
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Prysmian | |
| Cross Sectional Area | 2.5mm² | |
| Product Type | Hook Up Wire | |
| Jacket Colour | Brown | |
| Core Strands | 7 x 670 μm | |
| Cable Length | 100m | |
| Voltage | 750V | |
| Outside Diameter | 3.6mm | |
| Maximum Operating Temperature | 70°C | |
| Conductor Material | Annealed Copper | |
| Sub Type | 6491X | |
| Minimum Operating Temperature | -15°C | |
| Jacket Material | Polyvinyl Chloride | |
| Cable Type | Stranded | |
| Standards/Approvals | BASEC BS6004 | |
| Fire Behaviour | Flame Retardant | |
| Series | 6491X | |
| Number of Strands | 7 | |
| Size of Strands | 670μm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Prysmian | ||
Cross Sectional Area 2.5mm² | ||
Product Type Hook Up Wire | ||
Jacket Colour Brown | ||
Core Strands 7 x 670 μm | ||
Cable Length 100m | ||
Voltage 750V | ||
Outside Diameter 3.6mm | ||
Maximum Operating Temperature 70°C | ||
Conductor Material Annealed Copper | ||
Sub Type 6491X | ||
Minimum Operating Temperature -15°C | ||
Jacket Material Polyvinyl Chloride | ||
Cable Type Stranded | ||
Standards/Approvals BASEC BS6004 | ||
Fire Behaviour Flame Retardant | ||
Series 6491X | ||
Number of Strands 7 | ||
Size of Strands 670μm | ||
제외
- COO (Country of Origin):
- GB
6491X Conduit Cable
A conduit cable for installation in closed systems or indoor appliances, light fittings, switch and control gear.
Features and Benefits
Rigid standard wiring cable
Conduit wire
For use under medium mechanical stresses
Approvals
BASEC
Standards
BASEC to BS6004, BS EN 60228, BS EN 50363-3 Type Tl1, BS EN 60332-1-2.
