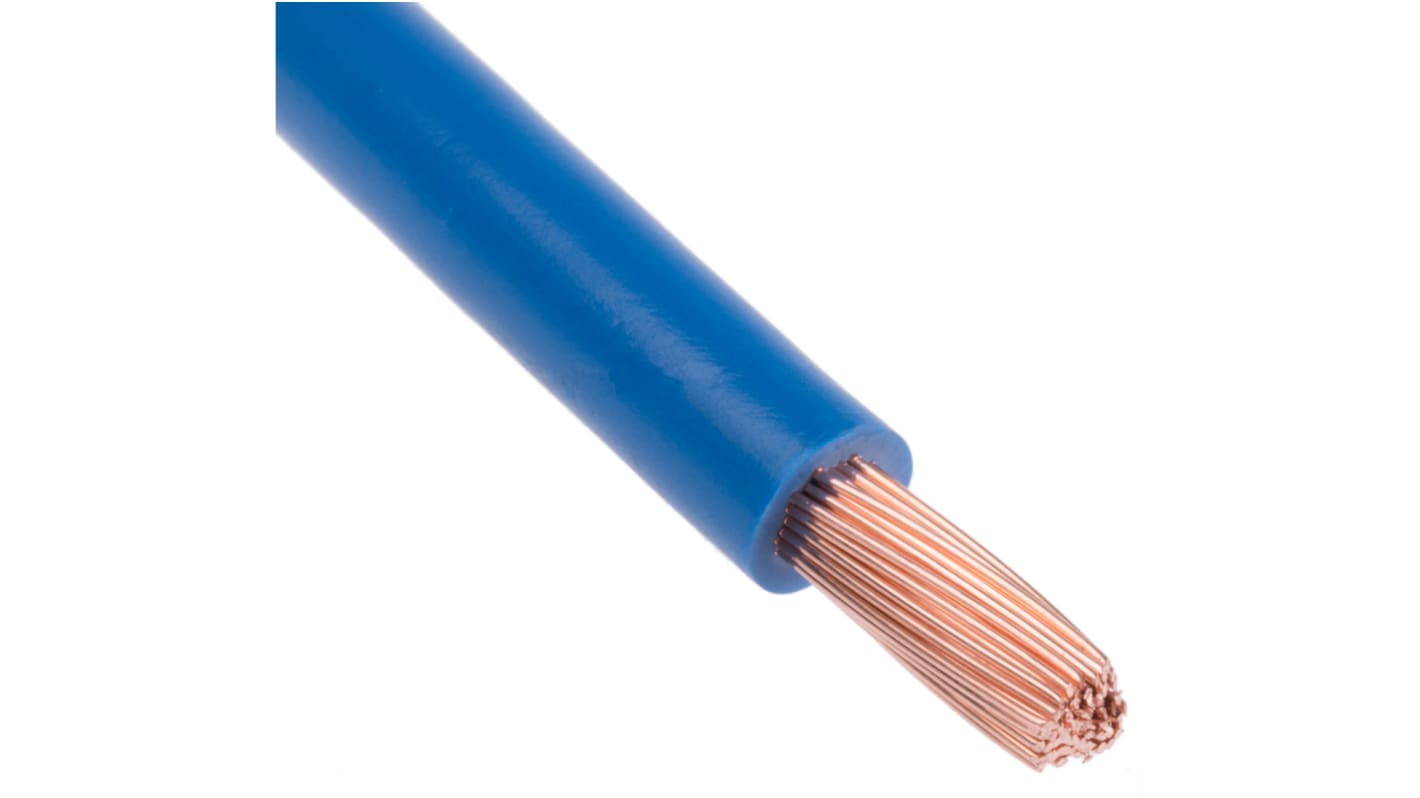

RS PRO Blue 10mm² Hook Up Wire, 7 AWG, 80/0.4 mm, 25m, PVC Insulation

모든 Hook Up Wire 열람하기
대량 구매 할인 기용 가능

Subtotal (1 reel of 25 metres)*

₩198,262.92

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2025년 12월 29일 부터 62 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
릴당
릴당
미터당*
1 - 4₩198,262.92₩7,929.84
5 +₩163,168.96₩6,527.36

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
516-7978
Distrelec 제품 번호:
304-19-453
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Cross Sectional Area

10mm²

Sheath Colour

Blue

Cable Shape

Single Core

American Wire Gauge

7 AWG

Core Strands

80/0.4 mm

Length

25m

Insulation Material

PVC

Outer Diameter

7.2mm

Voltage Rating

600 V

Minimum Operating Temperature

-15°C

Maximum Operating Temperature

+70°C

Current Rating

68 A

Conductor Material

Annealed Copper

Standards Met

BS 6231

Cable Type

Control

Series

FLEXIBLE BK

Shield Type

Unshielded

Insulation Wall Thickness

1mm

Number of Strands

80

Size of Strands

0.4mm

Outer Sheath Material

PVC

COO (Country of Origin):
GB

RS PRO Single Core Control Cable – Type BK


From RS PRO, comes a range of high quality and great value single core control cables. Manufactured with a premium annealed copper conductor and insulated with PVC (polyvinyl chloride). These cables are supplied on a reel and are the ideal solution for switchgear and control gear wiring.

Features and Benefits


• Maximum operating temperature of 70°C
• Voltage rating of 600 V
• 25m length
• Single core cable – Flexible Type BK
• Meets BS6231 standards
• Flame retardant

Applications


Single core control cable has a variety of application use such as;

• Electrical cabinets
• Industrial electrical installations
• Small electronic devices
• Relay and instrumentation panels
• Control metering
• Motor starters

Why would you choose RS PRO for single core control cable?


RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products have been engineered to meet high industry standards, so you are ensured reliable and robust solutions.

Note

The number of strands used in the construction of the conductors may vary. Current rating is quoted for single wire in free air at Tamb = 35°C. Current rating quoted in parenthesis is for two cables, bunched and enclosed in conduit or tranking at Tamb = 35°C.

Standards

BS 6231


BS6231
