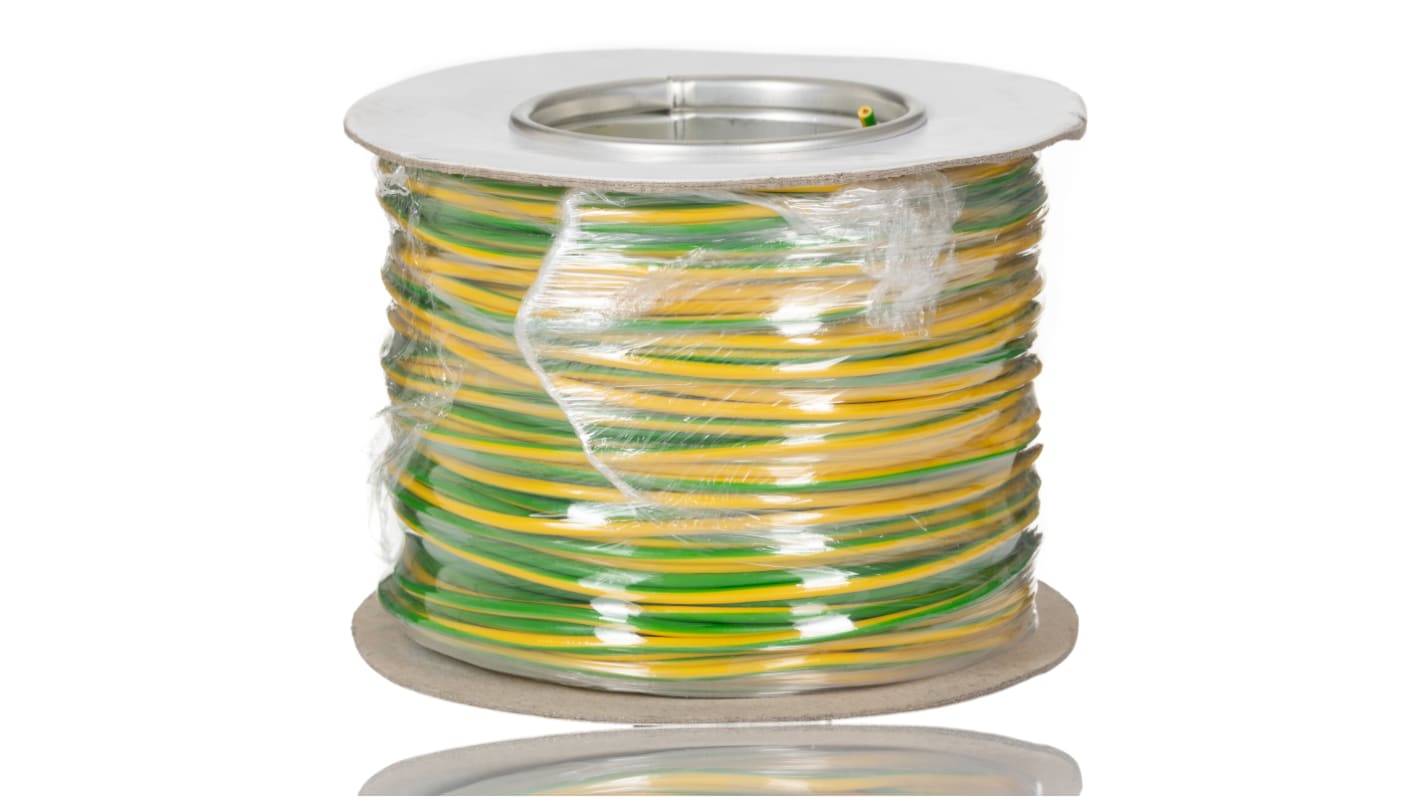

RS PRO Green/Yellow 2.5mm² Hook Up Wire, 14 AWG, 45/0.25mm, 100m, PVC Insulation

RS 제품 번호:: 256-7036
제조업체:: RS PRO

RS PRO Green/Yellow 2.5mm² Hook Up Wire, 14 AWG, 45/0.25mm, 100m, PVC Insulation

Subtotal (1 reel of 100 metres)*

₩148,557.60

재고있음

21 개 단위 배송 준비 완료
추가로 2026년 3월 03일 부터 128 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

릴당	릴당	미터당*
1 +	₩148,557.60	₩1,485.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS 제품 번호:: 256-7036
제조업체:: RS PRO

사양

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	RS PRO
	Cross Sectional Area	2.5mm²
	Sheath Colour	Green/Yellow
	American Wire Gauge	14 AWG
	Cable Shape	Round
	Core Strands	45/0.25mm
	Length	100m
	Insulation Material	PVC
	Voltage Rating	1 kV dc, 600 V ac
	Outer Diameter	3.7mm
	CPR Certification	Eca
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	105°C
	Current Rating	30A
	Conductor Material	Annealed Copper
	Cable Type	PVC Wire
	Wire Style	UL1015
	Standards Met	BS6231
	Fire Behaviour	BS EN 60332-1-2 Vertical Flame Propagation
	Series	1015
	Hook Up Wire Type	Low Carbon
	Better World Claim	Low carbon manufacture
	Better World Product	Yes
	Resistant To	Heat and Oil
	Number of Strands	45
	Size of Strands	mm
	Outer Sheath Material	PVC

	모두 선택
	브랜드 RS PRO
	Cross Sectional Area 2.5mm²
	Sheath Colour Green/Yellow
	American Wire Gauge 14 AWG
	Cable Shape Round
	Core Strands 45/0.25mm
	Length 100m
	Insulation Material PVC
	Voltage Rating 1 kV dc, 600 V ac
	Outer Diameter 3.7mm
	CPR Certification Eca
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 105°C
	Current Rating 30A
	Conductor Material Annealed Copper
	Cable Type PVC Wire
	Wire Style UL1015
	Standards Met BS6231
	Fire Behaviour BS EN 60332-1-2 Vertical Flame Propagation
	Series 1015
	Hook Up Wire Type Low Carbon
	Better World Claim Low carbon manufacture
	Better World Product Yes
	Resistant To Heat and Oil
	Number of Strands 45
	Size of Strands mm
	Outer Sheath Material PVC

COO (Country of Origin):: GB

RS PRO Single Core Low Carbon Copper Wire

Flexible tri-rated hook up wire suitable for use in equipment and installations required to meet both North American and European wiring regulations and codes of practice.

The single core wire is manufactured from Low Carbon Annealed copper for excellent conductivity and has over 2.5 times less CO2 impact than standard Copper Wire resulting in a dramatically reduced carbon footprint. The Copper equipment wire is then wrapped in oil and heat resistant PVC coating making it suitable for industrial and dirty environments.

Ideal for a wide range of applications and intended for use at alternating voltages that do not exceed 600V to earth and direct voltages that do not exceed 1000V to earth.

Features and Benefits

100m in length

Flexible Plain Annealed Copper Class 5

Low Carbon Copper (1.7kg CO2/kg)

Heat Resisting PVC

Tri-rated

Operating temperature of -20 to 105°C

Minimum bending radius 6 x diameter

Standards and Approvals: BS6231 Type CK, UL, CSA, BS EN 60332-1-2, VW-1, FT-1, RoHS Compliant

Why RS PRO?

Looking to reduce costs but keep the same quality?

With a choice of over 65,000 products – all of which are rigorously tested against demanding industry standards before they are given the RS PRO seal of approval.

Trusted by engineers the world over, we want you to be confident that you’re receiving the exceptional quality, reliability and the best value for money.
