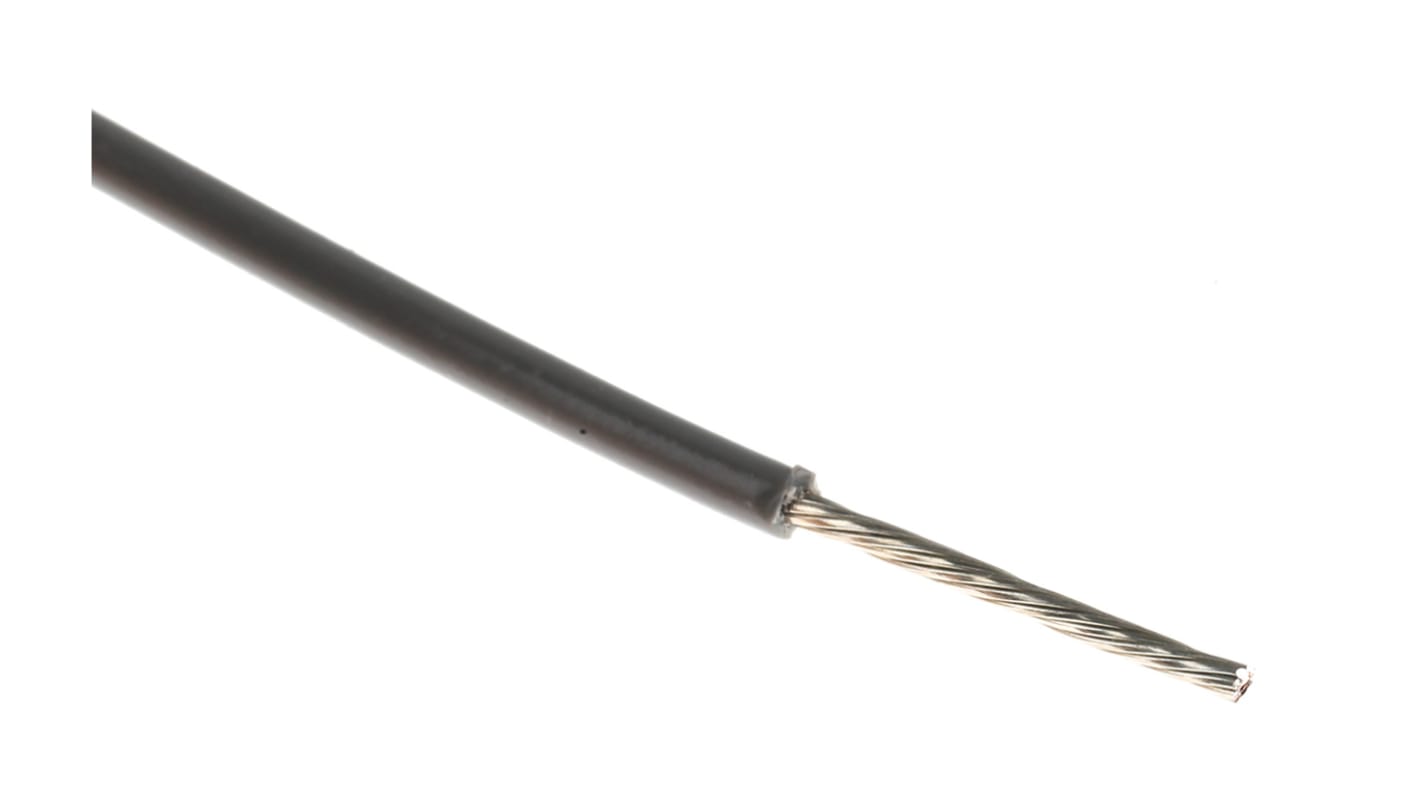

Alpha Wire Hook-up Wire PVC Series Grey 0.51 mm² Hook Up Wire, 20 AWG, 10/0.25 mm, 305m, PVC Insulation, 3053 SL001
- RS 제품 번호:
- 124-2902
- Distrelec 제품 번호:
- 303-02-253
- 제조사 부품 번호:
- 3053 SL001
- 제조업체:
- Alpha Wire
대량 구매 할인 기용 가능
Subtotal (1 reel of 304 metres)*
₩284,387.60
일시적 품절
- 2026년 1월 13일 부터 8 개 단위 배송
- 추가로 2026년 3월 03일 부터 8 개 단위 배송
- 추가로 2026년 3월 17일 부터 9 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
릴당 | 릴당 | 미터당* |
|---|---|---|
| 1 - 24 | ₩284,387.60 | ₩936.24 |
| 25 + | ₩270,174.80 | ₩889.24 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 124-2902
- Distrelec 제품 번호:
- 303-02-253
- 제조사 부품 번호:
- 3053 SL001
- 제조업체:
- Alpha Wire
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Alpha Wire | |
| Cross Sectional Area | 0.51 mm² | |
| Sheath Colour | Grey | |
| American Wire Gauge | 20 AWG | |
| Cable Shape | Single Core | |
| Core Strands | 10/0.25 mm | |
| Length | 305m | |
| Insulation Material | PVC | |
| Outer Diameter | 1.75mm | |
| Voltage Rating | 300 V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +105°C | |
| Conductor Material | Tinned Copper | |
| Standards Met | UL Listed | |
| Wire Style | UL1007 | |
| Fire Behaviour | Flame Retardant | |
| Series | Hook-up Wire PVC | |
| Shield Type | Unshielded | |
| Insulation Wall Thickness | 0.4mm | |
| Size of Strands | 0.25 mm | |
| Number of Strands | 10 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Alpha Wire | ||
Cross Sectional Area 0.51 mm² | ||
Sheath Colour Grey | ||
American Wire Gauge 20 AWG | ||
Cable Shape Single Core | ||
Core Strands 10/0.25 mm | ||
Length 305m | ||
Insulation Material PVC | ||
Outer Diameter 1.75mm | ||
Voltage Rating 300 V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +105°C | ||
Conductor Material Tinned Copper | ||
Standards Met UL Listed | ||
Wire Style UL1007 | ||
Fire Behaviour Flame Retardant | ||
Series Hook-up Wire PVC | ||
Shield Type Unshielded | ||
Insulation Wall Thickness 0.4mm | ||
Size of Strands 0.25 mm | ||
Number of Strands 10 | ||
Belden Premium Series Hook Up Wire, 0.52mm² Cross Sectional Area, Grey Sheath Colour - 3053 SL005
This hook-up wire is designed for high-performance applications within the automation and electronics sectors. With a cross-sectional area of 0.52 mm² and constructed from tinned copper, it offers robust conductivity and efficiency. The wire is encased in grey PVC insulation and measures 30m in length, catering to diverse wiring needs.
Features & Benefits
• High-temperature tolerance up to +105 °C ensures reliability
• Resistant to oil, solvents, and chemicals for durability
• Flame-retardant properties enhance safety in use
• Complies with UL1007 standards for consistent quality
• Single-core design simplifies installation in various setups
• 300 V rating supports a wide range of electrical applications
• Resistant to oil, solvents, and chemicals for durability
• Flame-retardant properties enhance safety in use
• Complies with UL1007 standards for consistent quality
• Single-core design simplifies installation in various setups
• 300 V rating supports a wide range of electrical applications
Applications
• Commonly used in electrical panel wiring
• Ideal for connections in automation systems
• Suitable for internal wiring of machinery
• Utilised in residential and commercial electrical installations
• Ideal for connections in automation systems
• Suitable for internal wiring of machinery
• Utilised in residential and commercial electrical installations
What makes the construction material significant for performance?
The use of tinned copper ensures enhanced conductivity while providing resistance to corrosion, which prolongs the wire's lifespan and maintains consistent electrical performance.
Can it be used in environments with extreme temperatures?
Yes, it functions effectively within a broad temperature range from -40 °C to +105 °C, making it suitable for various applications, including those in harsh environments.
How does the insulation contribute to the overall performance?
The PVC insulation not only provides electrical isolation but also protects the wire from physical damage, chemical exposure, and flame, ensuring safety and longevity in diverse applications.
What kind of installations is this wire particularly suited for?
This wire is well-suited for internal connections in control panels and electrical cabinets, where space constraints and reliable performance are critical.
