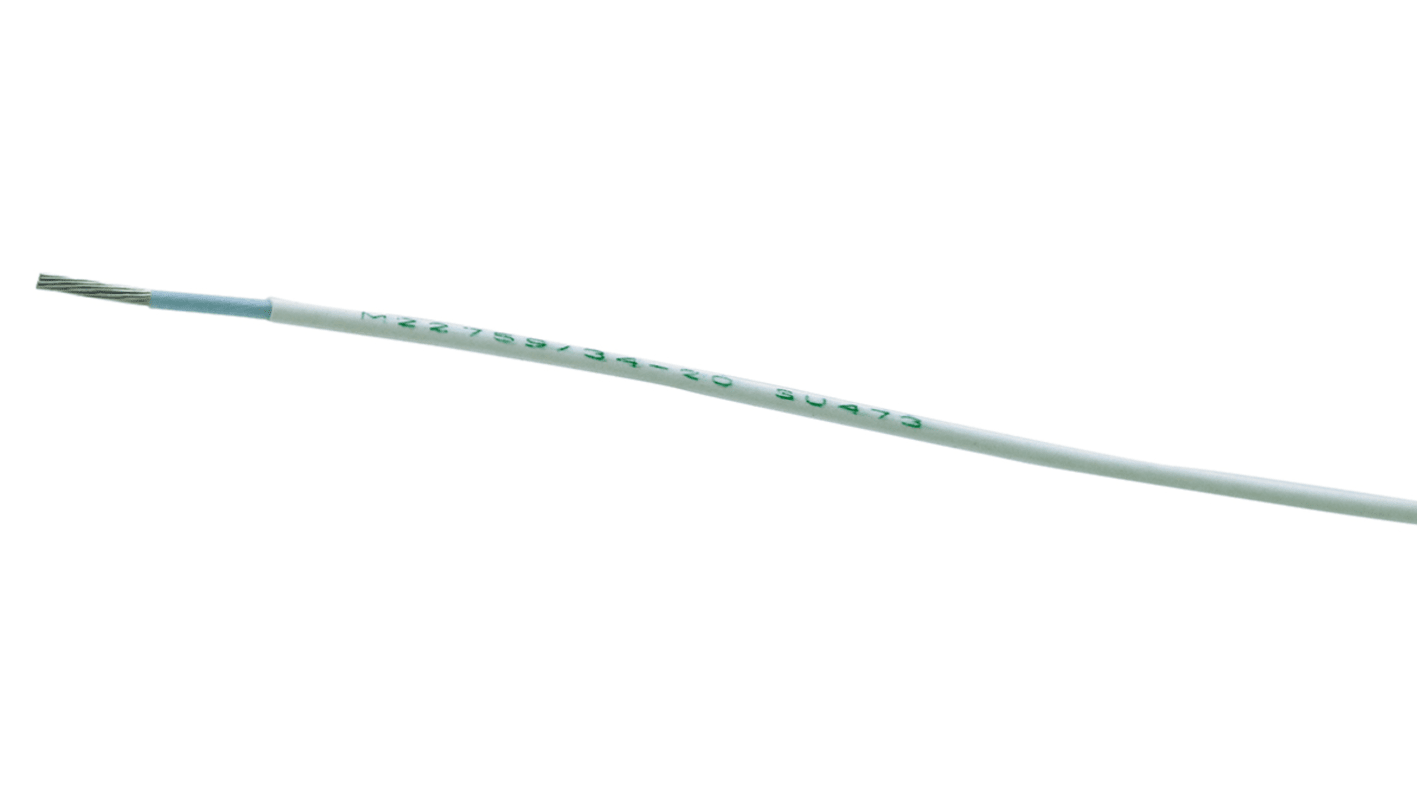

TE Connectivity M22759 Series White 3.31 mm² Hook Up Wire, 12 AWG, 37 / 28 AWG, 100m, ETFE Insulation, M22759/32-12-9
- RS 제품 번호:
- 113-5780
- 제조사 부품 번호:
- M22759/32-12-9
- 제조업체:
- TE Connectivity
대량 구매 할인 기용 가능
Subtotal (1 reel of 100 metres)*
₩546,215.20
재고있음
- 추가로 2025년 12월 29일 부터 13 개 단위 배송
- 추가로 2025년 12월 29일 부터 2 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
릴당 | 릴당 | 미터당* |
|---|---|---|
| 1 - 49 | ₩546,215.20 | ₩5,461.40 |
| 50 + | ₩529,840.40 | ₩5,297.84 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 113-5780
- 제조사 부품 번호:
- M22759/32-12-9
- 제조업체:
- TE Connectivity
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | TE Connectivity | |
| Cross Sectional Area | 3.31 mm² | |
| Sheath Colour | White | |
| American Wire Gauge | 12 AWG | |
| Cable Shape | Single Core | |
| Core Strands | 37 / 28 AWG | |
| Length | 100m | |
| Insulation Material | ETFE | |
| Outer Diameter | 2.62mm | |
| Voltage Rating | 600 V ac | |
| Minimum Operating Temperature | -65°C | |
| Maximum Operating Temperature | +150°C | |
| Conductor Material | Copper | |
| Wire Style | MIL-W-22759 | |
| Cable Type | Harsh Environment | |
| Series | M22759 | |
| Number of Strands | 37 | |
| Size of Strands | 28 AWG | |
| 모두 선택 | ||
|---|---|---|
브랜드 TE Connectivity | ||
Cross Sectional Area 3.31 mm² | ||
Sheath Colour White | ||
American Wire Gauge 12 AWG | ||
Cable Shape Single Core | ||
Core Strands 37 / 28 AWG | ||
Length 100m | ||
Insulation Material ETFE | ||
Outer Diameter 2.62mm | ||
Voltage Rating 600 V ac | ||
Minimum Operating Temperature -65°C | ||
Maximum Operating Temperature +150°C | ||
Conductor Material Copper | ||
Wire Style MIL-W-22759 | ||
Cable Type Harsh Environment | ||
Series M22759 | ||
Number of Strands 37 | ||
Size of Strands 28 AWG | ||
TE Connectivity M22759 Harsh Environment Wire
The M22759 wire is ideal for use with a wide range of commercial and military aerospace or ground system applications. Its particular role can make this wire perfect for harsh environments. The airframe version has a dual layer insulation.
Features and Benefts
• Small diameter
• Low smoke and corrosive gas generation
• Chemiscal resistant and electrical arc tracking
• Cross linked insulation
• Tough physical characteristics
• High temperature ratings up to +150°C
• Stranded tin plated copper conductor
• Crosslinked ETFE insulation
• Low smoke and corrosive gas generation
• Chemiscal resistant and electrical arc tracking
• Cross linked insulation
• Tough physical characteristics
• High temperature ratings up to +150°C
• Stranded tin plated copper conductor
• Crosslinked ETFE insulation
