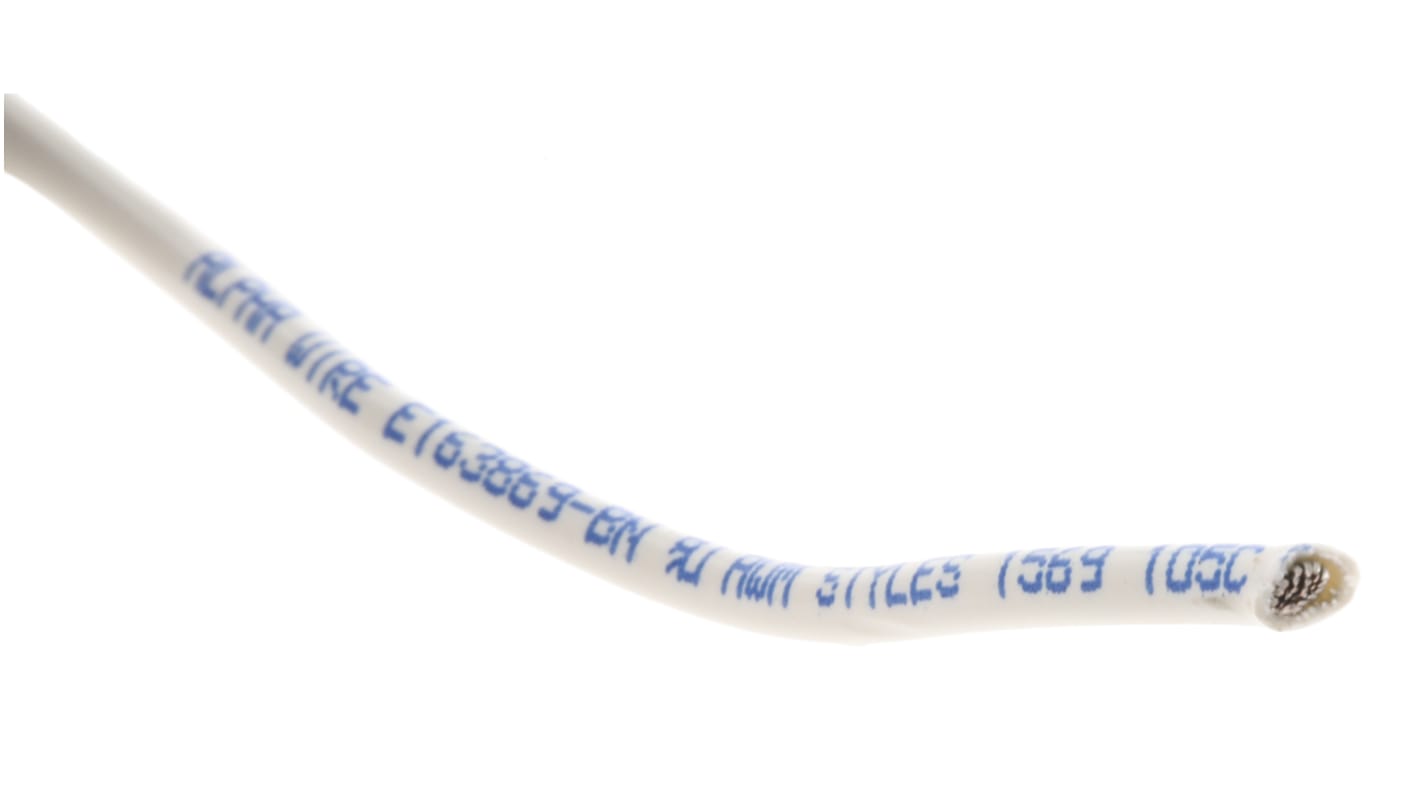

Alpha Wire White Hook Up Wire, 16 AWG, 26, 30 m, Polyvinyl Chloride, 3057 WH005
- RS 제품 번호:
- 333-385
- Distrelec 제품 번호:
- 300-83-100
- 제조사 부품 번호:
- 3057 WH005
- 제조업체:
- Alpha Wire
대량 구매 할인 기용 가능
Subtotal (1 reel of 30 metres)*
₩74,490.00
일시적 품절
- 2026년 5월 12일 부터 74 개 단위 배송
- 추가로 2026년 6월 02일 부터 209 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
릴당 | 릴당 | 미터당* |
|---|---|---|
| 1 - 24 | ₩74,490.00 | ₩2,482.35 |
| 25 + | ₩70,765.50 | ₩2,359.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 333-385
- Distrelec 제품 번호:
- 300-83-100
- 제조사 부품 번호:
- 3057 WH005
- 제조업체:
- Alpha Wire
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Alpha Wire | |
| Product Type | Hook Up Wire | |
| Jacket Colour | White | |
| American Wire Gauge | 16AWG | |
| Core Strands | 26 | |
| Cable Length | 30m | |
| Outside Diameter | 2.34mm | |
| Voltage | 300V | |
| Maximum Operating Temperature | 105°C | |
| Conductor Material | Copper | |
| Minimum Operating Temperature | -40°C | |
| Cable Type | Hookup | |
| Standards/Approvals | UL Listed | |
| Jacket Material | Polyvinyl Chloride | |
| Fire Behaviour | Flame Retardant | |
| 모두 선택 | ||
|---|---|---|
브랜드 Alpha Wire | ||
Product Type Hook Up Wire | ||
Jacket Colour White | ||
American Wire Gauge 16AWG | ||
Core Strands 26 | ||
Cable Length 30m | ||
Outside Diameter 2.34mm | ||
Voltage 300V | ||
Maximum Operating Temperature 105°C | ||
Conductor Material Copper | ||
Minimum Operating Temperature -40°C | ||
Cable Type Hookup | ||
Standards/Approvals UL Listed | ||
Jacket Material Polyvinyl Chloride | ||
Fire Behaviour Flame Retardant | ||
Belden Hookup Wire PVC Series Hook Up Wire, 1.32mm² Cross Sectional Area, White Jacket - 3057 WH001
This hook-up wire is a white-jacketed PVC-insulated conductor designed for internal wiring and interconnection tasks across automation, electronics, electrical and mechanical assemblies. It combines flexible multi-strand tin-plated copper with PVC insulation to perform in moderate-to-high temperature environments and flame-exposed installations while meeting multiple industrial and aerospace acceptance standards.
Features & Benefits
• 300V rating provides safe operation in control circuits
• 26-strand tin copper conductor ensures good flexibility
• 1.32 mm² cross section supports reliable current-carrying capacity
• 105 °C maximum temperature allows use near heat sources
• Flame-retardant jacket reduces fire propagation risk
• Broad standards list enables integration in certified systems
• 26-strand tin copper conductor ensures good flexibility
• 1.32 mm² cross section supports reliable current-carrying capacity
• 105 °C maximum temperature allows use near heat sources
• Flame-retardant jacket reduces fire propagation risk
• Broad standards list enables integration in certified systems
**Applications**
• Suitable for internal wiring of control panels and cabinets
• Ideal for harnesses in aerospace and defence equipment
• Used with sensors, relays and Terminal blocks in automation
• Can be used for machine tool and motor control wiring
• Used for replacement wiring in avionics and military assemblies
• Ideal for harnesses in aerospace and defence equipment
• Used with sensors, relays and Terminal blocks in automation
• Can be used for machine tool and motor control wiring
• Used for replacement wiring in avionics and military assemblies
What conductor construction provides the cable’s flexibility?
The conductor is composed of 26 strands of tin-plated copper, which increases bendability compared with solid conductors and eases routing in confined looms.
How is the product packaged for long runs?
It is supplied on continuous flanges and spools in lengths such as 5000 ft, 1000 ft and 100 ft to accommodate bulk assembly or small-scale repairs.
What environmental chemical regulations are addressed?
Materials are manufactured to comply with RoHS and REACH requirements, and the item does not contain SVHCs above 0.1% by mass.
What mechanical handling limits should be observed during installation?
The specified maximum pull tension is 20.4 lb and a recommended bend radius of 10x cable diameter should be maintained to avoid conductor damage.
Standards
UL AWM 1007, 1581, 1569 VW-1, CSA AWM I A/B FT1, CSA TR-64 FT1
