Alpha Wire Premium Series Black Hook Up Wire, 20 AWG, 10, 30 m, 3053 BK005
- RS 제품 번호:
- 331-862
- Distrelec 제품 번호:
- 300-83-060
- 제조사 부품 번호:
- 3053 BK005
- 제조업체:
- Alpha Wire
대량 구매 할인 기용 가능
Subtotal (1 reel of 30 units)*
₩19,909.50
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
릴당 | 릴당 | 한팩당* |
|---|---|---|
| 1 - 24 | ₩19,909.50 | ₩663.00 |
| 25 + | ₩19,500.00 | ₩649.35 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 331-862
- Distrelec 제품 번호:
- 300-83-060
- 제조사 부품 번호:
- 3053 BK005
- 제조업체:
- Alpha Wire
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Alpha Wire | |
| Product Type | Hook Up Wire | |
| Jacket Colour | Black | |
| American Wire Gauge | 20AWG | |
| Core Strands | 10 | |
| Cable Length | 30m | |
| Voltage | 300V | |
| Outside Diameter | 1.75mm | |
| Maximum Operating Temperature | 105°C | |
| Conductor Material | Tinned Copper | |
| Standards/Approvals | UL Listed | |
| Sub Type | UL1007 | |
| Cable Type | Single Core | |
| Minimum Operating Temperature | -40°C | |
| Fire Behaviour | Flame Retardant | |
| Series | Premium | |
| 모두 선택 | ||
|---|---|---|
브랜드 Alpha Wire | ||
Product Type Hook Up Wire | ||
Jacket Colour Black | ||
American Wire Gauge 20AWG | ||
Core Strands 10 | ||
Cable Length 30m | ||
Voltage 300V | ||
Outside Diameter 1.75mm | ||
Maximum Operating Temperature 105°C | ||
Conductor Material Tinned Copper | ||
Standards/Approvals UL Listed | ||
Sub Type UL1007 | ||
Cable Type Single Core | ||
Minimum Operating Temperature -40°C | ||
Fire Behaviour Flame Retardant | ||
Series Premium | ||

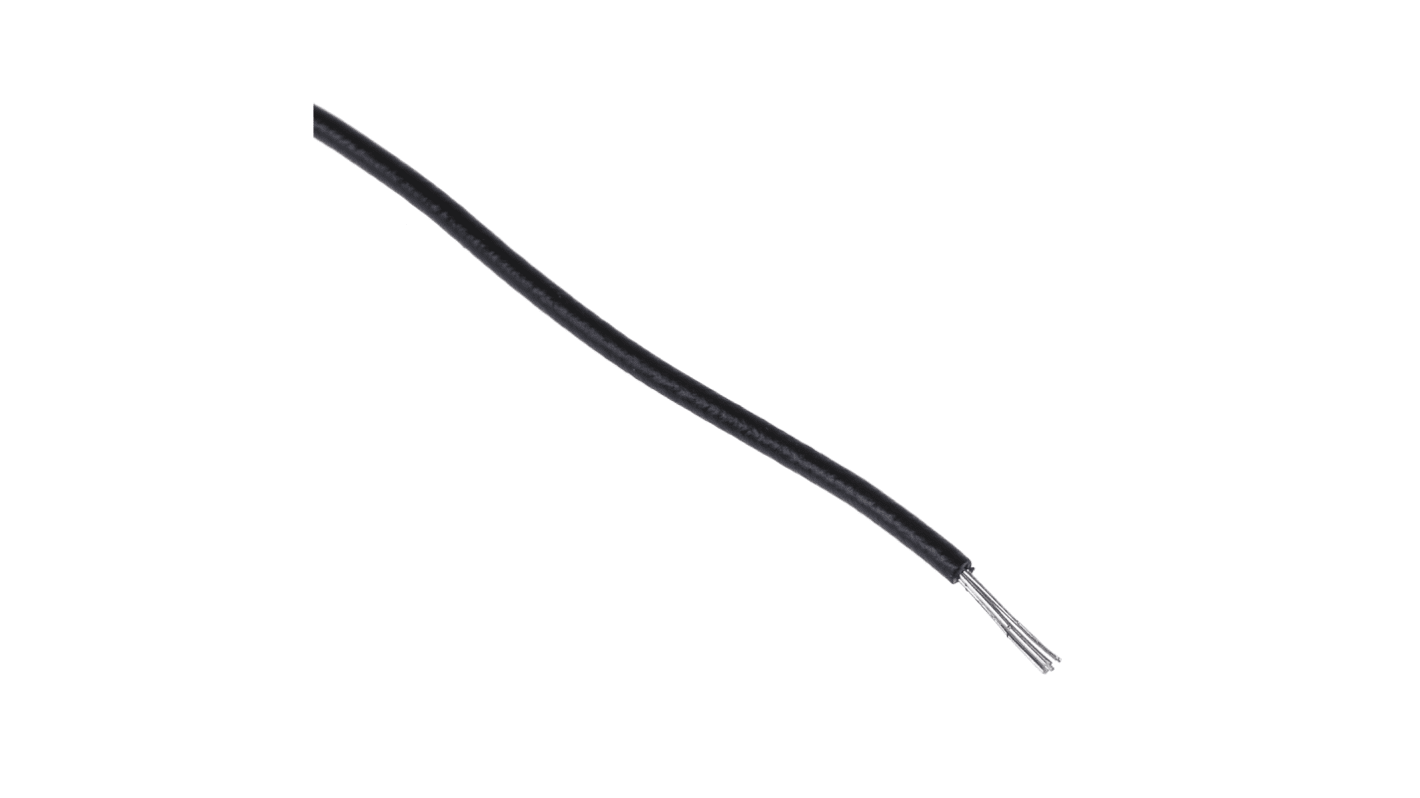

Belden Alpha Wire Single Core Cable Hook-Up Wire, 0.51mm² Cross-Sectional Area - Premium Series - 3053
Use this robust and reliable hook-up wire from Belden's Alpha Wire range to keep your electrical equipment operating smoothly. It's wrapped in PVC (polyvinyl chloride) material, which has excellent insulating properties and avoids overheating. As the cable is unshielded, you'll find it easy to strip and terminate for quick installation. It also delivers a bend radius 10 times its cable diameter for flexible wiring in tight spaces.
Features & Benefits
• Tinned copper conductor is resistant to corrosion even in wet environments
• Broad operating temperature range of -40°C to +105°C for use in extreme conditions
• Flame-retardant PVC insulation means it self-extinguishes in the event of a fire
• 1.75mm outer diameter for durability
Applications
• Telecommunications
• Domestic appliances
• Commercial catering
What is a single-core cable?
A single-core cable like this one is also known as a solid-core cable. It has only one strand of conductor, which is made from braided copper. Single-core cables are tougher than stranded cables.
