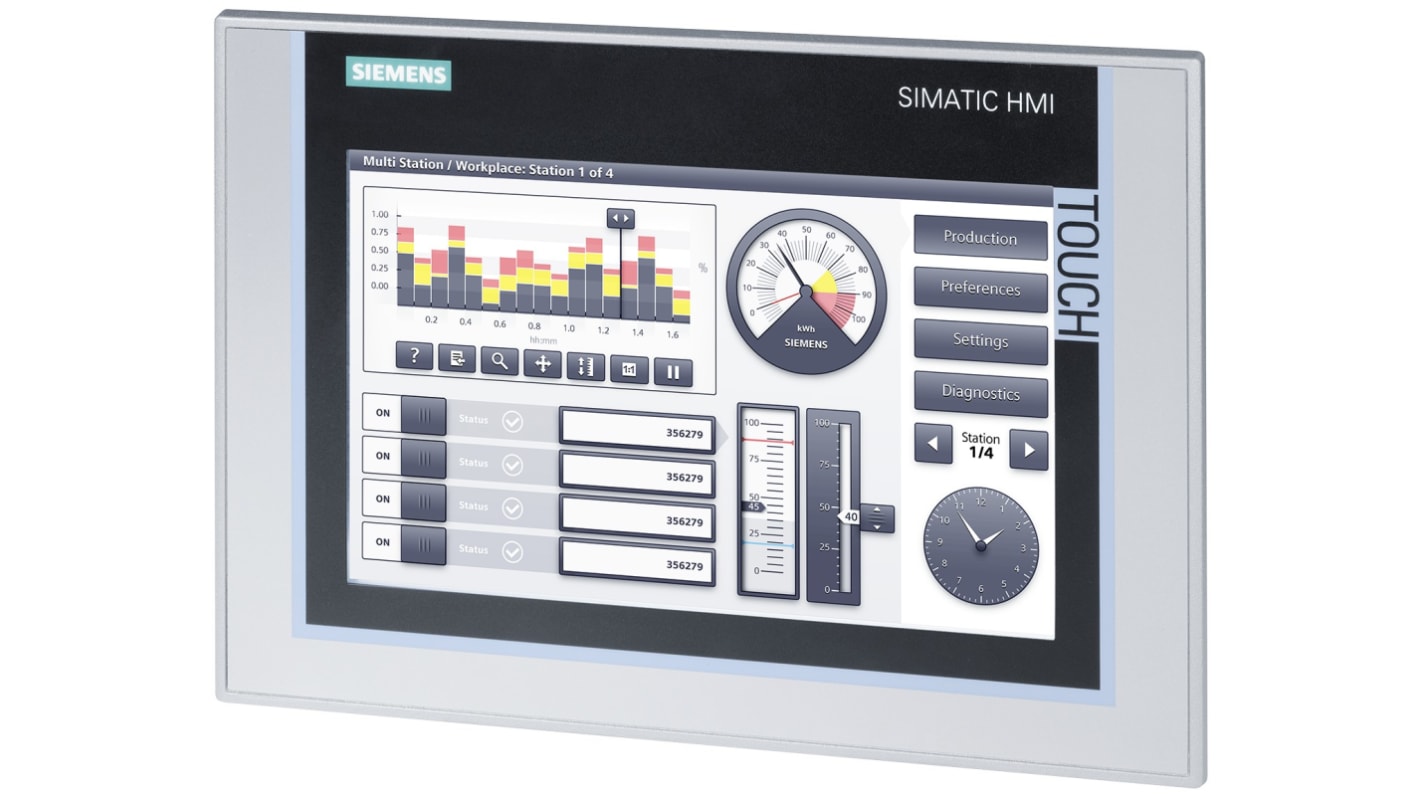

Siemens SIMATIC, TP900 Comfort Series HMI Panel - 9 in, TFT Display, 800 x 480 pixel
- RS 제품 번호:
- 864-3973
- Distrelec 제품 번호:
- 304-10-621
- 제조사 부품 번호:
- 6AV2124-0JC01-0AX0
- 제조업체:
- Siemens
Subtotal (1 unit)*
₩8,269,740.00
재고있음
- 추가로 2026년 11월 23일 부터 20 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩8,269,740.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 864-3973
- Distrelec 제품 번호:
- 304-10-621
- 제조사 부품 번호:
- 6AV2124-0JC01-0AX0
- 제조업체:
- Siemens
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Siemens | |
| Series | SIMATIC, TP900 Comfort | |
| Product Type | HMI Panel | |
| Display Type | TFT | |
| Display Resolution | 800 x 480 pixel | |
| Number of Ports | 3 | |
| Port Type | Ethernet, USB | |
| Minimum Operating Temperature | 0°C | |
| Onboard Memory | 12MB | |
| Maximum Operating Temperature | 50°C | |
| Diagonal Display Size | 9in | |
| Backlighting | Yes | |
| Depth | 63mm | |
| Length | 274mm | |
| Standards/Approvals | CE, RCM, cULus, KC | |
| Width | 190mm | |
| IP Rating | IP65, IP20 | |
| Display Colour | Colour | |
| Hazardous Area Certification | ATEX, IECEx | |
| 모두 선택 | ||
|---|---|---|
브랜드 Siemens | ||
Series SIMATIC, TP900 Comfort | ||
Product Type HMI Panel | ||
Display Type TFT | ||
Display Resolution 800 x 480 pixel | ||
Number of Ports 3 | ||
Port Type Ethernet, USB | ||
Minimum Operating Temperature 0°C | ||
Onboard Memory 12MB | ||
Maximum Operating Temperature 50°C | ||
Diagonal Display Size 9in | ||
Backlighting Yes | ||
Depth 63mm | ||
Length 274mm | ||
Standards/Approvals CE, RCM, cULus, KC | ||
Width 190mm | ||
IP Rating IP65, IP20 | ||
Display Colour Colour | ||
Hazardous Area Certification ATEX, IECEx | ||
- COO (Country of Origin):
- CN
Siemens Touch-Screen HMI, 9-Inch Display, 800 x 480px Resolution - TP900 Series - 6AV2124-0JC01-0AX0
This HMI from Siemens makes it easy to manage your appliances. Its TFT technology gives you an intuitive touch-based interface for simple automated task control, while a large 9-inch display means there's plenty of space to read and compare graphical information. It has an image resolution of 800 by 480px, which gives you a clear picture even with complicated data. This device comes with HMI software that performs all basic programming functions, making it easy to improve the efficiency of your hardware. It has a fully dimmable backlit screen so you can adjust its brightness for maximum clarity in both light and dark workspaces.
• 12MB built-in memory easily processes your commands for fast machine control
• Automatic system diagnostics make it easy to address faults
• Supports up to 16 million colours for a detailed picture
• Connects to external keyboards and mice via USB for a convenient user interface
• Pre-installed operating system for quick and simple startup
Which operating system does this HMI use?
This HMI uses a version of Windows CE built specifically for it.
