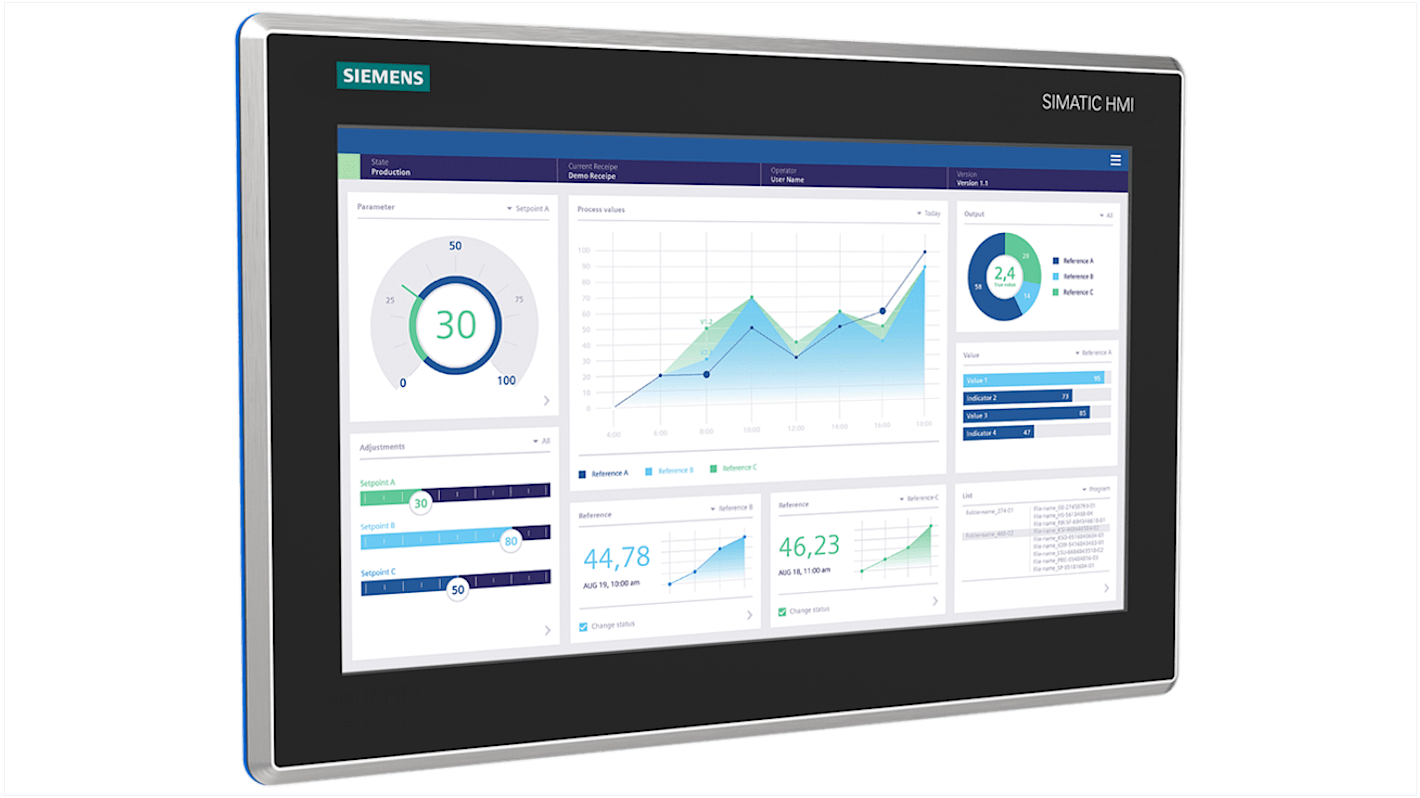

Siemens SIMATIC Series HMI Panel - 15.6 in, TFT Display, 1366 x 768 pixel

RS 제품 번호:: 282-3488
제조사 부품 번호:: 6AV2128-3QB40-0AX0
제조업체:: Siemens

Siemens SIMATIC Series HMI Panel - 15.6 in, TFT Display, 1366 x 768 pixel

Subtotal (1 unit)*

₩10,507,920.00

제조사가 재고 비축중

2026년 9월 28일 부터 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩10,507,920.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 282-3488
제조사 부품 번호:: 6AV2128-3QB40-0AX0
제조업체:: Siemens

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Siemens
	Series	SIMATIC
	Product Type	HMI Panel
	Display Type	TFT
	Display Resolution	1366 x 768 pixel
	Number of Ports	2
	Port Type	2 x SD card, 4 x USB, COM, RS422/485, 2 x Ethernet
	Onboard Memory	12MB
	Minimum Operating Temperature	0°C
	Maximum Operating Temperature	50°C
	Backlighting	Yes
	Diagonal Display Size	15.6in
	Width	412mm
	Standards/Approvals	CE, UKCA, EAC
	Depth	79mm
	IP Rating	IP20, IP69
	Hazardous Area Certification	No

	모두 선택
	브랜드 Siemens
	Series SIMATIC
	Product Type HMI Panel
	Display Type TFT
	Display Resolution 1366 x 768 pixel
	Number of Ports 2
	Port Type 2 x SD card, 4 x USB, COM, RS422/485, 2 x Ethernet
	Onboard Memory 12MB
	Minimum Operating Temperature 0°C
	Maximum Operating Temperature 50°C
	Backlighting Yes
	Diagonal Display Size 15.6in
	Width 412mm
	Standards/Approvals CE, UKCA, EAC
	Depth 79mm
	IP Rating IP20, IP69
	Hazardous Area Certification No

COO (Country of Origin):: DE

Siemens 6AV2128 Series HMI Panel, 15.6 inches Diagonal Display size, 1366x768 Display Resolution - 6AV2128-3QB40-0AX0

This HMI panel provides a human–machine Interface for industrial control systems, offering a colour TFT display for operator monitoring and interaction. It is designed for automation environments where Visual clarity and multiple connectivity options are required, supporting standard industrial communication and storage Interfaces while operating within typical ambient temperature ranges.

Features & Benefits

• 15.6in diagonal display delivers clearer process visualisation
• 1366x768 resolution enables finer graphical detail rendering
• Backlighting maintains legibility under varied lighting
• 12MB onboard memory allows local configuration storage
• Multiple ports provide flexible peripheral and network connections

Applications

• Suitable for factory-floor machine control panels requiring Visual feedback
• Ideal for supervisory stations needing Ethernet and USB connectivity
• Used for process Visualisation where handheld configuration via SD is required
• Can be used for communication bridging with RS422 and RS485 devices
• Used with electrical panels where IP-rated protection is necessary

How many external storage and peripheral interfaces are available?

There are two SD card slots, four USB ports and additional serial ports for peripherals.

Which communication interfaces support networked control systems?

Two Ethernet ports enable integration into industrial networks alongside COM and serial links.

What ingress protection levels does it provide for installation planning?

The enclosure carries IP20 and IP69 ratings to guide placements from protected cabinets to high-cleaning areas.

What operating temperature constraints should installers observe?

The device is specified for operation between 0°C to 50°C, so cooling or heating measures may be needed outside this range.
