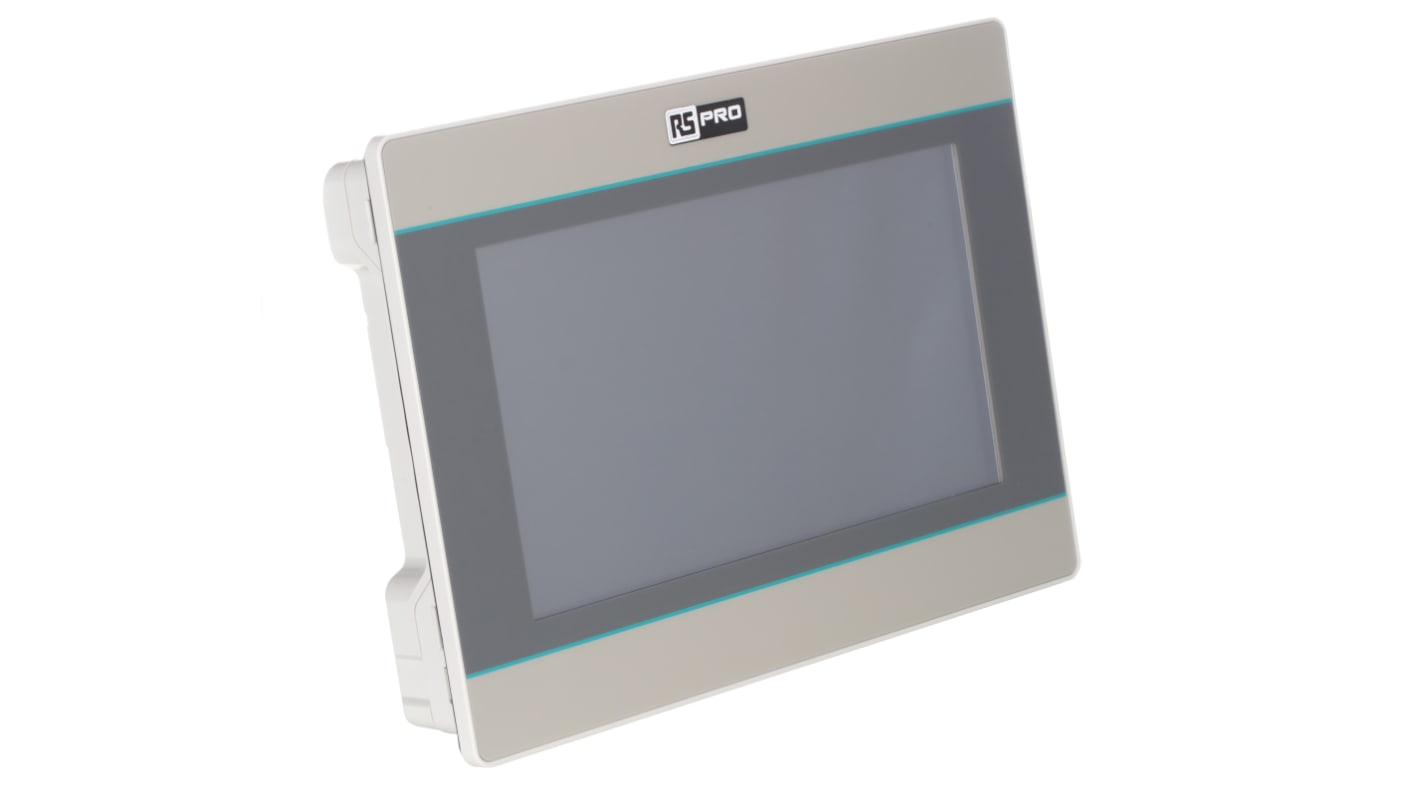

RS PRO PI Series HMI Panel - 177.8 mm, TFT LCD Display, 800 x 480 pixel

모든 HMI Displays 열람하기

Subtotal (1 unit)*

₩305,640.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 4 개 단위 배송 준비 완료
  • 추가로 2026년 9월 02일 부터 10 개 단위 배송
  • 추가로 2026년 9월 30일 부터 10 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩305,640.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
215-6604
Distrelec 제품 번호:
304-18-632
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Series

PI

Product Type

HMI Panel

Display Type

TFT LCD

Display Resolution

800 x 480 pixel

Number of Ports

2

Port Type

RS422/485, COM, RS232, USB 2.0

Minimum Operating Temperature

-10°C

Onboard Memory

128MB

Maximum Operating Temperature

60°C

Backlighting

Yes

Diagonal Display Size

177.8mm

Depth

39mm

Width

201mm

Standards/Approvals

CE, RoHS

Length

201.2mm

IP Rating

IP65

Hazardous Area Certification

No

COO (Country of Origin):
CN

RS PRO Touch-Screen HMI Display - 7 in, Entry level TFT Display, 800 x 480 pixels


RS PRO is proud to introduce a range of HMI display units used to monitor machines, perform tasks and visualise operational status. These HMI display screens are available in 7in and 10.2in, can be panel mounted or used as a stand-alone device, offer quick boot-time, fluent touch-screen, and excellent communication stability. Each version is a joy to use, the graphics are brilliant with easy selection options Plus built-in ethernet to support a variety of networks.

Processor Cortex A7


Our HMI display units are powered by the impressive Cortex A7 processor. It delivers more single-thread performance and visualisation support in hardware. Cortex A7 is a world-class CPU Ideal for HMI solutions and delivers similar performance to the Cortex A9 at higher power levels.

Features and Benefits


  • Large capacity library

  • Enhanced software security

  • Less boot-time

  • Better waterproof and cooling

  • Fast screen update

  • Faster screen switch

  • Fluent touch

  • Improved communication stability

  • Touchscreen HMI displays

    • Specification


  • Display: Colour

  • Display Type: TFT

  • Interface: USB/ Ethernet

  • Memory: 128M FLASH, 128M DDRAM

  • Backlighting

  • Supply Voltage: 24 VDC

  • Operating Temperature: -10 °C to 60 °C

  • 16,000 K colours

  • IP65

    • Dimensions


  • 7in colour display - 201 x 147 x 39 mm

  • 10 in colour display 272 x 192 x 41.5 mm

    • RS PRO Touchscreen HMI Display Variants


  • 7 in screen, USB Interface

    • RS stock no: 215-6604

  • 7 in screen, USB, Ethernet Interface

    • RS stock no: 215-6605

  • 10.2 in screen, USB, Ethernet Interface

    • RS stock no: 215-6606

    Application


  • Industrial and Commercial Environments

  • Process control systems

  • Information solution

  • Air-traffic control

    • FAQ’s


    What does HMI mean?

    HMI means 'human-machine interface'.

    What is their purpose?

    Intended to Streamline the use of machinery by connecting personnel to machines or systems. Common applications include connecting to PLCs, RTU's and IEDs, their purpose is to provide a Visual performance of machines and their progress.

    For the suitable software download please see the RS PRO Software and Manuals download centre(https://www.rs-online.com/designspark/rs-pro-software-and-manuals)
