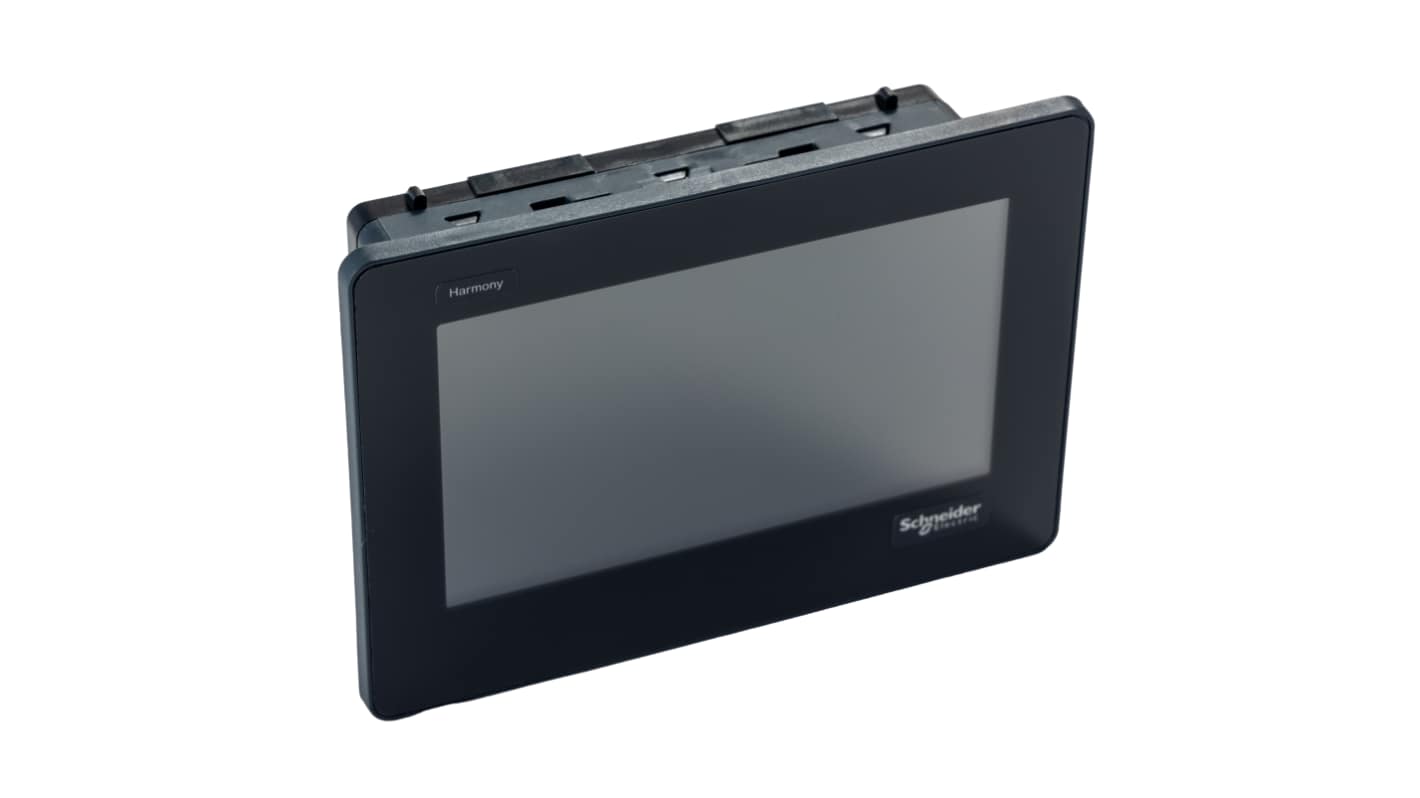

Schneider Electric Magelis STO & STU Series Touch Screen HMI - 4.3 in, TFT LCD Display, 480 x 272 pixel

RS 제품 번호:: 134-8651
Distrelec 제품 번호:: 304-10-496
제조사 부품 번호:: HMISTO735
제조업체:: Schneider Electric

Schneider Electric Magelis STO & STU Series Touch Screen HMI - 4.3 in, TFT LCD Display, 480 x 272 pixel

Subtotal (1 unit)*

₩918,740.00

19 개 단위 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩918,740.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 134-8651
Distrelec 제품 번호:: 304-10-496
제조사 부품 번호:: HMISTO735
제조업체:: Schneider Electric

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Schneider Electric
	Series	Magelis STO & STU
	Product Type	Touch Screen HMI
	Display Type	TFT LCD
	Display Resolution	480 x 272 pixel
	Number of Ports	3
	Port Type	Ethernet
	Minimum Operating Temperature	0°C
	Onboard Memory	512kB
	Maximum Operating Temperature	50°C
	Diagonal Display Size	4.3in
	Backlighting	Yes
	Depth	90.4mm
	Length	124.9mm
	Standards/Approvals	C-Tick, UL, EN 61000-6-2, KCC, CSA, CE, ANSI/ISA 12-12-01, EN 61000-6-4, GOST, UL 61010-1, cUL, EN 61131-2
	Width	38.8mm
	IP Rating	IP65, IP20
	Hazardous Area Certification	ATEX

	모두 선택
	브랜드 Schneider Electric
	Series Magelis STO & STU
	Product Type Touch Screen HMI
	Display Type TFT LCD
	Display Resolution 480 x 272 pixel
	Number of Ports 3
	Port Type Ethernet
	Minimum Operating Temperature 0°C
	Onboard Memory 512kB
	Maximum Operating Temperature 50°C
	Diagonal Display Size 4.3in
	Backlighting Yes
	Depth 90.4mm
	Length 124.9mm
	Standards/Approvals C-Tick, UL, EN 61000-6-2, KCC, CSA, CE, ANSI/ISA 12-12-01, EN 61000-6-4, GOST, UL 61010-1, cUL, EN 61131-2
	Width 38.8mm
	IP Rating IP65, IP20
	Hazardous Area Certification ATEX

Schneider Electric Touch Screen HMI, 124.9mm Length, IP20/IP65 - HMISTO735

This touch screen HMI enhances user interaction within automation, electronics, and mechanical systems. With a compact 4.3-inch TFT LCD display, it offers high-resolution visuals for effective monitoring and control. The device features robust connectivity options, making it essential for various industrial applications.

Features & Benefits

• 4.3-inch display with 480x272 pixel resolution improves visibility

• Colour TFT LCD technology supports 65536 hues for clear images

• Multiple connectivity options, including Ethernet and USB ports

• Supports up to 8999 pages for extensive application versatility

• IP65-rated front panel protects against dust and water ingress

• Built-in backup memory safeguards essential data during power loss

Applications

• Compatible with various automation protocols such as Modbus TCP

• Suitable for monitoring and controlling manufacturing processes

• Utilised in electronics for intuitive operation and display

• Ideal for panel mounting in industrial environments

What power supply is compatible with the device?

The device operates on a supply voltage range of 12 to 24V DC, allowing flexibility in power sourcing.

How can I integrate this with existing systems?

It is compatible with protocols from Omron, Mitsubishi, Siemens, and Allen-Bradley, facilitating seamless integration.

What is the recommended operating temperature range?

The ambient temperature for operation ranges from 0 to 50°C, ensuring stable performance in varying conditions.

What are the options for mounting the display?

The touch screen can be mounted using two installation fasteners on panels 1.5 to 6mm thick.

How long is the lifespan of the backlighting?

The backlighting has an estimated lifespan of 50,000 hours, ensuring prolonged usability without frequent replacements.
