Microchip Hillstar GestIC Development Kit for MGC3130
- RS 제품 번호:
- 798-3110
- 제조사 부품 번호:
- DM160218
- 제조업체:
- Microchip
모든 HMI Development Tools 열람하기
일시 품절-다음 입고 날짜는 15/09/2023 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
단가 Each
₩407,372.00
수량 | 한팩당 |
1 - 4 | ₩407,372.00 |
5 + | ₩399,224.00 |
- RS 제품 번호:
- 798-3110
- 제조사 부품 번호:
- DM160218
- 제조업체:
- Microchip
제정법과 컴플라이언스
제품 세부 사항
MGC3130 Hillstar GestIC® Development Kit
The Microchip MGC3130 Hillstar Development Kit is a platform for evaluating and developing 3D gesture recognition systems. The kit operates as a complete reference design and features the MGC3130 3D gesture controller which incorporates Microchips GestIC® 3D gesture recognition technology.
The kit senses gestures like air wheels and flicks in the free space above the device through the detection of changes in a transmitted electrical field caused by interaction with the users hand. The spatial arrangement of the electrodes allows the MGC3130 controller to determine the centre of this electric field distortion, allowing the controller to interpret hand gestures. In addition to 3D gestures the MGC3130 controller can provide real-time XYZ tracking.
Designing 3D gestures into applications is straightforward using the Aurea software development kit which provides direct access to the GestIC® Colibri gesture library hosted on the MGC3130 controller.
The kit senses gestures like air wheels and flicks in the free space above the device through the detection of changes in a transmitted electrical field caused by interaction with the users hand. The spatial arrangement of the electrodes allows the MGC3130 controller to determine the centre of this electric field distortion, allowing the controller to interpret hand gestures. In addition to 3D gestures the MGC3130 controller can provide real-time XYZ tracking.
Designing 3D gestures into applications is straightforward using the Aurea software development kit which provides direct access to the GestIC® Colibri gesture library hosted on the MGC3130 controller.

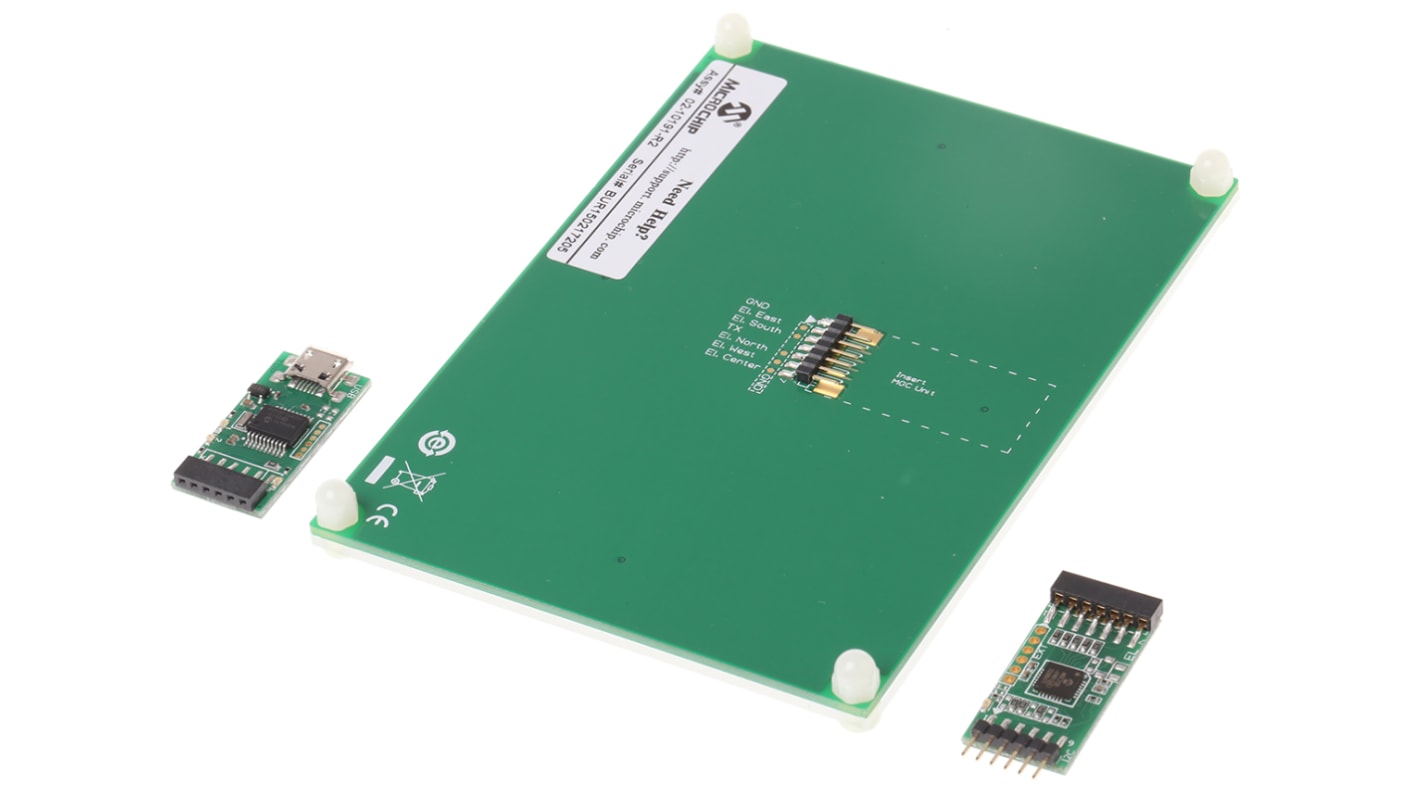

Kit Contents
MGC3130 3D Gesture Controller Module
I2C to USB Bridge Module
Reference Electrode (95x60 mm sensitive area)
Hand brick set (self-assembly, four foam blocks, one copper foil)
USB Cable
I2C to USB Bridge Module
Reference Electrode (95x60 mm sensitive area)
Hand brick set (self-assembly, four foam blocks, one copper foil)
USB Cable
Note
For applications that do not require real time 3D tracking and only need 3D gesture recognition the MGC3030 Woodstar GestIC Development Kit (Microchip part DM160226) is a suitable alternative to consider.
Human Machine Interface (HMI), Microchip
사양
속성 | 값 |
Kit Classification | Development Kit |
Featured Device | MGC3130 |
Kit Name | Hillstar GestIC |
