Transcend TS512GMTE470A-I M.2 (2242) 512 GB Internal SSD

모든 Hard Drives 열람하기
공급 부족
글로벌 공급 부족으로 인해 언제 재입고될지 모릅니다.
RS 제품 번호:
174-263
제조사 부품 번호:
TS512GMTE470A-I
제조업체:
Transcend
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Transcend

Product Type

SSD

Memory Size

512GB

Model Number

TS512GMTE470A-I

Internal/External

Internal

Industrial Grade

Yes

Form Factor

M.2 (2242)

NAND Type

3D

Encryption Level

256 bit AES

Interface Type

PCIe Gen 3.0 x4 NVMe

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Length

42mm

Height

3.58mm

Standards/Approvals

No

Width

22mm

COO (Country of Origin):
TW

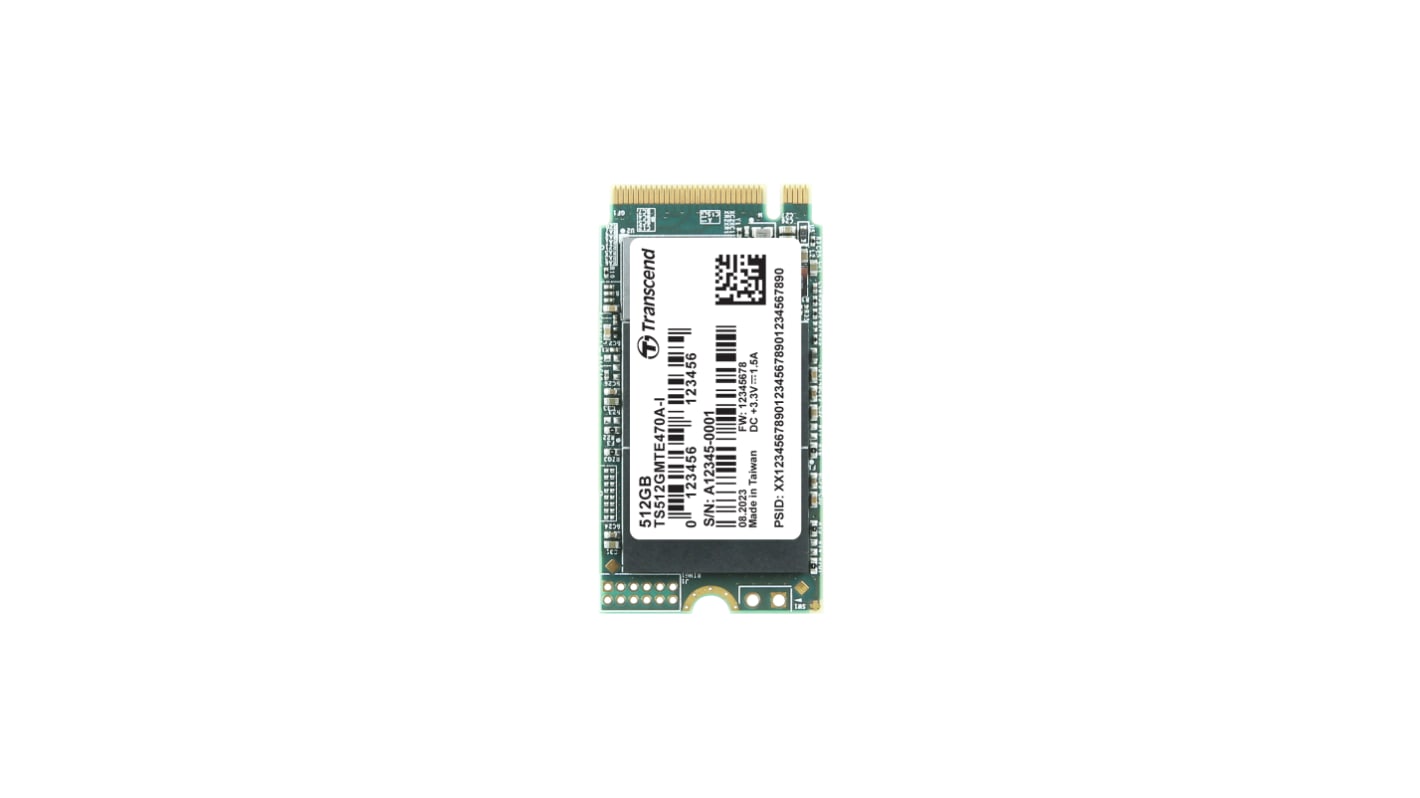

Transcend SSD, 512GB Capacity, M.2 (2242) Form Factor - TS512GMTE470A-I


This SSD is a Compact internal storage device designed for high-performance data handling in industrial settings. It connects via a PCIe Gen3 x4 NVMe Interface to deliver Rapid access for automation and electronics systems, and is built to operate reliably across a broad temperature range in demanding installations.

Features and Benefits:


• 512GB capacity provides substantial local storage for large datasets • 256-bit AES encryption secures data at rest for protected operations • 3D NAND technology increases storage density and endurance • Industrial-grade construction tolerates extreme temperature cycling • PCIe Gen3 x4 NVMe bandwidth reduces latency for real-time tasks • Low-profile height supports slim, space-constrained designs

Applications


• Suitable for embedded controllers in factory automation • Ideal for data logging in electrical test stations • Used with control panels requiring Compact solid-state storage • Can be used for onboard storage in mechanical diagnostics units • Used for buffering high-speed sensor data in robotics systems

What temperature range can it handle during operation?


It functions across -40°C to 85°C, enabling use in hot racks and cold enclosures.

How does the form factor affect integration into equipment?


The M.2 2242 form factor and 42mm length allow installation in Compact slots on industrial motherboards.

What physical profile is required for tight-fit assemblies?


A low-profile 3.58mm component height permits fitting under constrained covers and slim chassis.

Is this device intended for internal or external deployment?


It is designed for internal use, mounted directly onto system boards for permanent installation.
