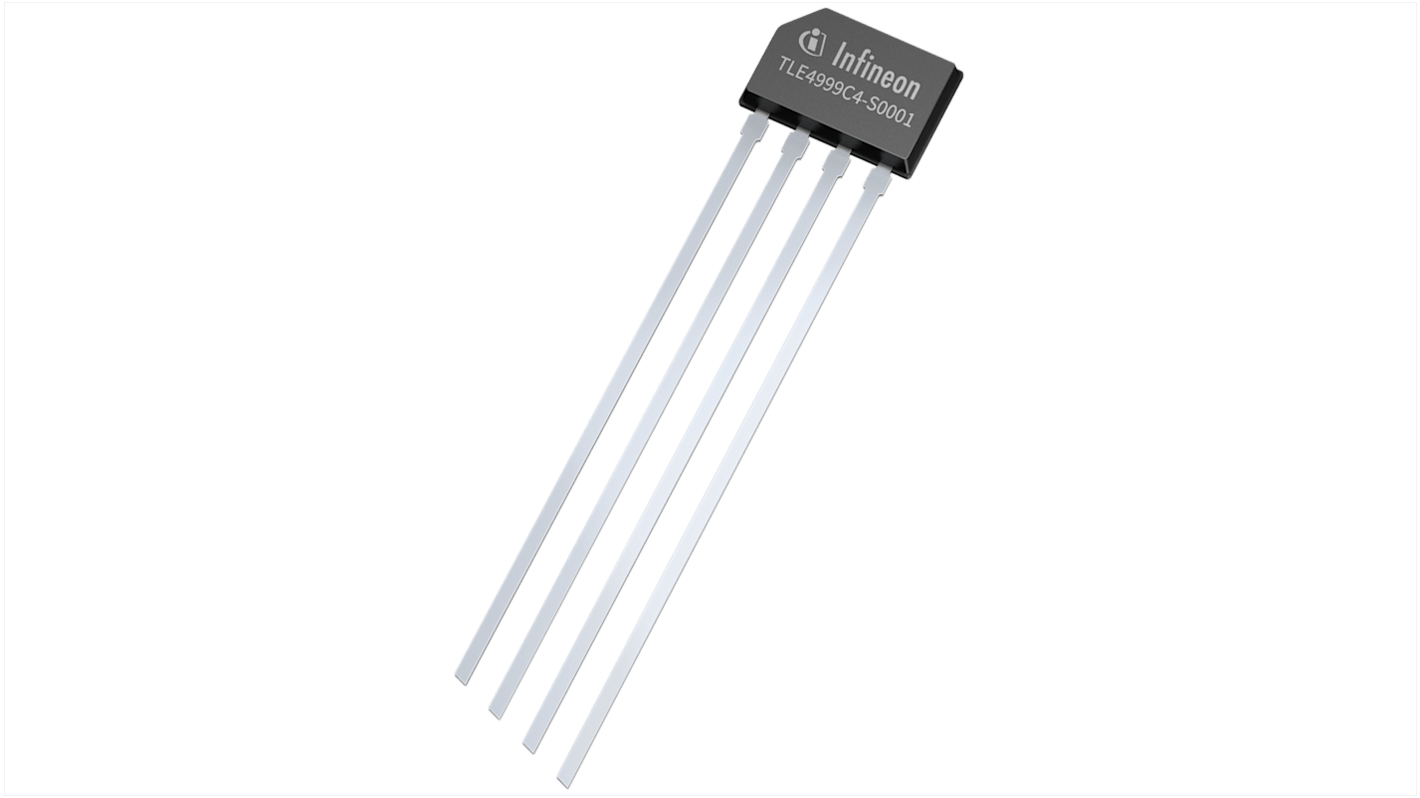

Infineon Hall Effect Sensor Cable, Rectangular Body 20V

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Hall Effect Sensors 열람하기
대량 구매 할인 기용 가능
View bulk pricing options

Subtotal (1 reel of 2000 units)*

₩7,840,000.00

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2027년 2월 01일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량
한팩당
릴당*
2000 - 2000₩3,920.00₩7,842,000.00
4000 - 4000₩3,842.00₩7,685,200.00
6000 +₩3,766.00₩7,531,200.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
253-9862
제조사 부품 번호:
TLE4999C4S0001HALA1
제조업체:
Infineon
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Infineon

Product Type

Hall Effect Sensor

Body Style

Rectangular

Terminal Type

Screw

Mount Type

Cable

Maximum AC Voltage

32V ac

Maximum Supply Voltage

20V

Minimum Operating Temperature

-10°C

Standards/Approvals

RoHS, AEC Qualified

Series

TLE

Maximum Operating Temperature

70°C

The Infineon TLE series is a Dual channel linear Hall sensor with a bus-capable digital Short-PWM-code interface. Both channels are integrated on one die in the chip. The sensor is developed in compliance to ISO 26262. Highest accuracy over a wide temperature range and lifetime is achieved by an integrated digital temperature- and stress-compensation.

Two highly accurate redundant hall measurement channels integrated on one chip

Operating automotive temperature range -40°C to 150°C

Digital temperature and stress compensation

Reverse-polarity and over voltage protection for VDD, GND and OUT pins

Main and sub channel programmable independently in EEPROM

Multipoint calibration up to 9 points

2 x 16 bit user-configurable ID in EEPROM

Digital temperature and stress compensation

Reverse-polarity and over voltage protection for VDD, GND and OUT pins

Multipoint calibration up to 9 points
