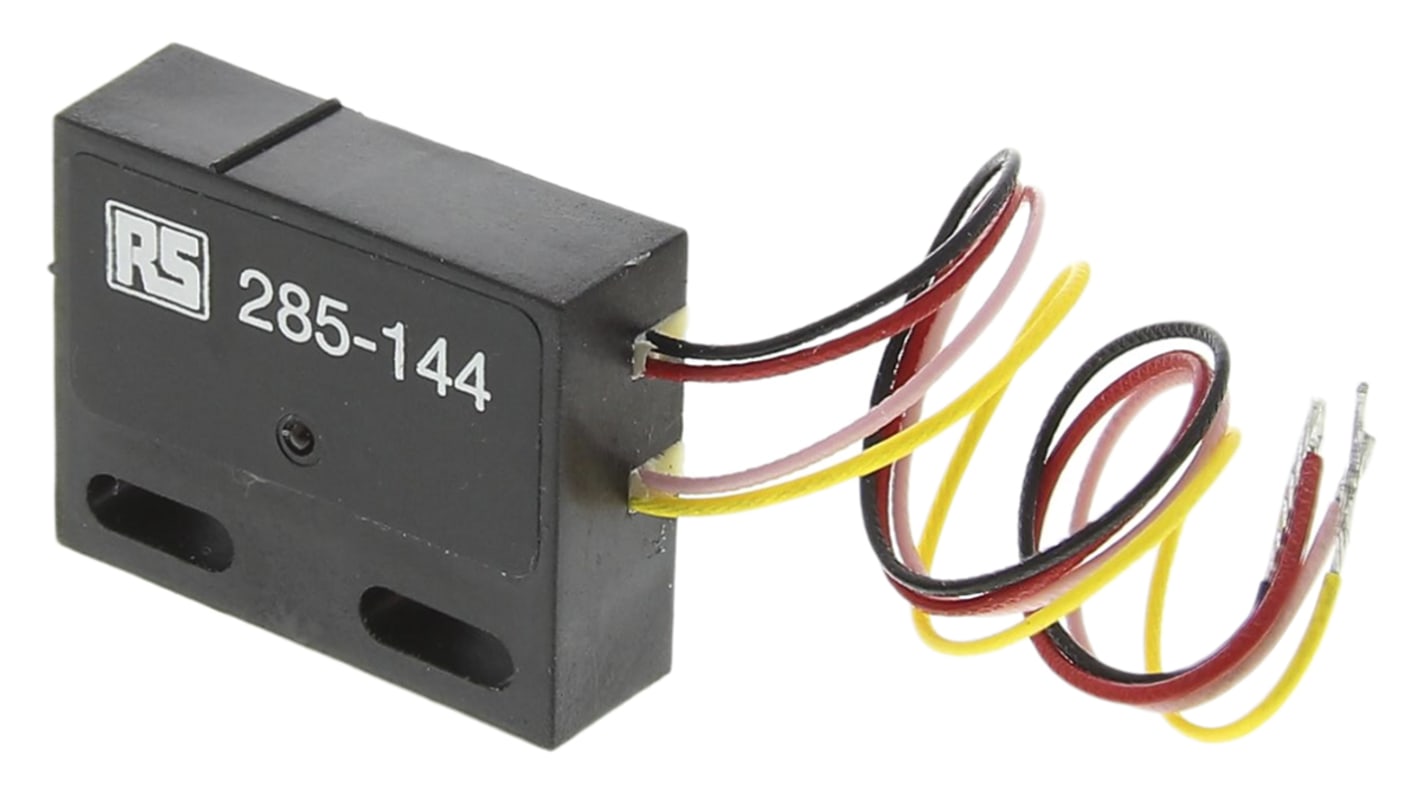

RS PRO Hall Effect Sensor, Open Collector PNP + NPN Output, Block Body, 24 V dc 24V dc
- RS 제품 번호:
- 285-144
- 제조업체:
- RS PRO
Subtotal (1 unit)*
₩42,240.00
재고있음
- 23 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩42,240.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 285-144
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Output Type | Open Collector PNP + NPN | |
| Product Type | Hall Effect Sensor | |
| Body Style | Block | |
| Terminal Type | Wire | |
| Maximum DC Voltage | 24V dc | |
| Switching Current | 250mA | |
| Maximum Supply Voltage | 24V dc | |
| Minimum Operating Temperature | -10°C | |
| Length | 32mm | |
| Width | 24mm | |
| Depth | 10mm | |
| Standards/Approvals | RoHS | |
| Maximum Operating Temperature | 60°C | |
| IP Rating | IP65 | |
| Housing Material | ABS | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Output Type Open Collector PNP + NPN | ||
Product Type Hall Effect Sensor | ||
Body Style Block | ||
Terminal Type Wire | ||
Maximum DC Voltage 24V dc | ||
Switching Current 250mA | ||
Maximum Supply Voltage 24V dc | ||
Minimum Operating Temperature -10°C | ||
Length 32mm | ||
Width 24mm | ||
Depth 10mm | ||
Standards/Approvals RoHS | ||
Maximum Operating Temperature 60°C | ||
IP Rating IP65 | ||
Housing Material ABS | ||
- COO (Country of Origin):
- GB
Rectangular
ABS housing
Open collector PNP + NPN Output
Normally open contact with bounce free operation
LED indication of alignment and diagnosis
Specified magnet assembly must be used with this sensor
Sealed to IP65
Cable length 145mm
Dimensions 32 x 24 x 10 mm
Note
For suitable magnet see Stock No 285-245
