- RS 제품 번호:
- 923-1626
- 제조사 부품 번호:
- FT800Q-R
- 제조업체:
- FTDI Chip
본 제품은 백오더/선주문 진행으로는 불가한 상황입니다.
죄송합니다만, 본 제품에 대한 재고가 없으며, 현재는 백오더/선주문 진행이 불가합니다.
추가완료!
단가 개당가격(2500개가 1릴안에)
₩6,078.548
수량 | 한팩당 | Per Reel* |
2500 - 10000 | ₩6,078.548 | ₩15,197,662.675 |
12500 + | ₩5,957.805 | ₩14,893,649.05 |
*다른 단위에 대한 가격 표시 |
- RS 제품 번호:
- 923-1626
- 제조사 부품 번호:
- FT800Q-R
- 제조업체:
- FTDI Chip
제정법과 컴플라이언스
- COO (Country of Origin):
- TW
제품 세부 사항

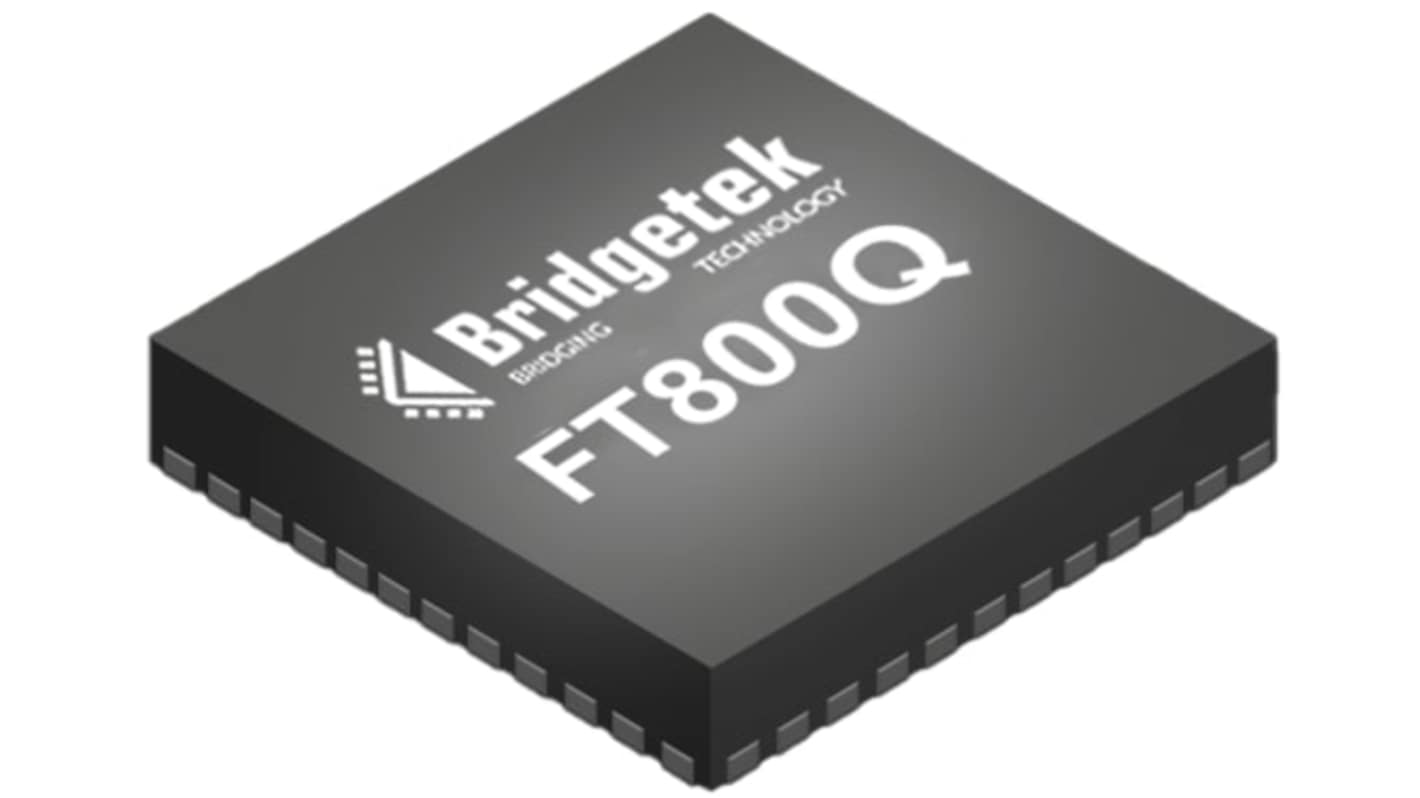

Embedded Video Engine (EVE) FT800
The FT800 Embedded Video Engine (EVE) is a great and easy to use graphic controller. EVEs approach eliminates the traditional frame buffer memory as it renders an image on a line by line basis, to 1/16th pixel resolution. EVE also comes preloaded with a useful set of fonts and sounds in ROM, making it applicable for any application. Its targeted for embedded applications to produce high quality Human Machine Interfaces (HMIs). These LCD controllers have many applications, some of these include thermostats, medical appliances, instrumentation, home security systems, graphic touch pads and many more. The FT800 also has a 3 in 1 functionality that includes display, audio and touch operations. Dithering hardware also allows the chip to provide 24-bit (true colour) support on an 18-bit interface.
Key features –
3 In 1 – Graphic controller, audio processing and resistive touch controller
Built in graphics operations to allow users to create high-quality displays
Built in sound synthesizer
No frame buffer RAM required
Display enabled control output to LCD panel
Power mode control allows chip to power down, sleep and standby
Supports host interface I/O voltage from 1.8V to 3.3V
Mono audio channel output with PVM output
Anti-aliasing support
PWM output for programmable display brightness
3 In 1 – Graphic controller, audio processing and resistive touch controller
Built in graphics operations to allow users to create high-quality displays
Built in sound synthesizer
No frame buffer RAM required
Display enabled control output to LCD panel
Power mode control allows chip to power down, sleep and standby
Supports host interface I/O voltage from 1.8V to 3.3V
Mono audio channel output with PVM output
Anti-aliasing support
PWM output for programmable display brightness
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
---|---|
Mounting Type | Surface Mount |
Package Type | QFN |
Pin Count | 48 |
