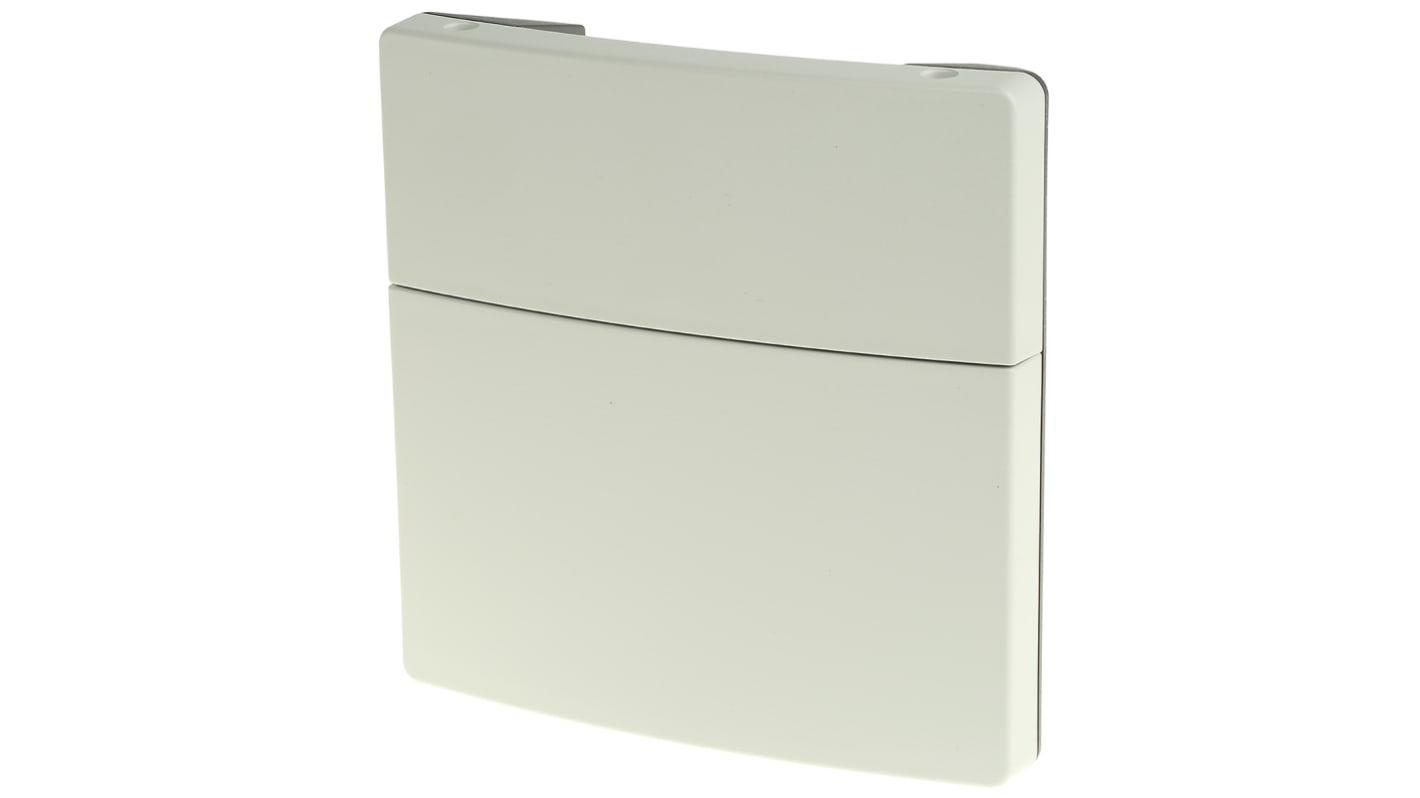

OKW NET-BOX Series Grey Grey Lid Polycarbonate Enclosure, IP65 46.5 mm, 140 mm, 140 mm
- RS 제품 번호:
- 819-4018
- 제조사 부품 번호:
- B3214101 + B3314151
- 제조업체:
- OKW
Subtotal (1 unit)*
₩96,442.00
일시적 품절
- 2026년 11월 02일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩96,442.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 819-4018
- 제조사 부품 번호:
- B3214101 + B3314151
- 제조업체:
- OKW
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | OKW | |
| Product Type | Enclosure | |
| Body Material | Polycarbonate | |
| External Height | 46.5mm | |
| External Width | 140mm | |
| External Length | 140mm | |
| IP Rating | IP65 | |
| Lid Colour | Grey | |
| Colour | Grey | |
| Hazardous Area Certification | No | |
| Shielding | No | |
| Series | NET-BOX | |
| Standards/Approvals | RoHS Compliant | |
| 모두 선택 | ||
|---|---|---|
브랜드 OKW | ||
Product Type Enclosure | ||
Body Material Polycarbonate | ||
External Height 46.5mm | ||
External Width 140mm | ||
External Length 140mm | ||
IP Rating IP65 | ||
Lid Colour Grey | ||
Colour Grey | ||
Hazardous Area Certification No | ||
Shielding No | ||
Series NET-BOX | ||
Standards/Approvals RoHS Compliant | ||
- COO (Country of Origin):
- DE
NET-BOX Wall Mounted Enclosure
The OKW NET-BOX is a sleek new range of wall mounted enclosures for data and control electronics. These advanced contoured enclosures consist of a base section, front cover and lid. They are assembled using Torx T10 security screws. A unique feature of these ABS enclosures is the inset connector mounting face. This allows unsightly connections and cables to be hidden under the front lid of the enclosure for a professional installation.
It is ideal for central control units, data acquisition systems, data systems engineering, measuring and control technology, supervision terminals and access control, medical and wellness technology.
Stylish curved top section which can be fitted with LEDs, displays and switches
Inset panel on the underside provides discreet mounting for connections (RJ45, RS232, HDMI, USB, power inlets, etc)
Connectors and cables are hidden under the front lid
Simple 3 part assembly - bottom part, front cover and front lid
No visible fixing screws on the front, just two on the underside of the lid
Screw pillars in the bottom part for mounting PCBs and assemblies
3 point wall mounting system, the main electronics section stays closed, only the front lid has to be refitted after installation
Moulded in flame retardant material and can be sealed to IP65 for outdoor applications
Top cover and lid are light grey, RAL 7035
Supplied with
anti-tamper Torx T10 assembly screws and IP65 sealing kit.
