- RS 제품 번호:
- 818-0448
- 제조사 부품 번호:
- 1554RGY
- 제조업체:
- Hammond
일시 품절-다음 입고 날짜는 14/05/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당
₩38,879.246
수량 | 한팩당 |
1 - 14 | ₩38,879.246 |
15 - 24 | ₩37,706.314 |
25 + | ₩36,550.631 |
- RS 제품 번호:
- 818-0448
- 제조사 부품 번호:
- 1554RGY
- 제조업체:
- Hammond
제정법과 컴플라이언스
- COO (Country of Origin):
- CA
제품 세부 사항

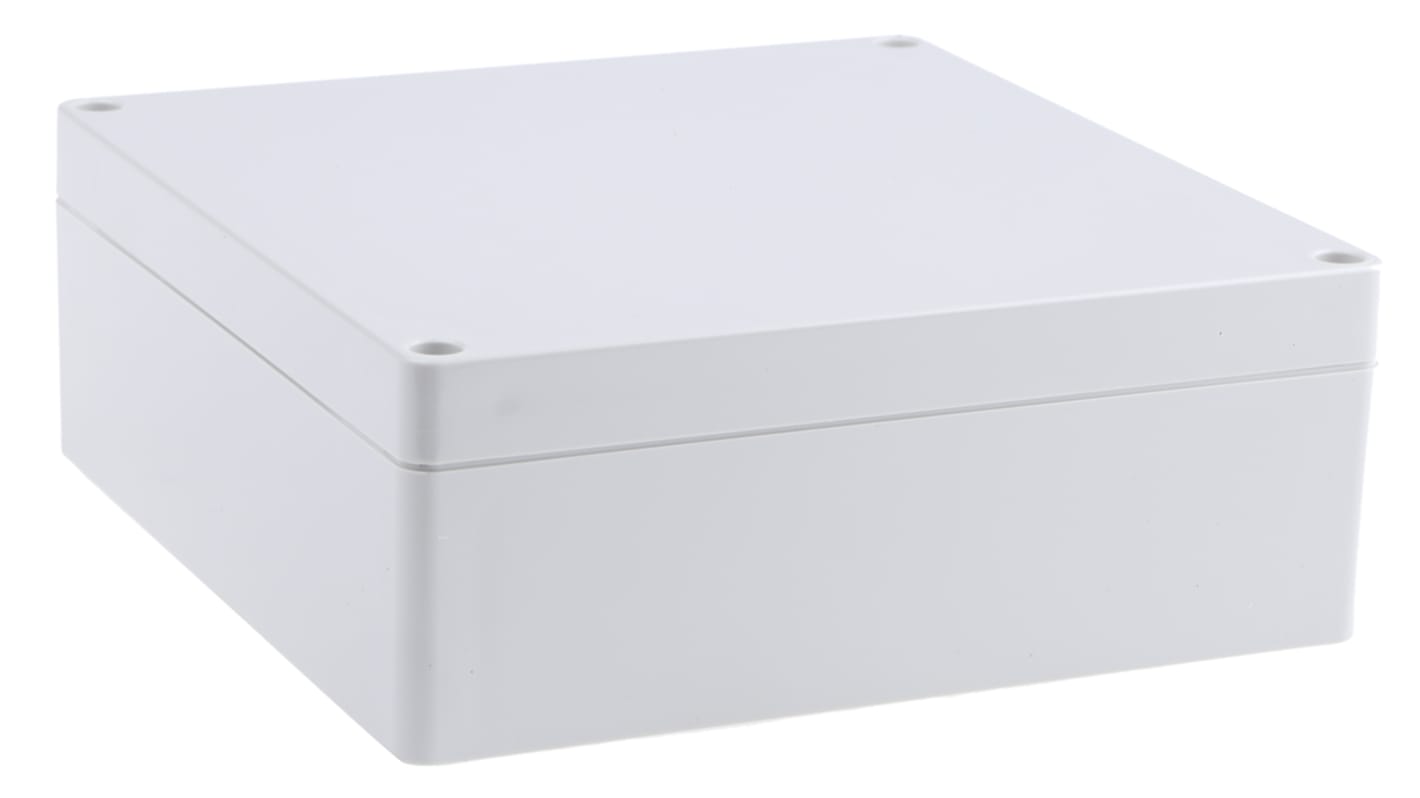

Hammond Enclosure, 160 (L) x 160 (W) x 61mm (H), Corrosion-Resistant, Light Grey - 1554 Series - 1554RGY
Keep your electronic goods dry and protected with this Hammond enclosure. It's designed to safeguard small electrical components and circuit boards from dust and high-pressure water jets – an IP66 rating proves its credentials. Internal DIN rail mounting tabs make it a breeze to securely assemble control devices like circuit breakers inside the box. As it's made from tough ABS plastic, you can rely on it to withstand rough handling and impact. This material also resists the corrosive effects of chemicals and moisture for longevity in harsh settings.
Features & Benefits
Comes with M4 stainless steel machine screws to securely close your box
Includes vertical PC card guides to make component mounting simple
Corrosion-resistant bushings hold up to repetitive removal and replacement of the lid
Includes vertical PC card guides to make component mounting simple
Corrosion-resistant bushings hold up to repetitive removal and replacement of the lid
Applications
Industrial automation
Oil refineries
Security systems
Packaging warehouses
Oil refineries
Security systems
Packaging warehouses
Does this enclosure come with a gasket?
Yes, the product is supplied with a gasket. It comes loose inside the box, so you have the option to use it or not, depending on your environment. As the gasket's replaceable (253-9552), there's no need to buy a new enclosure if the seal wears out.
사양
속성 | 값 |
---|---|
Body Material | ABS |
External Length | 160 mm |
External Height | 60.5 mm |
External Width | 160 mm |
External Dimensions | 160 x 160 x 60.5mm |
Range | 1554 |
IP Rating | IP66 |
Colour | Grey |
Lid Colour | Grey |
Flanged | No |
Shielded | No |
Series | 1554 |
Weight | 330g |
Transparent Door | No |
RAL Code | RAL 7035 |
Explosion Proof | No |
Gasket Material | Silicone |
