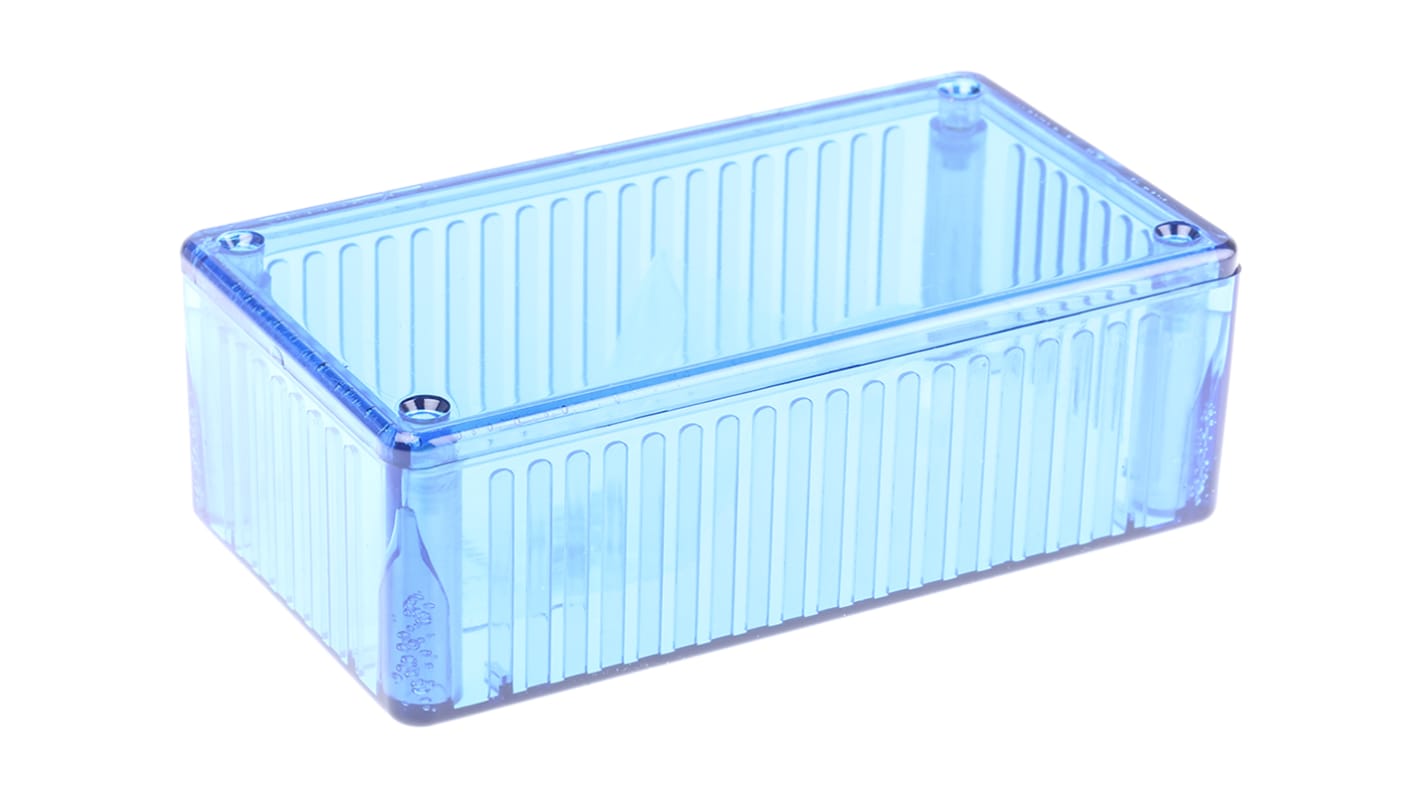

Hammond 1591 Series Transparent Blue Polycarbonate Enclosure, IP54, 36 mm x 120 mm x 65 mm
- RS 제품 번호:
- 415-2767
- Distrelec 제품 번호:
- 150-23-528
- 제조사 부품 번호:
- 1591CTBU
- 제조업체:
- Hammond
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 unit)*
₩20,500.00
재고있음
- 25 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 99 | ₩20,500.00 |
| 100 - 499 | ₩19,680.00 |
| 500 + | ₩18,840.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 415-2767
- Distrelec 제품 번호:
- 150-23-528
- 제조사 부품 번호:
- 1591CTBU
- 제조업체:
- Hammond
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Hammond | |
| Product Type | Enclosure | |
| Body Material | Polycarbonate | |
| External Height | 36mm | |
| External Length | 120mm | |
| External Width | 65mm | |
| IP Rating | IP54 | |
| Colour | Transparent Blue | |
| Flanged | No | |
| Shielding | Unshielded | |
| Hazardous Area Certification | No | |
| Internal Mount Type | Vertical | |
| Series | 1591 | |
| Number of Knockouts | 0 | |
| Standards/Approvals | RoHS | |
| Weight | 89g | |
| Transparent Door | Yes | |
| Explosion Proof | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Hammond | ||
Product Type Enclosure | ||
Body Material Polycarbonate | ||
External Height 36mm | ||
External Length 120mm | ||
External Width 65mm | ||
IP Rating IP54 | ||
Colour Transparent Blue | ||
Flanged No | ||
Shielding Unshielded | ||
Hazardous Area Certification No | ||
Internal Mount Type Vertical | ||
Series 1591 | ||
Number of Knockouts 0 | ||
Standards/Approvals RoHS | ||
Weight 89g | ||
Transparent Door Yes | ||
Explosion Proof No | ||
- COO (Country of Origin):
- CA
Hammond Enclosure, 120 (L) x 65 (W) x 40mm (H), Translucent Body, 2 x PC Board Standoffs - 1591 Series - 1591CTBU
Safely house your sensitive electronic devices in this enclosure from Hammond. It has multiple moulded card guides that let you slot in and secure 1.5mm PCBs, so mounting takes just a jiffy. Its durable polycarbonate housing has self-extinguishing properties to help keep flames at bay in the event of a fire. As the box's translucent body is almost totally transparent to blue, white and almost white LEDs, you'll find it's just the right fit for keeping a close eye on your signals and indicators.
Features & Benefits
• Lap-joint construction between the body and lid achieves an IP54 rating, indicating protection from water splashes and against limited dust
• Broad external dimensions of 120 (L) x 65mm (W) x 40mm (H) offer sufficient space for multiple electrical components
• Smooth satin texture finish helps prevent scratches and mechanical wear
Applications
• Assembly plants
• Packaging facilities
• Electrical engineering
How do I fasten the lid to this enclosure?
To fasten the lid of this enclosure, drive the supplied M3x10mm Philips machine screws through the pre-drilled holes and into the integral brass bushings.
