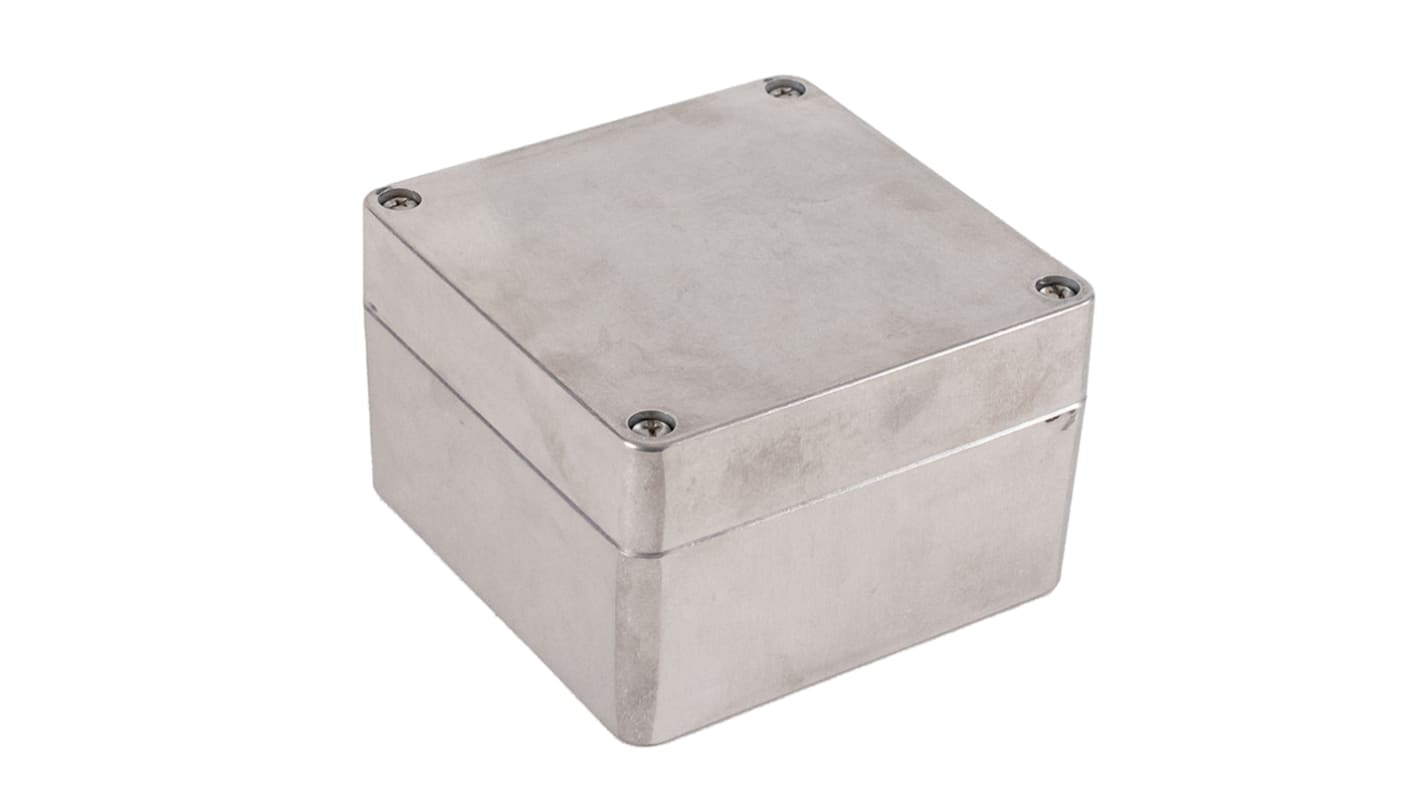

Hammond 1590Z Series Clear Die Cast Aluminium General Purpose Enclosure, IP68, IK08 91 mm, 140 mm, 140 mm
- RS 제품 번호:
- 234-5969
- Distrelec 제품 번호:
- 302-32-177
- 제조사 부품 번호:
- 1590Z090
- 제조업체:
- Hammond
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩96,642.00
재고있음
- 3 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩96,642.00 |
| 5 - 9 | ₩93,736.50 |
| 10 - 14 | ₩90,928.50 |
| 15 - 19 | ₩88,998.00 |
| 20 + | ₩87,262.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 234-5969
- Distrelec 제품 번호:
- 302-32-177
- 제조사 부품 번호:
- 1590Z090
- 제조업체:
- Hammond
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Hammond | |
| Product Type | General Purpose Enclosure | |
| Body Material | Die Cast Aluminium | |
| External Height | 91mm | |
| External Width | 140mm | |
| External Length | 140mm | |
| IP Rating | IP68 | |
| Colour | Clear | |
| Lid Colour | Natural | |
| Hazardous Area Certification | No | |
| Series | 1590Z | |
| Standards/Approvals | cULus, NEMA, RoHS | |
| IK Rating | IK08 | |
| Gasket Material | Silicone | |
| 모두 선택 | ||
|---|---|---|
브랜드 Hammond | ||
Product Type General Purpose Enclosure | ||
Body Material Die Cast Aluminium | ||
External Height 91mm | ||
External Width 140mm | ||
External Length 140mm | ||
IP Rating IP68 | ||
Colour Clear | ||
Lid Colour Natural | ||
Hazardous Area Certification No | ||
Series 1590Z | ||
Standards/Approvals cULus, NEMA, RoHS | ||
IK Rating IK08 | ||
Gasket Material Silicone | ||
- COO (Country of Origin):
- IN
The Hammond type 4X/ 6P die cast aluminium enclosures from 1590Z series are made from rugged, die cast aluminium alloy, tough yet easy to machine and are electronic instrument enclosure. It is in the form of two piece “tongue and groove” construction with a replaceable one piece silicone rubber gasket which provides protection against access of dust and water. Gasket is supplied loose inside the enclosure. It is easy to wall mount using “through box - blind hole” construction, outside of gasket protection.
Size L x W x H (in) 3.94 x 3.94 x 3.19
Total depth 3.15 in
Lid depth 0.79 in
Packaging type Bag
Material aluminium die-cast alloy
Colour natural
Internal mounting shelf Yes
Product category enclosures
Type thick wall, water-tight
