Rose Aluminium Standard Series Grey Grey Lid Aluminium Enclosure, IP66, IK09, 91 mm x 160 mm x 160 mm
- RS 제품 번호:
- 507-078
- 제조사 부품 번호:
- 01161609
- 제조업체:
- Rose
대량 구매 할인 받기
25개 더 담고 2% 할인 받기
View bulk pricing optionsSubtotal (1 unit)*
₩150,300.00
재고있음
- 추가로 2026년 11월 19일 부터 83 개 단위 배송
- 추가로 2027년 1월 08일 부터 35 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 절감 |
|---|---|---|
| 1 - 24 | ₩150,300.00 | - |
| 25 + | ₩147,260.00 | 2% |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 507-078
- 제조사 부품 번호:
- 01161609
- 제조업체:
- Rose
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Rose | |
| Body Material | Aluminium | |
| Product Type | Enclosure | |
| External Height | 91mm | |
| External Width | 160mm | |
| External Length | 160mm | |
| IP Rating | IP66 | |
| Lid Colour | Grey | |
| Colour | Grey | |
| Flanged | No | |
| Hazardous Area Certification | Maritime, UL | |
| Shielding | Unshielded | |
| Series | Aluminium Standard | |
| Number of Knockouts | 0 | |
| Standards/Approvals | UL508 | |
| Weight | 1.5kg | |
| IK Rating | IK09 | |
| Transparent Door | No | |
| Gasket Material | PUR | |
| 모두 선택 | ||
|---|---|---|
브랜드 Rose | ||
Body Material Aluminium | ||
Product Type Enclosure | ||
External Height 91mm | ||
External Width 160mm | ||
External Length 160mm | ||
IP Rating IP66 | ||
Lid Colour Grey | ||
Colour Grey | ||
Flanged No | ||
Hazardous Area Certification Maritime, UL | ||
Shielding Unshielded | ||
Series Aluminium Standard | ||
Number of Knockouts 0 | ||
Standards/Approvals UL508 | ||
Weight 1.5kg | ||
IK Rating IK09 | ||
Transparent Door No | ||
Gasket Material PUR | ||
- COO (Country of Origin):
- DE

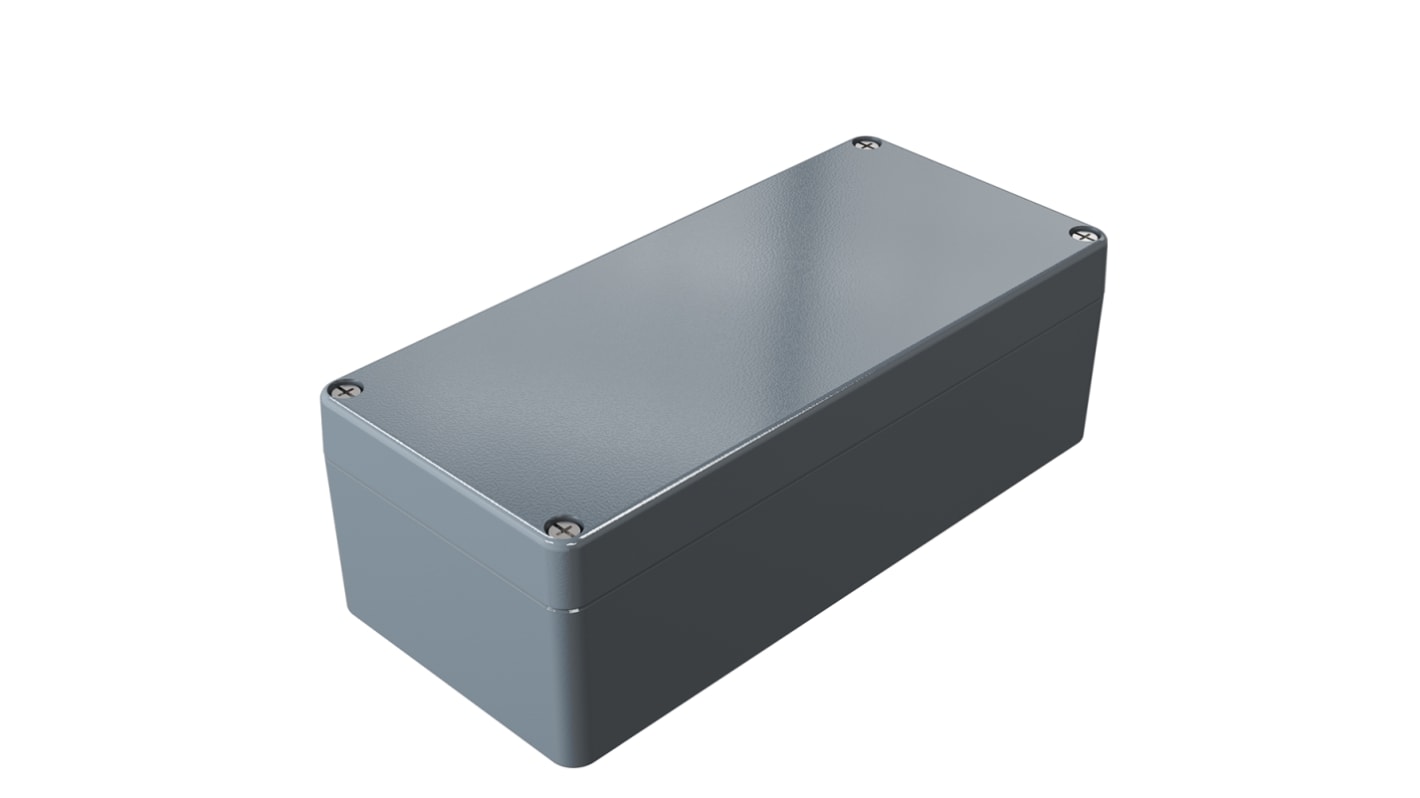

ROSE Grey Die-Cast Aluminium Enclosure, 160mm Height, 160mm Width - Aluminium Standard Series - 01161609
House and protect your sensitive electrical components with this robust enclosure from ROSE. This device has an IP66 (ingress protection) rating, which means it's protected against dust and high-pressure water jets for use in harsh indoor and outdoor environments. To prevent tampering, it comes with a protective cover that you can secure in place using the supplied captive screws. This enclosure is designed for installation on a DIN rail or a mounting plate, making it a versatile choice.
Features & Benefits
• Wide operating temperature range of -40°C to +90°C for use in demanding conditions
• Compact external dimensions of 160 (height) x 160 (width) x 91mm (depth) for storing small components
• Polyurethane (PU) gasket keeps contaminants out for enhanced electrical safety
• Complies with UL 508A standards for industrial control panels
Applications
• Cable and wire management
• Medical facilities
• Mechanical workshops
What material is this enclosure made of?
This enclosure is made of a robust die-cast aluminium material that's resistant to corrosion and impact. This makes it a long-lasting choice for use in harsh industrial environments.
