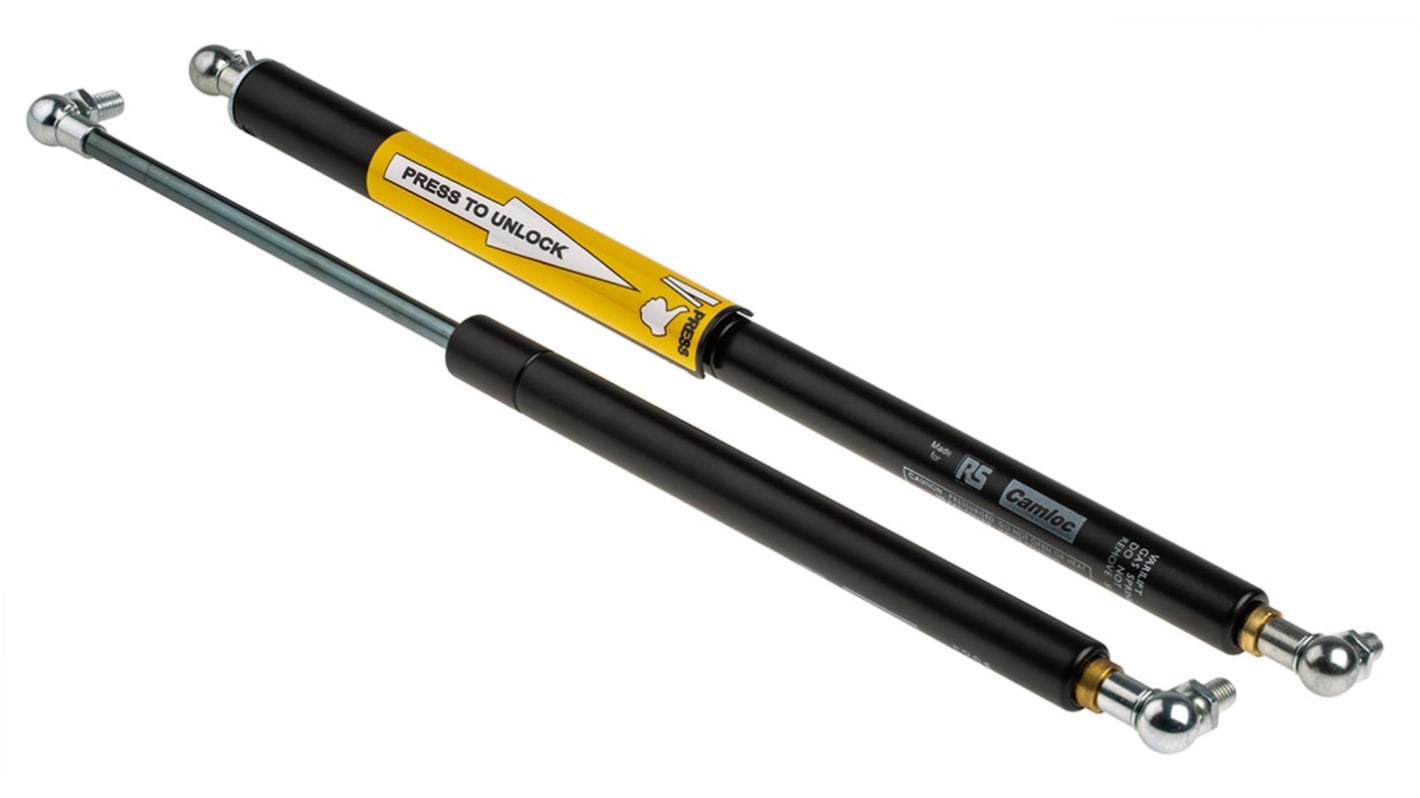

Camloc Gas Springs Steel Gas Strut, with Ball & Socket Joint, 364 mm Extended Length, 150 mm Stroke Length

모든 Gas Struts 열람하기

Subtotal (1 pair)*

₩142,240.80

Add to Basket
수량 선택 또는 입력
재고있음
  • 17 개 단위 배송 준비 완료
  • 추가로 2026년 3월 13일 부터 20 개 단위 배송
  • 추가로 2026년 4월 10일 부터 40 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
Pair(s)
Per Pair
1 +₩142,240.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
202-2490
제조사 부품 번호:
SWV8ECV800002
제조업체:
Camloc Gas Springs
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Camloc Gas Springs

Product Type

Gas Strut

Rod Connection Thread

M6 x 1

Cylinder Material

Steel

End Connector Material

Nylon, Steel

End Connector Type

Ball & Socket Joint

Extended Length

364mm

Stroke Length

150mm

Rod Diameter

8mm

Piston Diameter

18mm

Maximum Force

650N

Minimum Force

100N

Standards/Approvals

No

제외

COO (Country of Origin):
GB

Camloc Gas Springs, Steel Gas Strut with Ball & Socket Joint, 150mm Stroke Length, Econoloc, SWV8ECV800002


This steel gas strut by Camloc Gas Springs boasts a solid steel construction ensuring durability in demanding applications. With a stroke length of 150mm, it provides precise control in various mechanical setups. The inclusion of a nylon and steel end connector enhances versatility, while the full extension lock feature guarantees safety in critical lift-assist operations. Whether it's trucks, construction machinery, or agricultural equipment, this gas strut is engineered to meet the highest standards.

Features & Benefits


• Full extension lock ensures secure operation, eliminating the need for separate safety rods

• Equipped with a ball & socket joint made of nylon and steel for enhanced flexibility

• Designed with an 8mm rod diameter and 18mm tube diameter providing reliable performance

• Delivers a powerful force range from 100N to 650N catering to a variety of applications

• Steel construction ensures durability and resilience in challenging environments

• Operates automatically reducing the need for frequent interventions

• Supplied with Vari-Lift™ valve, pre-fitted ball joint end fittings and an allen key for convenient installation

Applications


• Ideal for heavy-duty applications in trucks, construction machinery, switch gear and agricultural equipment.

• Ensures safety in critical lift-assist operation hence eliminating the need for separate safety rods

• Suitable for use in conjunction with a standard Swift & Sure version enhancing its versatility

How does the Full Extension Lock feature enhance safety in critical lift-assist operations?


The Full Extension Lock automatically engages, eliminating the need for separate safety rods and ensuring secure operation.

What is the force range of this, and how is it adjusted?


This gas strut offers a force range from 100N to 650N, and the force can be adjusted using the supplied Allen key and Vari-Lift™ valve.

In what industries is this commonly utilised?


This gas strut finds extensive applications in trucks, construction machinery, switch gear, and agricultural equipment due to its robust design and advanced safety features.

Does the package include all necessary components for installation?


Yes, the comprehensive package includes Vari-Lift™ valve, pre-fitted ball joint end fittings, and an Allen key, ensuring a hassle-free installation process.

Approvals

Size 2 Econoloc
