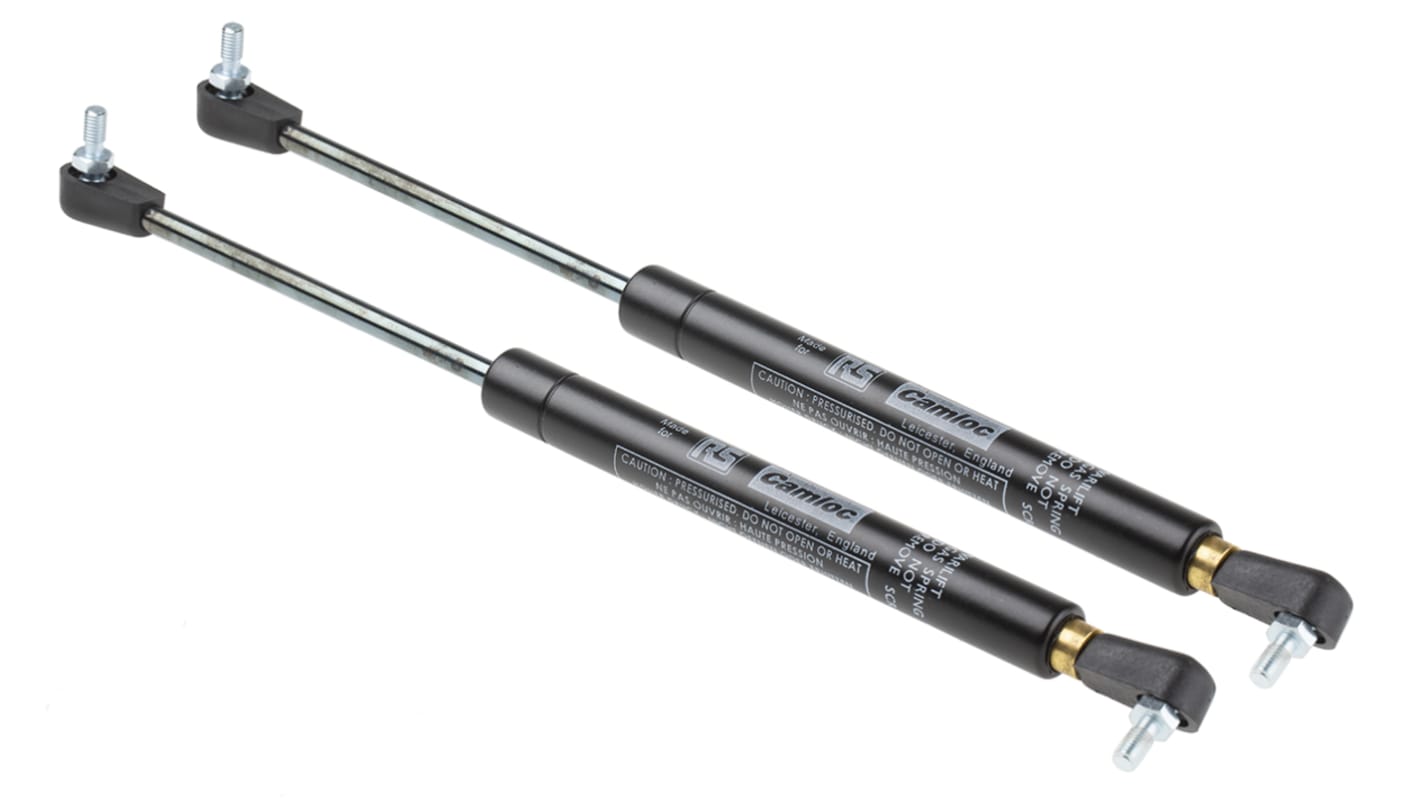

Camloc Gas Springs Steel Gas Strut, with Ball & Socket Joint, 240 mm Extended Length, 100 mm Stroke Length
- RS 제품 번호:
- 686-941
- 제조사 부품 번호:
- SWV6050500035
- 제조업체:
- Camloc Gas Springs
Subtotal (1 pair)*
₩100,373.20
재고있음
- 추가로 2026년 2월 23일 부터 229 개 단위 배송
- 추가로 2026년 4월 10일 부터 150 개 단위 배송
- 추가로 2026년 4월 17일 부터 2 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
Pair(s) | Per Pair |
|---|---|
| 1 + | ₩100,373.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 686-941
- 제조사 부품 번호:
- SWV6050500035
- 제조업체:
- Camloc Gas Springs
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Camloc Gas Springs | |
| Product Type | Gas Strut | |
| Cylinder Material | Steel | |
| Rod Connection Thread | M5 x 0.8 | |
| End Connector Material | Steel, Nylon | |
| End Connector Type | Ball & Socket Joint | |
| Extended Length | 240mm | |
| Stroke Length | 100mm | |
| Rod Diameter | 6mm | |
| Maximum Force | 400N | |
| Piston Diameter | 15mm | |
| Minimum Force | 50N | |
| Standards/Approvals | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Camloc Gas Springs | ||
Product Type Gas Strut | ||
Cylinder Material Steel | ||
Rod Connection Thread M5 x 0.8 | ||
End Connector Material Steel, Nylon | ||
End Connector Type Ball & Socket Joint | ||
Extended Length 240mm | ||
Stroke Length 100mm | ||
Rod Diameter 6mm | ||
Maximum Force 400N | ||
Piston Diameter 15mm | ||
Minimum Force 50N | ||
Standards/Approvals No | ||
제외
- COO (Country of Origin):
- GB
Camloc Gas Springs, Steel Gas Strut, 6mm Rod, 100mm Stroke Length, Swift & Sure, SWV6050500035
This gas strut, by Camloc Gas Springs, is a versatile and reliable solution for various applications in automation, electronics, and mechanical systems. This self-contained, maintenance-free hydro-pneumatic ram boasts a unique design, ensuring controlled movement with a compression spring and a small change in force during extension. This Camloc gas strut is equipped with a ball & socket joint, nylon, and steel end connectors, providing flexibility and durability. With a stroke length of 100mm, it delivers precise performance, making it an ideal choice for applications like access panels, lids, covers, guards, bonnets, and hatch covers. The rod diameter is 6mm and the tube diameter is 15mm, making it suitable for a wide range of applications.
Features & Benefits
• Tailored to your application needs
• A self-contained unit requiring no regular maintenance
• Offers easy positional control for enhanced safety
• Customisable with fixed or adjust-yourself options
• Over 2,500 different combinations available
• Steel construction ensures durability
• Options include ball & socket joint, nylon and steel
• Ranges from 50N minimum to 400N maximum
• Controlled rate of movement with oil damping
Applications
• Ideal for automation and control systems
• Well-suited for various mechanical applications
• Perfect for use in electronic equipment
• Offers reliable support in fluid power systems
• Meets PPE and site safety requirements
How does this gas strut ensure safety in industrial applications?
This gas strut features Swift & Sure technology, providing a controlled rate of movement and oil damping for a secure end of travel, protecting hinges and mounts.
What sets this apart from other gas springs in the market?
Unlike traditional gas springs, this gas strut's design includes a ball & socket joint ensuring enhanced flexibility and durability in varied applications.
Is this suitable for use in electronic equipment?
This gas strut is an excellent choice for electronic systems offering reliable support and controlled movement.
Supplied with
Supplied with 2 x Swift & Sure Vari-Lift Gas Struts, 4 x Pre-fitted ball joint end fittings, 4 x optional eye end fittings, 1 x Allen Key for de-gassing 1 x instruction leaflet
