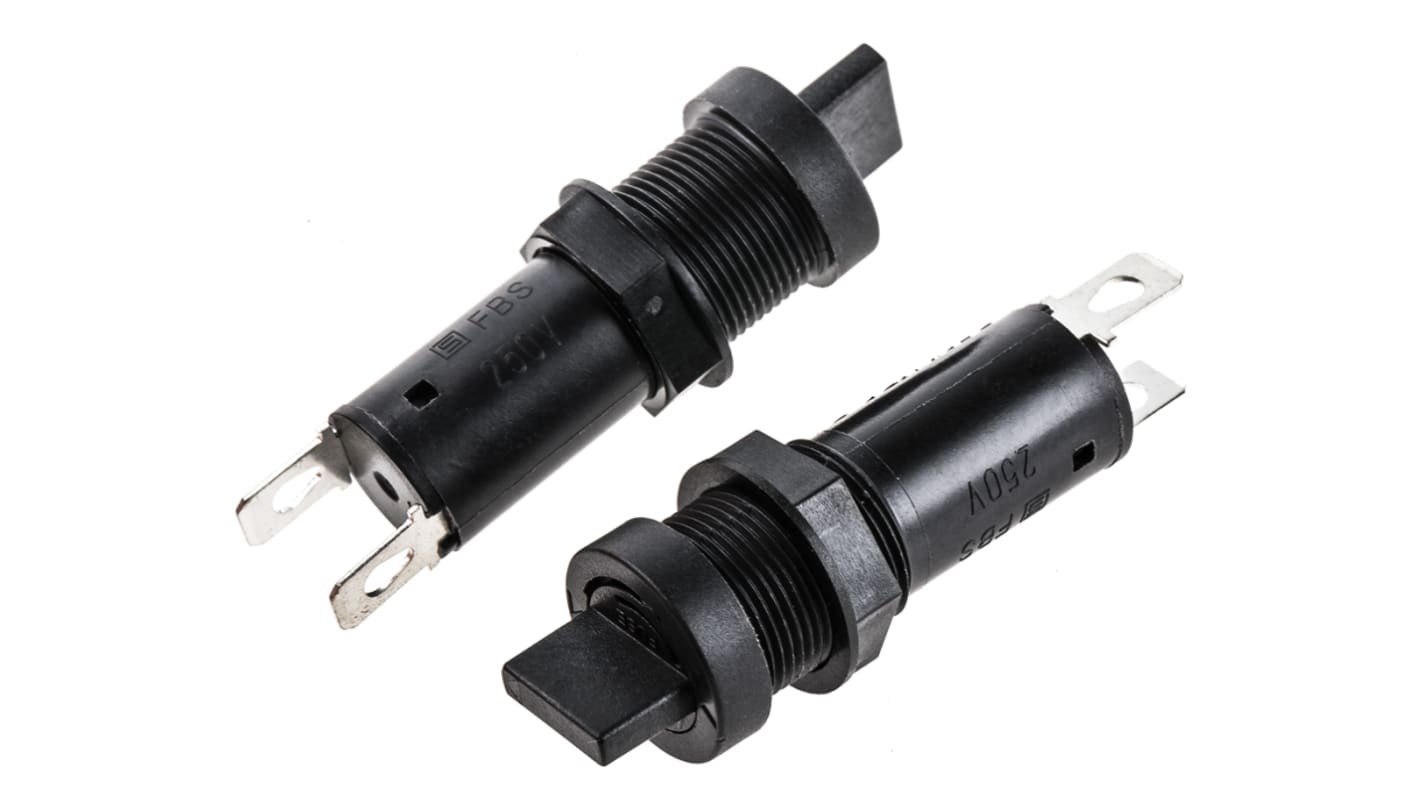

Schurter 10 A Panel Mount Fuse Holder, 1P-Pole for 5 x 20 mm, 250 V ac
- RS 제품 번호:
- 197-9503
- Distrelec 제품 번호:
- 304-38-743
- 제조사 부품 번호:
- 0031.3911
- 제조업체:
- Schurter
대량 구매 할인 기용 가능
Subtotal (1 pack of 5 units)*
₩35,362.80
재고있음
- 80 개 단위 배송 준비 완료
- 추가로 2026년 3월 23일 부터 465 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 5 - 45 | ₩7,072.56 | ₩35,362.80 |
| 50 - 245 | ₩6,862.00 | ₩34,310.00 |
| 250 - 495 | ₩6,651.44 | ₩33,257.20 |
| 500 - 1245 | ₩6,489.76 | ₩32,448.80 |
| 1250 + | ₩6,376.96 | ₩31,884.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 197-9503
- Distrelec 제품 번호:
- 304-38-743
- 제조사 부품 번호:
- 0031.3911
- 제조업체:
- Schurter
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Schurter | |
| Product Type | Panel Mount Fuse Holder | |
| Current Rating | 10 A | |
| Voltage | 250 V ac | |
| Number of Poles | 1 | |
| Body Material | Black, Thermoplastic | |
| IP Rating | IP40 | |
| Compatible Fuse Size | 5 x 20 mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | CSA 22.2 no. 4248.1, IEC 60127-6, UL 4248-1 | |
| Protection Category | PC3 | |
| Series | FBS | |
| Cap Style | Manual | |
| Contact Material | Tin Plated Copper | |
| 모두 선택 | ||
|---|---|---|
브랜드 Schurter | ||
Product Type Panel Mount Fuse Holder | ||
Current Rating 10 A | ||
Voltage 250 V ac | ||
Number of Poles 1 | ||
Body Material Black, Thermoplastic | ||
IP Rating IP40 | ||
Compatible Fuse Size 5 x 20 mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals CSA 22.2 no. 4248.1, IEC 60127-6, UL 4248-1 | ||
Protection Category PC3 | ||
Series FBS | ||
Cap Style Manual | ||
Contact Material Tin Plated Copper | ||
'SCHURTER' Bayonet Cap, FBS Series
Fully inaccessible as defined in BS EN 60127-6.
Retention of fuse carrier during fuse replacement
Low insertion resistance
Thermoplastic Body
Protection: PC3
Panel Mounting
CATEGORIES OF PROTECTION AGAINST ELECTRIC SHOCK,PC1: No integral protection against electric shock. If required, designers must provide additional protection against electric shock on equipment.,PC2: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 standard test finger, when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.,PC3: With integral protection against electric shock. Fuse-holders shall have live parts inaccessible to IEC529 1mm diameter rigid test wire when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.
Approvals
VDE, UL, CSA
