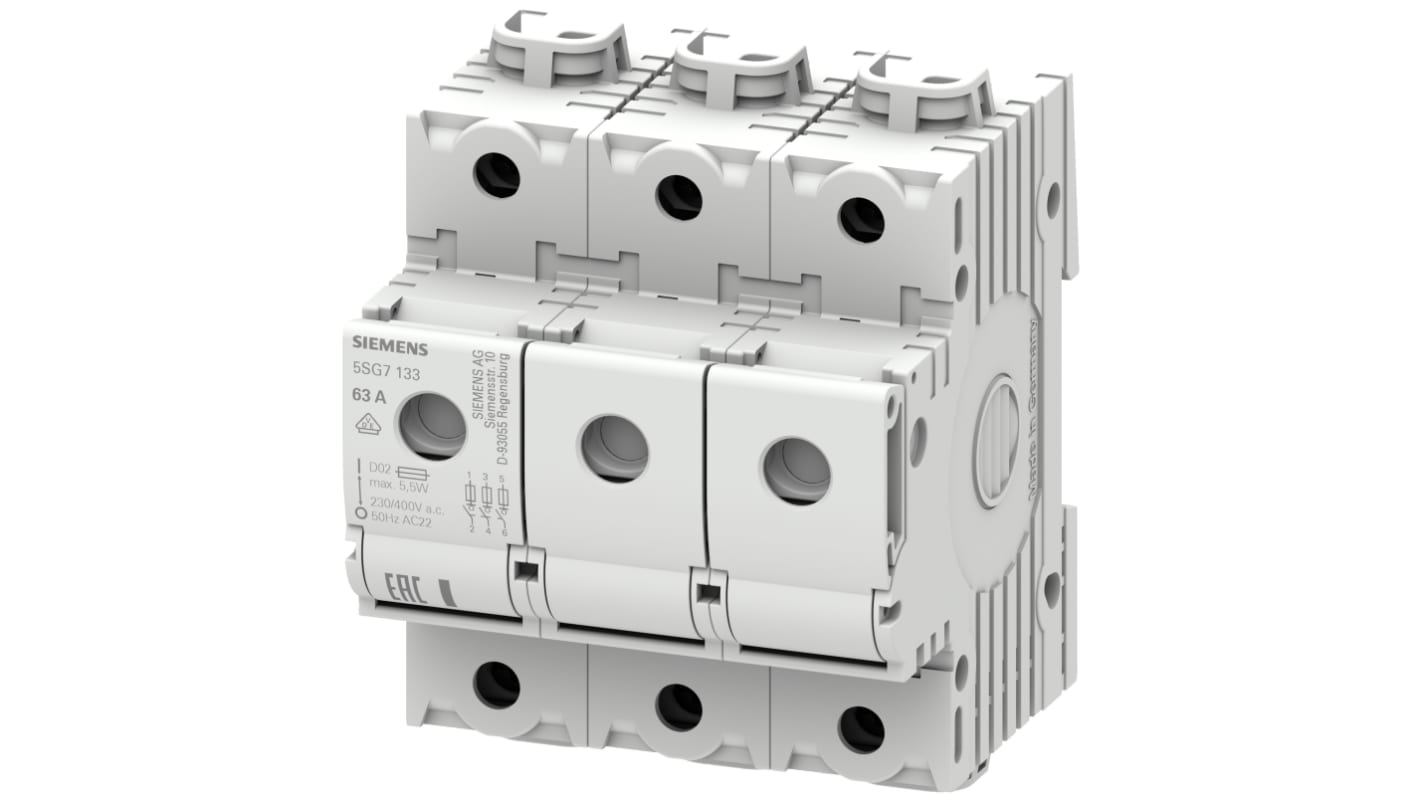

Siemens 63A Bottle Fuse Holder, 3P, 400V ac
- RS 제품 번호:
- 190-9735
- 제조사 부품 번호:
- 5SG7133
- 제조업체:
- Siemens
Subtotal (1 unit)*
₩162,808.00
재고있음
- 추가로 2026년 1월 05일 부터 1,268 개 단위 배송
- 추가로 2026년 1월 12일 부터 14 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩162,808.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 190-9735
- 제조사 부품 번호:
- 5SG7133
- 제조업체:
- Siemens
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Siemens | |
| Fuse Holder Type | Bottle Fuse | |
| Range | MINIZED | |
| Current Rating | 63A | |
| Voltage Rating | 400V ac | |
| Number of Poles | 3P | |
| Includes Indicator | No | |
| Standards Met | CE | |
| Compatible Fuse Length | 81mm | |
| International Protection Rating | IP20 | |
| Compatible Fuse Sizes | D02 | |
| Terminal Type | Screw | |
| 모두 선택 | ||
|---|---|---|
브랜드 Siemens | ||
Fuse Holder Type Bottle Fuse | ||
Range MINIZED | ||
Current Rating 63A | ||
Voltage Rating 400V ac | ||
Number of Poles 3P | ||
Includes Indicator No | ||
Standards Met CE | ||
Compatible Fuse Length 81mm | ||
International Protection Rating IP20 | ||
Compatible Fuse Sizes D02 | ||
Terminal Type Screw | ||
제외
- COO (Country of Origin):
- DE
Siemens Bottle Fuse Holder, 81mm Compatible Fuse Length, Screw Terminal - 5SG7133
This bottle fuse holder is designed to securely accommodate fuses within electrical applications. With a current rating of 63 A and a voltage rating of 400 Vac, this component provides safe and dependable performance in various settings. It is suitable for users seeking a reliable solution for fuse management in both industrial and commercial environments.
Features & Benefits
• Compatible with D02 fuse sizes for added versatility
• Secure screw terminal design allows for straightforward connections
• Three-pole configuration suitable for three-phase systems
• Thermal dissipation capacity of 7.5 W per pole during use
• CE certified, ensuring compliance with regulatory safety standards
• Secure screw terminal design allows for straightforward connections
• Three-pole configuration suitable for three-phase systems
• Thermal dissipation capacity of 7.5 W per pole during use
• CE certified, ensuring compliance with regulatory safety standards
Applications
• Utilised in automation systems for managing electrical circuits
• Effectively employed in electrical distribution boards
• Ideal for mechanical equipment demanding a three-phase supply
• Effectively employed in electrical distribution boards
• Ideal for mechanical equipment demanding a three-phase supply
What is the recommended installation orientation for best performance?
The holder can be mounted in any position
however, a vertical installation is preferred for optimal airflow and cooling.
What is the significance of the IP20 rating in this context?
The IP20 rating indicates protection against solid objects larger than 12.5 mm, making it suitable for use in controlled environments.
What connections can be utilised with this product?
It features screw terminals, allowing for a secure and adjustable connexion with a tightening torque ranging from 2.5 N·m to 3 N·m.
